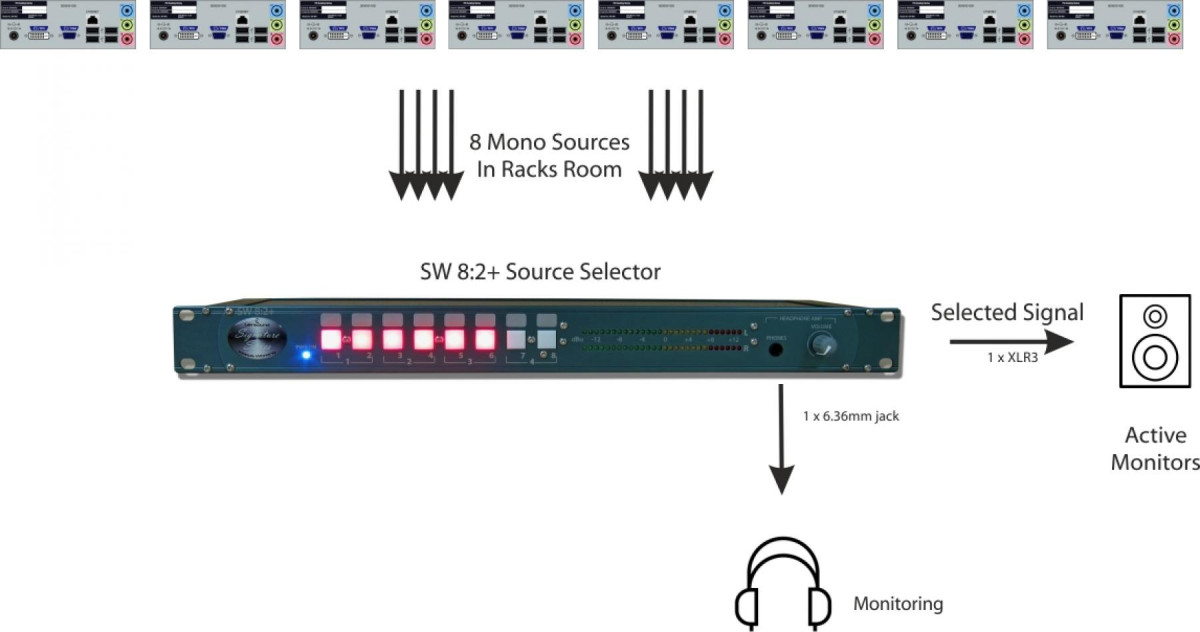

Signature SW 8:2+

8 Channel Source Selector/ Switch/ Mixer with PPM

• As Signature SW 8:2 with addition of stereo PPM
• 8 mono/ 4 stereo analogue audio switch
• Active unit with low noise circuits
• Can be used to select individual sources
• Can be used to mix multiple sources
• Large illuminated front panel select source switches
• All audio inputs/ outputs are balanced on XLRs
• Headphone monitor of output
• 19" rackmounted (removable racks ears)
• Mains powered (100 - 240 VAC)
• Backup DC power input

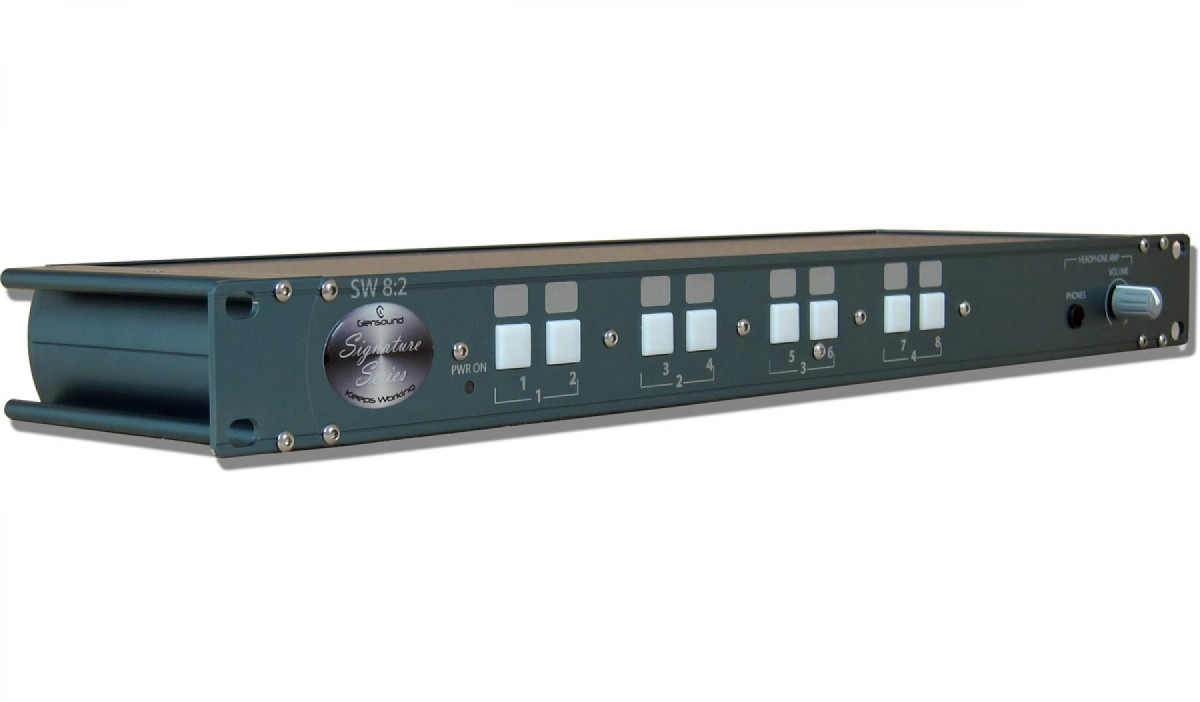

Signature SW 8:2

8 Channel Source Selector/ Switch/ Mixer

• 8 mono/ 4 stereo analogue audio switch
• Active unit with low noise circuits
• Can be used to select individual sources
• Can be used to mix multiple sources
• Large illuminated front panel select source switches
• All audio inputs/ outputs are balanced on XLRs
• Headphone monitor of output
• 19" rackmounted (removable racks ears)
• Mains powered (100 - 240 VAC)
• Backup DC power input

GS-SW008

Sixteen Off Two Into One Switches

• Mains powered 100 - 240 volts
• 19 inch 1RU subrack
• 2 x 16 balanced audio inputs
• 1 x 16 balanced audio output
• 16 off 2 pole 2 way relays
• Relays can be switched together or set in groups
• Gold plated relay contacts
• Relays can be activated from an external high or low or a switch
• Suitable for analogue audio
• Front panel indication of output select
• 8 x stereo audio circuits or 16 x mono audio circuits can switched

GS-SW002A

Eight Off Two Into One Switches

• Mains powered 100 - 240 volts
• 19 inch 1RU subrack
• 2 x 8 balanced audio inputs
• 1 x 8 balanced audio output
• 8 off 2 pole 2 way relays
• Relays can be switched together or set in groups
• Gold plated relay contacts
• Relays can be activated from an external high or low or a switch
• Suitable for analogue audio
• Front panel indication of output select
• 4 x stereo audio circuits or 8 x mono audio circuits can switched
