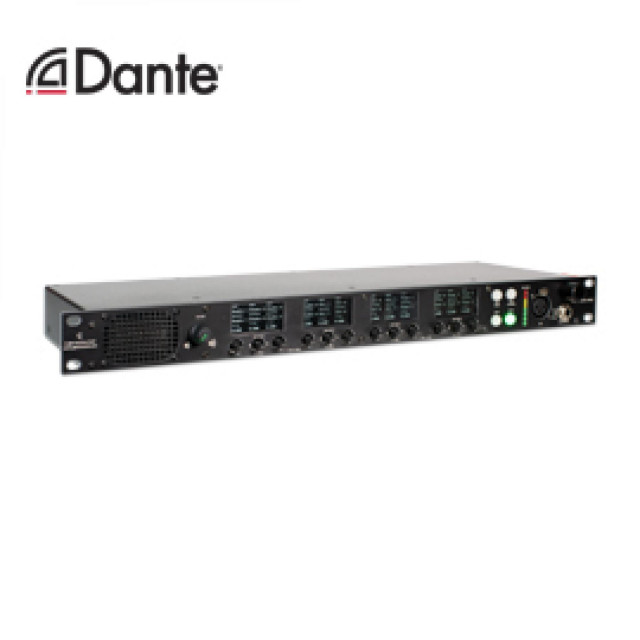

Beatrice R4

4 Channel Network Audio Rackmount Intercom

This device uses Audinate's Ultimo Chipset, which can receive 4 incoming audio channels, each at 48kHz.  However, this chipset can only receive these 4 audio channels from a maximum of 2 network locations (2 different devices).  This is common with any manufacturer that uses this chipset.

• Dante/ AES67 Network Audio Intercom
• 4* Channels
• Crystal Clear 48kHz Digital Audio
• Mains or PoE powered
• Internal DSP mix matrix
• Easy to use
• No central matrix required

* From a maximum of of 2 network locations.

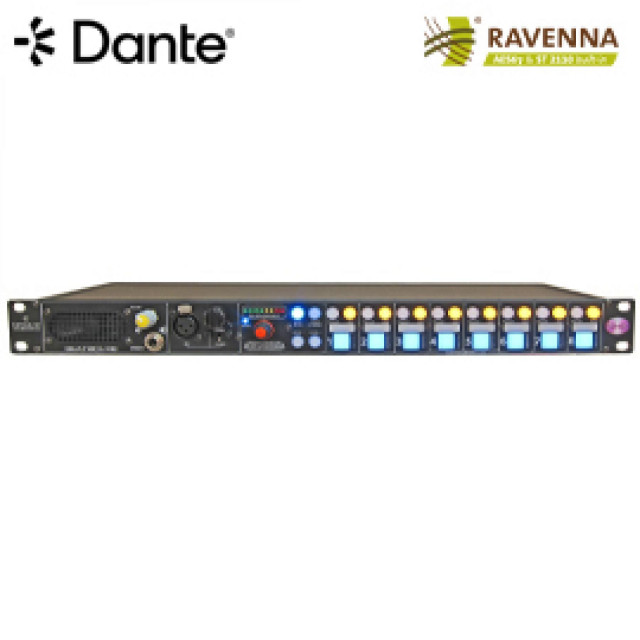

Beatrice R16

16 Channel Network Audio Rackmount Intercom

• Dante/ AES67 Network Audio Intercom
• 16 Talkback Channels
• Crystal Clear 48kHz Digital Audio
• Mains or PoE powered
• Internal Fixed Ratio Mixer for partylines/ groups
• Easy to use
• No central matrix required
• 2 x Analogue 4-wires to/ from network
• GPIO
• Also Available in AES67/Ravenna Version

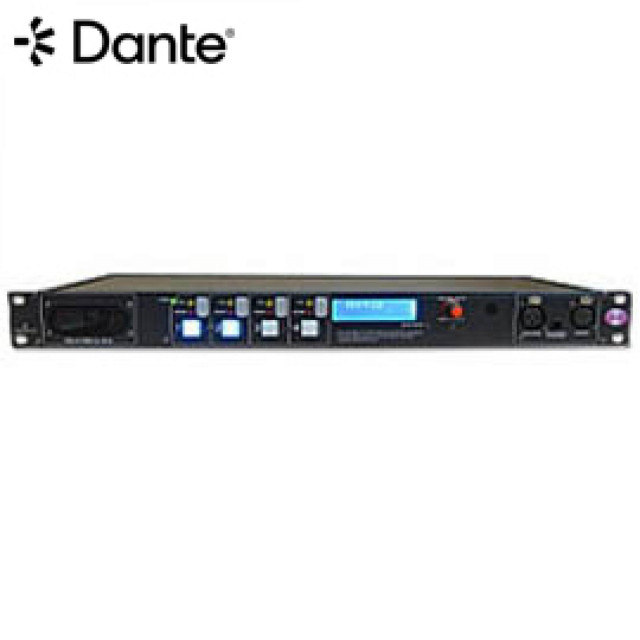

Beatrice R8

8 Channel Network Audio Rackmount Intercom

• Dante/ AES67 Network Audio Intercom
• 8 Talkback Channels each with own IFB
• Crystal Clear 48kHz Digital Audio
• Mains or PoE powered
• Internal Fixed Ratio Mixer for partylines/ groups
• Easy to use
• No central matrix required
• 2 x Analogue 4-wires to/ from network
• GPIO
• 2 x racks expand to make 16 keypanel
• Also Available in AES67/Ravenna Version

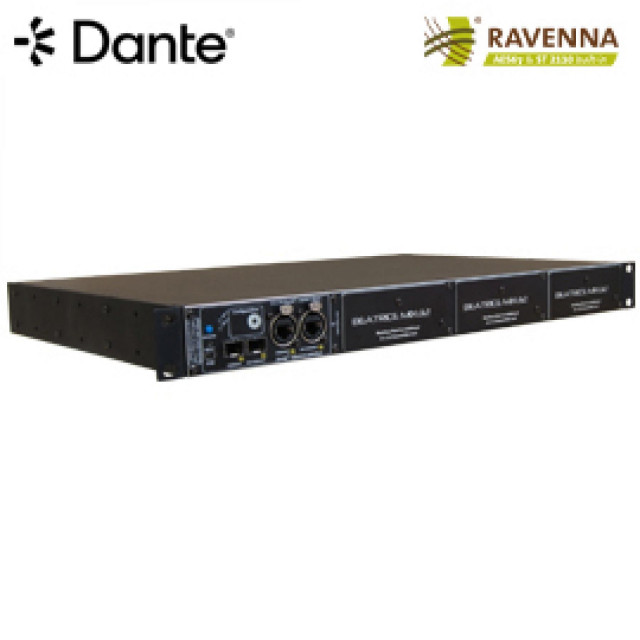

BEATRICE MIX32

Mixing, Mix Minus and Priority Override For Beatrice Intercom

• Multiple Mix-Minus Mixer Options
• Up to 4 of 32 x 32 fixed ratio mixers in 1RU
• Dante/ AES67
• Limiter/ Compressors on Outputs
• Redundant network interface
• Copper & Fibre network interface
• Redundant Power Supply
• Originally designed for setting up intercom mixes
• Loop Through Mode
• Priority override
• Also Available in AES67/Ravenna version
