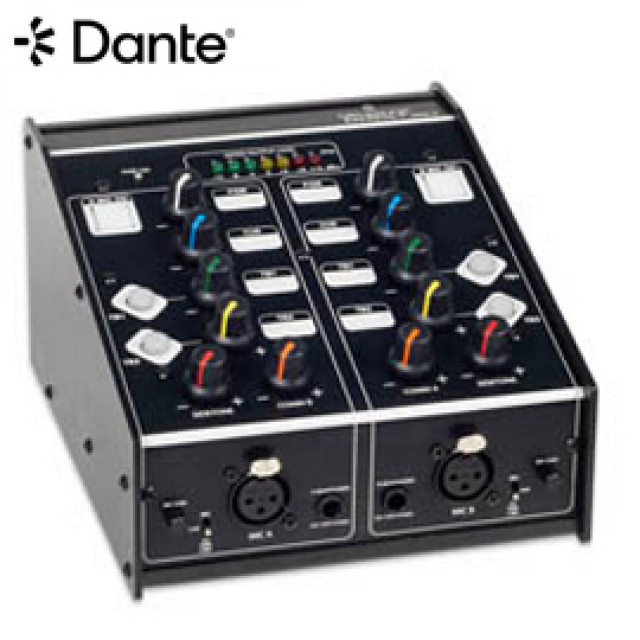

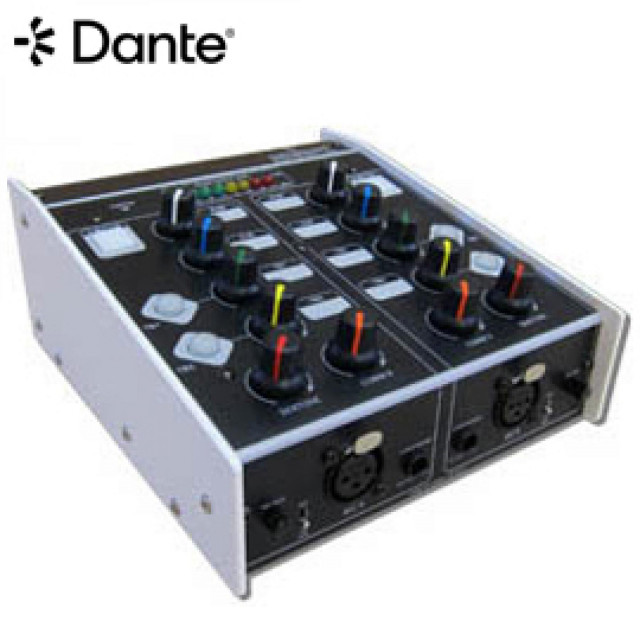

EXPRESS ip MINI

Compact 2 User Dante/ AES67 Commentary Unit

This device uses Audinate's Ultimo Chipset, which can receive 4 incoming audio channels, each at 48kHz.  However, this chipset can only receive these 4 audio channels from a maximum of 2 network locations (2 different devices).  This is common with any manufacturer that uses this chipset.

• Compact two person commentary
• Dante®/ AES67 network audio interface
• Four external monitor inputs
• Two common talkback circuits
• Operation of talkback buttons configurable
• Mic inputs with selectable 48V phantom power
• Mic input gain controls

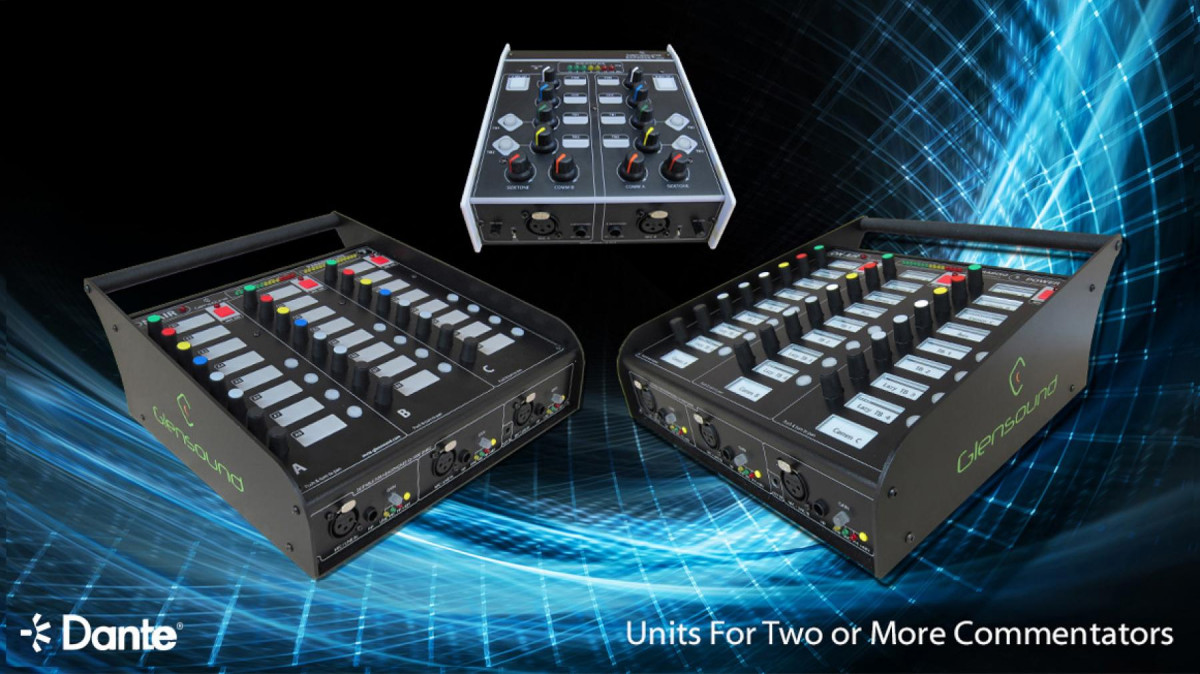

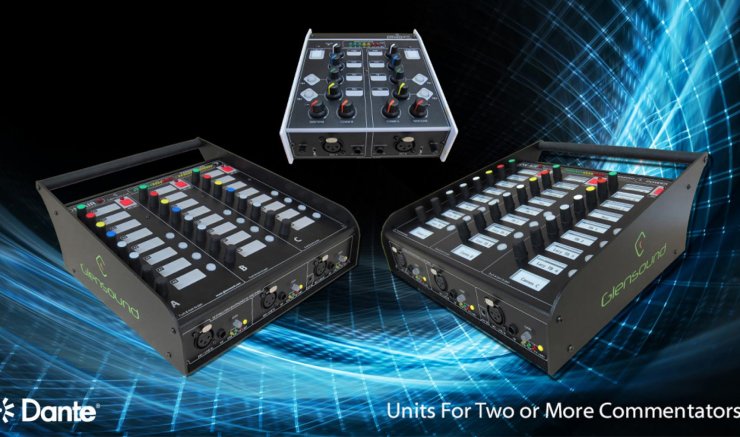

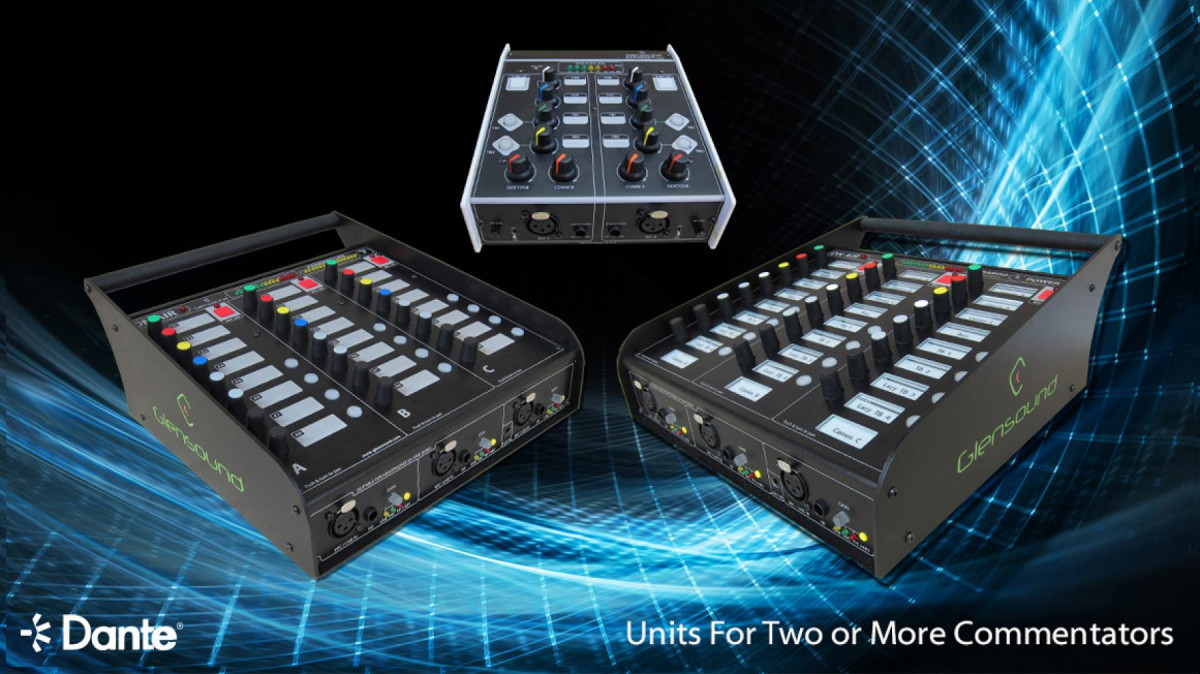

PARADISO

Dante AES67 Commentators Box

• Comprehensive commentary unit
• Suitable for 3 commentators on 1 programme or 3 separate programmes
• Glitch free redundant Dante network audio
• Multiple power sources (PoE x 2), Mains & DC
• Best microphone amplifiers available
• ePaper displays to make the commentators life easy
• Local analogue and AES3 inputs & outputs for extra redundancy
• Includes our much revered Referee compressor/ limiter
• Windows 10 app for remote control & setup

PARADISO LITE

Dante AES67 Commentators Box

Identical to the Paradiso with the following exceptions:

• No ePaper displays
• No fibre network connections
• Accountant pleasing price :-)

CU001 Ravenna

Three Commentator Unit With Analogue I/O & Ravenna

• Positions for 3 commentators 3 x mic/line inputs with 48v phantom power
• Individual outputs plus a mixed output
• 5 external inputs for monitoring plus sidetone
• Output compressor / limiter
• 3 common talkback outputs with Config+ push buttons
• 7 segment LED PPM
• Analogue audio and Ravenna/AES67 I/O

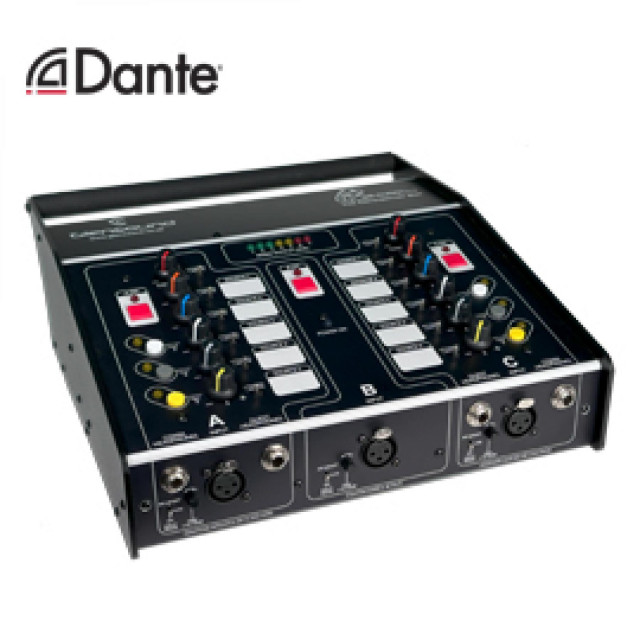

CU001 DANTE

Three Commentator Unit With Analogue I/O & Dante

• Positions for 3 commentators 3 x mic/line inputs with 48v phantom power
• Individual outputs plus a mixed output
• 5 external inputs for monitoring plus sidetone
• Output compressor / limiter
• 3 common talkback outputs with Config+ push buttons
• 7 segment LED PPM
• Analogue audio and Dante/AES67 I/O

VITA PLUS

Commentary Unit With Talkback & Dante Interface

• Main mic/line input with adjustable gain control
• High quality broadcast suitable mic amplifier
• Dante network audio connection via RJ45/CAT5
• Single 4W talkback circuit
• Powered via PoE, or internal Mains PSU

VITA BB PLUS

Dante/ AES67 Announcers Box

• Large Format Illuminated Switches
• Main mic/line input with remote control adjustable gain
• High quality broadcast suitable mic amplifier
• Dante/ AES67 network audio connection via RJ45/CAT5
• Single 4W talkback circuit
• Powered via PoE

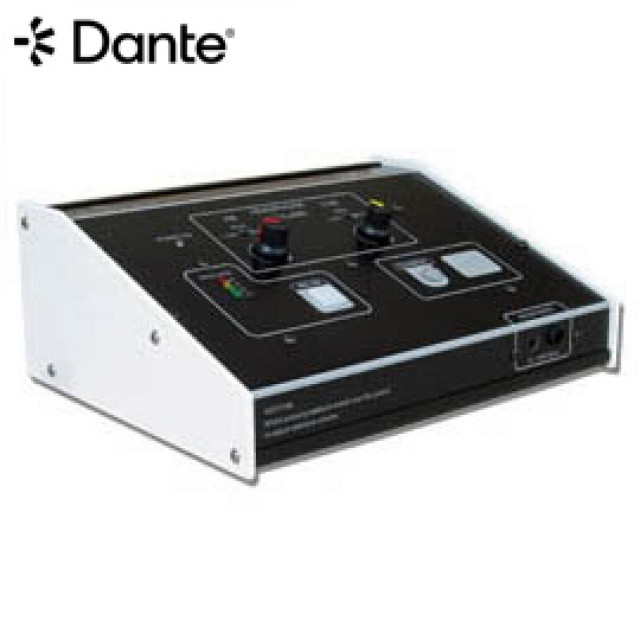

VITA

Commentary Unit With Talkback & Dante Interface

• Main mic/line input with adjustable gain control
• High quality broadcast suitable mic amplifier
• Dante network audio connection via RJ45/CAT5
• Single 4W talkback circuit
• Powered via PoE, or via external 12v DC
• Remote control using VitaControl application

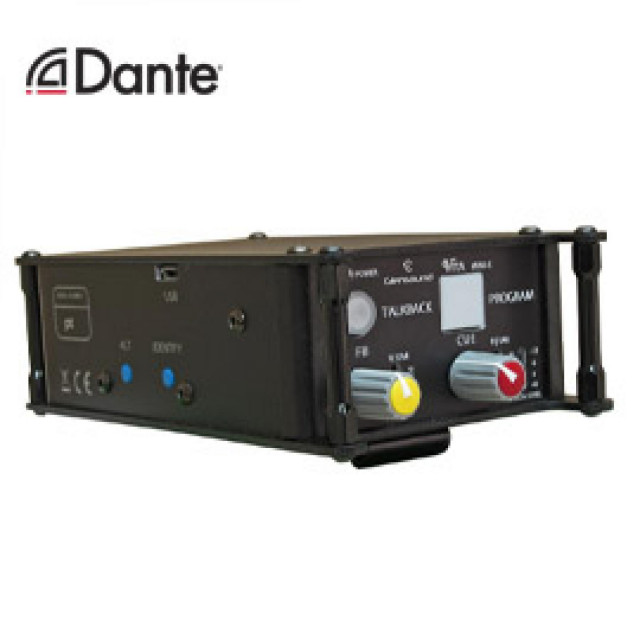

VITA Mini X

High Specification Beltpack Commentary Interface

• For commentary or talkback
• Two 4 wire circuits
• Dante & AES67 compatible
• Monitoring with left/right/both switching
• Network remote control & configuration
• Power via PoE or external DC

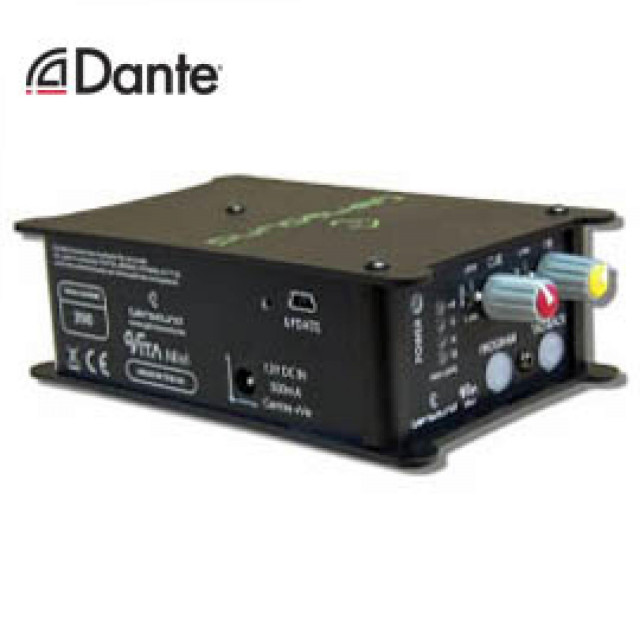

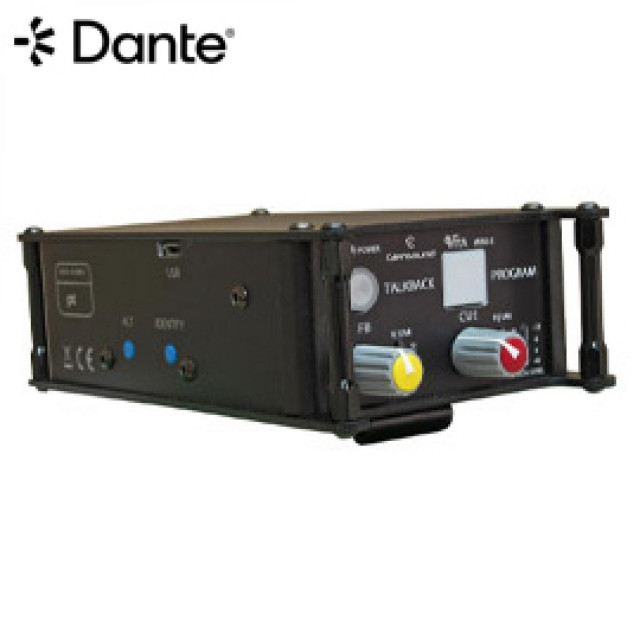

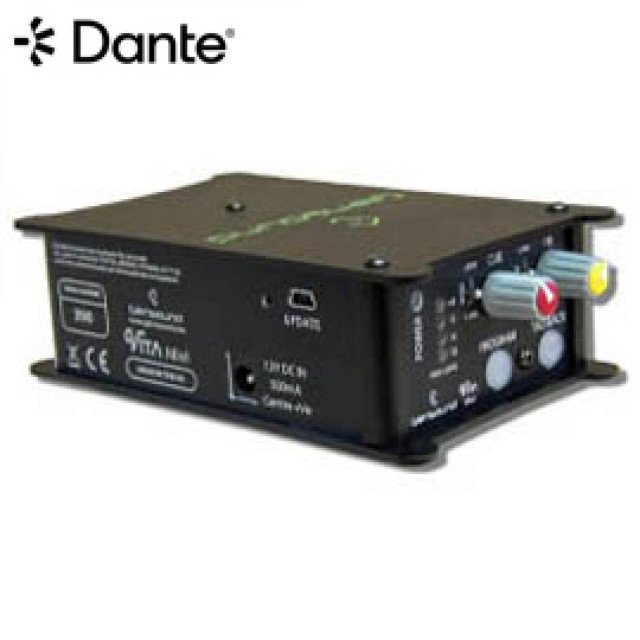

VITA MINI

Compact Dante® Beltpack Commentary Unit With Talkback

• Remote control from Windows 10 App
• High quality broadcast on-air mic amplifier
• Dante® (AES67 compliant) network audio connection via Ethercon RJ45
• Referee compressor limiter
• Single off air talkback circuit
• Powered by PoE, or via external 12V DC
• Compact design

INFERNO

Single Commentator's Box For Dante Audio Networks

• Single user Dante commentary box
• System is scalable with multiple commentators as part of a Dante network
• Can connect to any Dante compatible network or directly to our DARK break out boxes.
• Single mic/line/48v input with Referee compressor/limiter
• Headphone mixer has 7 inputs supplied from the Dante network, plus the local input (sidetone)
• Browser based remote control of input gain and switching functions
• Also Available in AES67/Ravenna Version

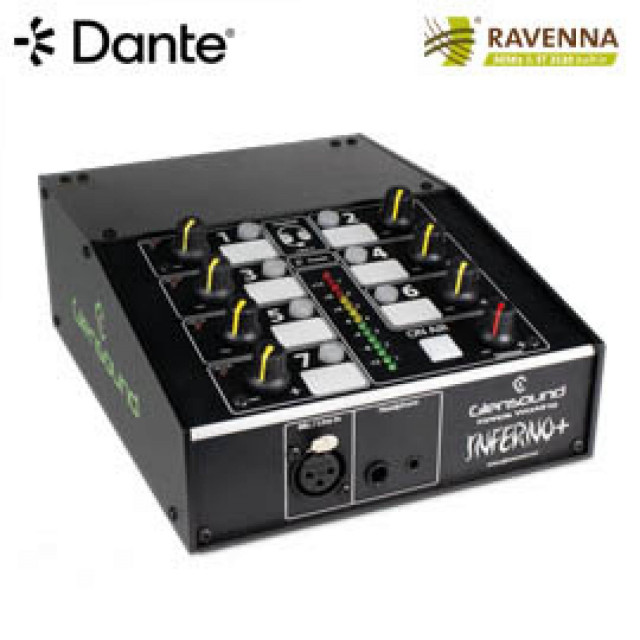

Inferno Plus

Single Commentator's Box With Analogue Outputs

• Single user Dante commentary box
• Includes additional analogue outputs
• System is scalable with multiple commentators as part of a Dante network
• Single mic/line/48v input with Referee compressor/limiter
• Headphone mixer has 7 inputs supplied from the Dante network, plus the local input (sidetone)
• Each headphone input has left/both/right headphone switching
• 7 talkback circuits are programmable via the Dante network
• Browser based remote control of input gain and switching functions
• PoE, Mains or DC powering options
• Also Available in AES67/Ravenna Version

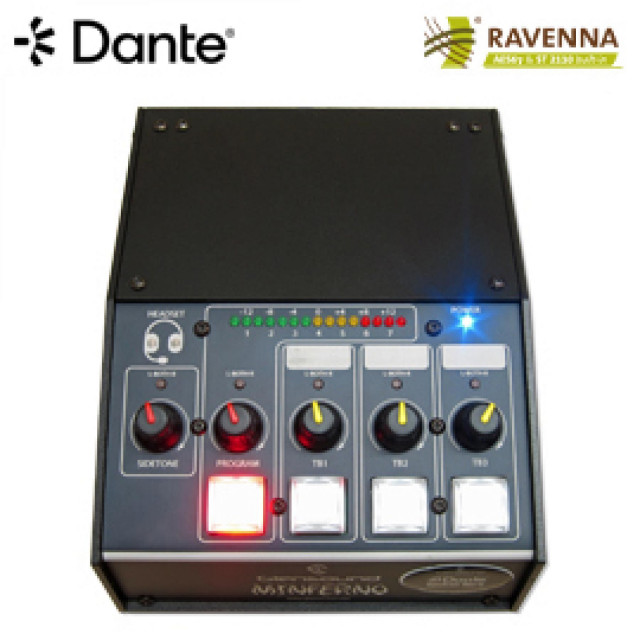

MinFerno/3

Single Commentator's Box For Dante Audio Networks

• Single user Dante commentary box
• AES67 Compliant
• Single mic/line/48V input
• Referee compressor/limiter
• Headphone mixer has up to 4 inputs supplied from the Dante network, plus the local input (sidetone)
• Programme and up to 3 talkback outputs
• Browser based remote control of input gain and switching functions
• Redundant Copper & Fibre network connections
• Also Available in AES67/Ravenna Version

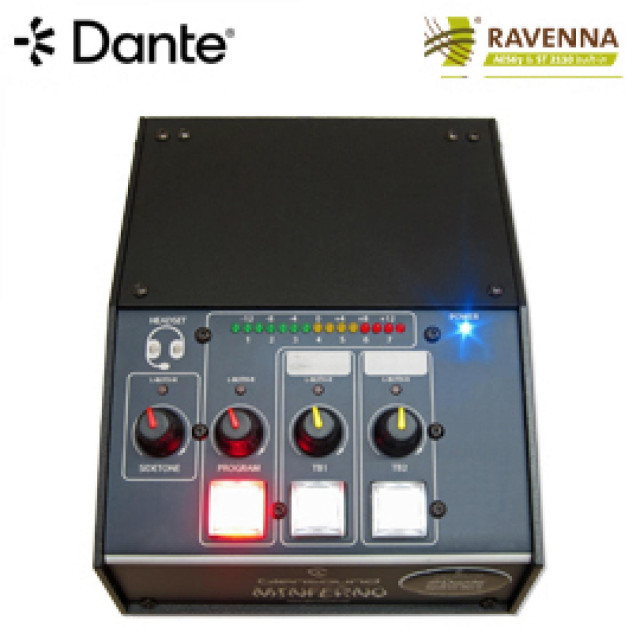

MinFerno/2

Single Commentator's Box For Dante Audio Networks

• Single user Dante commentary box
• AES67 Compliant
• Single mic/line/48V input
• Referee compressor/limiter
• Headphone mixer has up to 4 inputs supplied from the Dante network, plus the local input (sidetone)
• Programme and up to 3 talkback outputs
• Browser based remote control of input gain and switching functions
• Redundant Copper & Fibre network connections
• Also Available in AES67/Ravenna Version

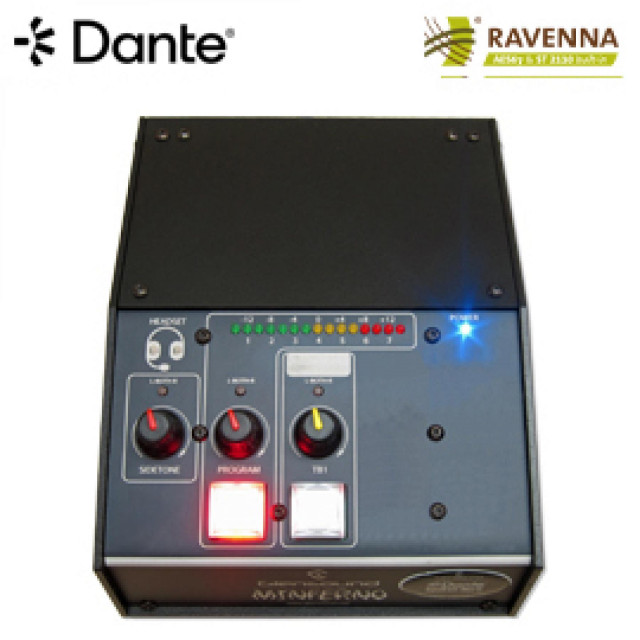

MinFerno/1

Single Commentator's Box For Dante Audio Networks

• Single user Dante commentary box
• AES67 Compliant
• Single mic/line/48V input
• Referee compressor/limiter
• Headphone mixer has up to 4 inputs supplied from the Dante network, plus the local input (sidetone)
• Programme and up to 3 talkback outputs
• Browser based remote control of input gain and switching functions
• Redundant Copper & Fibre network connections
• Also Available in AES67/Ravenna Version

MinFerno/0

Single Commentator's Box For Dante Audio Networks

• Single user Dante commentary box
• AES67 Compliant
• Single mic/line/48V input
• Referee compressor/limiter
• Headphone mixer has up to 4 inputs supplied from the Dante network, plus the local input (sidetone)
• Browser based remote control of input gain and switching functions
• Redundant Copper & Fibre network connections
• Also Available in AES67/Ravenna Version.

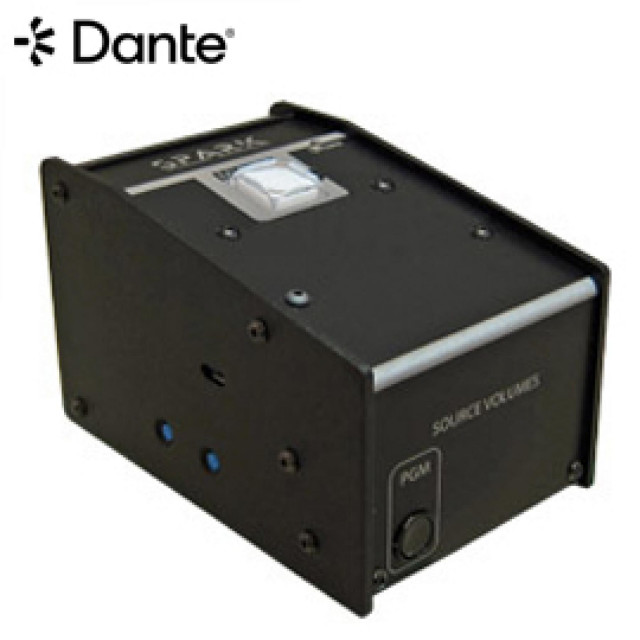

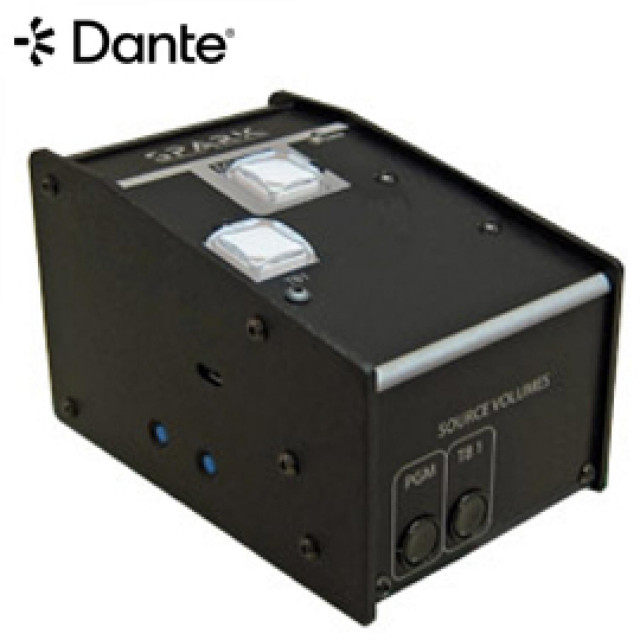

SPARK

Sub Compact Single User Commentary

• Single user commentary using Dante Broadway module
• Mic input and monitoring return
• Full remote control and monitoring using Windows 10 app GlenController
• Sub compact desktop design
• Additional Dante functionality with 8 x inputs & 8 x outputs on Dante Controller

SPARK 1

Sub Compact Single User Commentary With 1 Talkback Channel

• Single user commentary using Dante Broadway module
• 1 talkback circuit
• Full remote control and monitoring using Windows 10 app GlenController
• Sub compact desktop design
• Additional Dante functionality with 8 x inputs & 8 x outputs on Dante Controller

SPARK 2

Sub Compact Single User Commentary With 2 Talkback Channels

• Single user commentary using Dante Broadway module
• 2 talkback circuits
• Full remote control and monitoring using Windows 10 app GlenController
• Sub compact desktop design
• Additional Dante functionality with 8 x inputs & 8 x outputs on Dante Controller

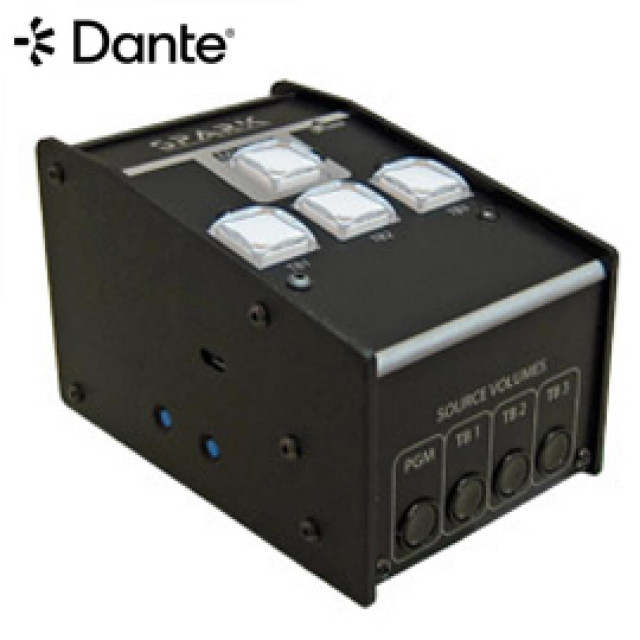

SPARK 3

Sub Compact Single User Commentary With 3 Talkback Channels

• Single user commentary using Dante Broadway module
• 3 talkback circuits
• Full remote control and monitoring using Windows 10 app GlenController
• Sub compact desktop design
• Additional Dante functionality with 8 x inputs & 8 x outputs on Dante Controller

Inferno & MinFerno Controller

System and Remote Control Software for the Inferno and MinFerno

• Control software for the Inferno & MinFerno
• Allows remote control of input gain level
• Controls all system parameters
• Web browser based
• Remote mic on/off
• PPM
• Gain lock

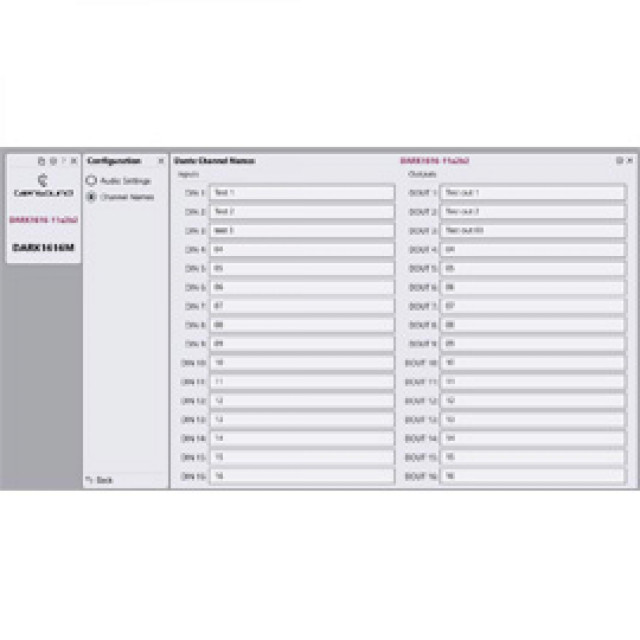

GlenController

• Provides network remote control for many of our Dante products
• Windows 10/11 App
• Built in redundancy
• Remote firmware update for some products
• Free to download and use
• Works With:

Paradiso, Paradiso Lite, Dark1616M, Dark1616S, Dark8MAI, Dark8MAIR, Styx, BEA-B4+, Divine, Spark, Vita Mini-X, Comedia, GTM
