• Freestanding PBS desktop interface
• 7 assignable keys
• RFID card reader
• Mic input on 3 pin XLR with shock mount
• Loudspeaker
• Headphone output on 6.35mm jack socket
• Primary and redundant Dante connections
• PoE

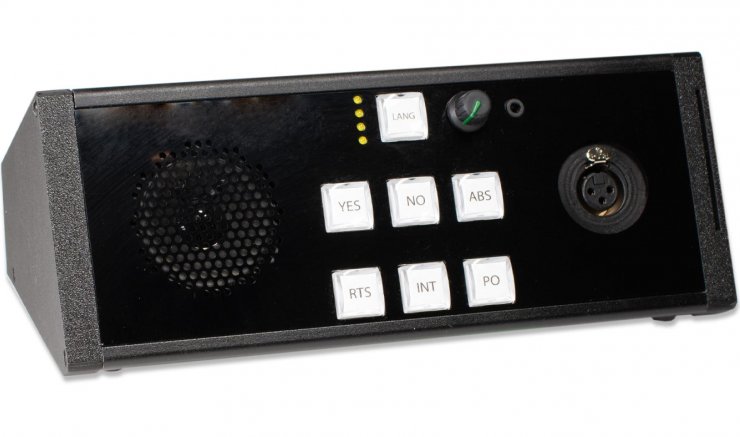

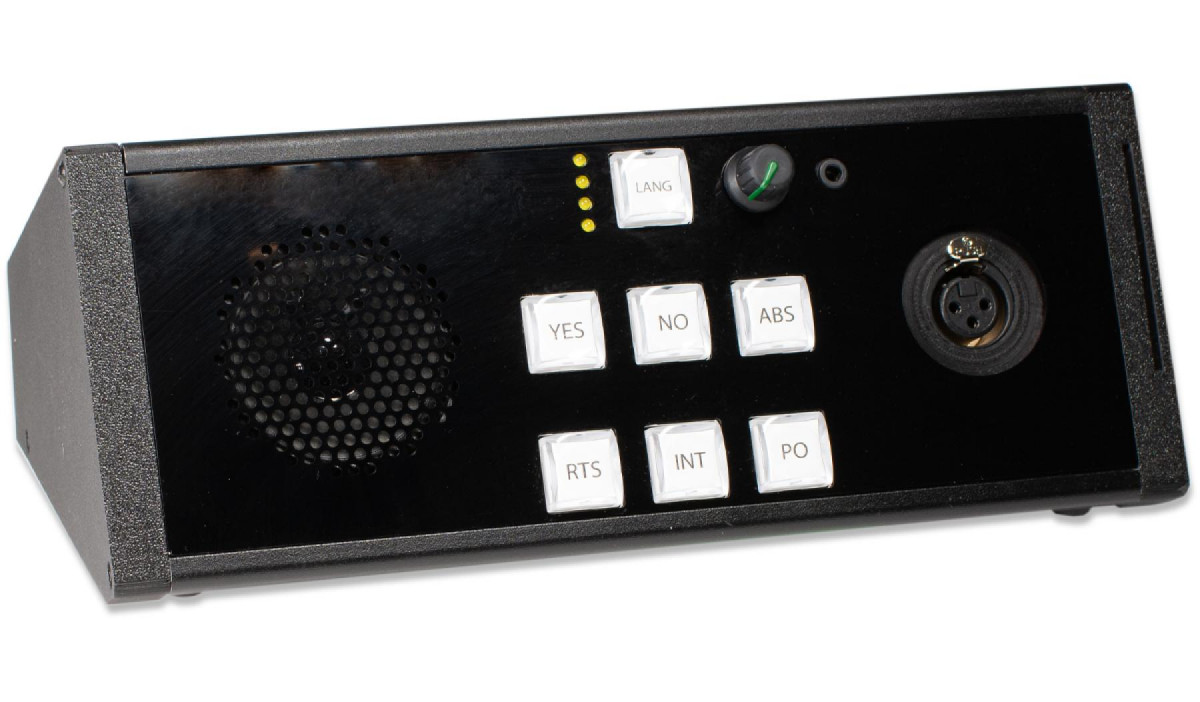

The PBS Desktop 3 is the frestanding version of our PBS-VOTER panel.  Where the PBS-VOTER style panel needs to be fitted into furniture, the PBS Desktop 3 is freestanding so can be used on any flat surface.  It also includes an inbuilt PBS-MOP1 so can connect directly into the network.

There are 7 freely assignable keys.  They can be assigned different functions within the PBS system and can feed back information to the operator with different colours and/or flashing.  The functions assigned will vary depending on what the parliamentary procedure or meeting requires.  For example, a typical configuration could be:

• Top button loops between 4 different interpreted languages that are fed to the headphone output
• The top row of 3 buttons could be used as voting buttons: - YES, ABSTAIN, NO.  All keypresses are logged in the system to verify who has voted and how they voted.
• The bottom row of 3 buttons could be used for the parliamentary debating process: - REQUEST TO SPEAK (let the clerk know that the operator wishes to speak on the issue and puts them in a queue), POINT OF ORDER (let the clerk know that the operator wishes to make a point of order, INTERRUPT (let the clerk know that the operator wishes to interrupt the current speaker)

Button lighting can change to indicate any of the above functions.  The following are also popular lighting options:

• INTERRUPT key flashes to let the operator speaking know that someone wishes to interrupt them.  This can also be with a separate desktop or gooseneck mounted light.
• All or some of the keys go red to let the operator know that their mic is live

An onboard RFID receiver can read ID cards when placed in the card slot.  If the operator is registered it will allows the PBS system to log this operator as present and time stamp the point they logged in.  If this person then speaks, the point they speak will be timestamped to aid future retrieval in the audio logging and audio transcription modules.

A 3 pin XLR allows connection of dynamic or phantom powered gooseneck microphones.  The microphone gain ranges will be configured in setup to allow for the type of mic used and the room acoustics to prevent feedback.

The XLR socket is on a shock proof rubber mount.  As the operators of these units are typically MPs we expect computers, notepads, folders, pens and other such items to be banging and knocking the desk.  This shock mount eliminates these noises from the audio path.

The loudspeaker provides the local audio to this position as part of the wider chamber system.  The system controller will dim and mute this speaker as necessary as part of the audio reproduction dynamic control.

The headphone output has a local volume control.  The source of this audio is a Dante network channel and it is typically used for interpretation.

The finish of the panel can be changed to suit the environment of the debating chamber it is in.  Stainless steel and black are both popular.

There are 2 x RJ45s on the rear for connection to the primary and secondary Dante networks.

Power is provided by PoE.
