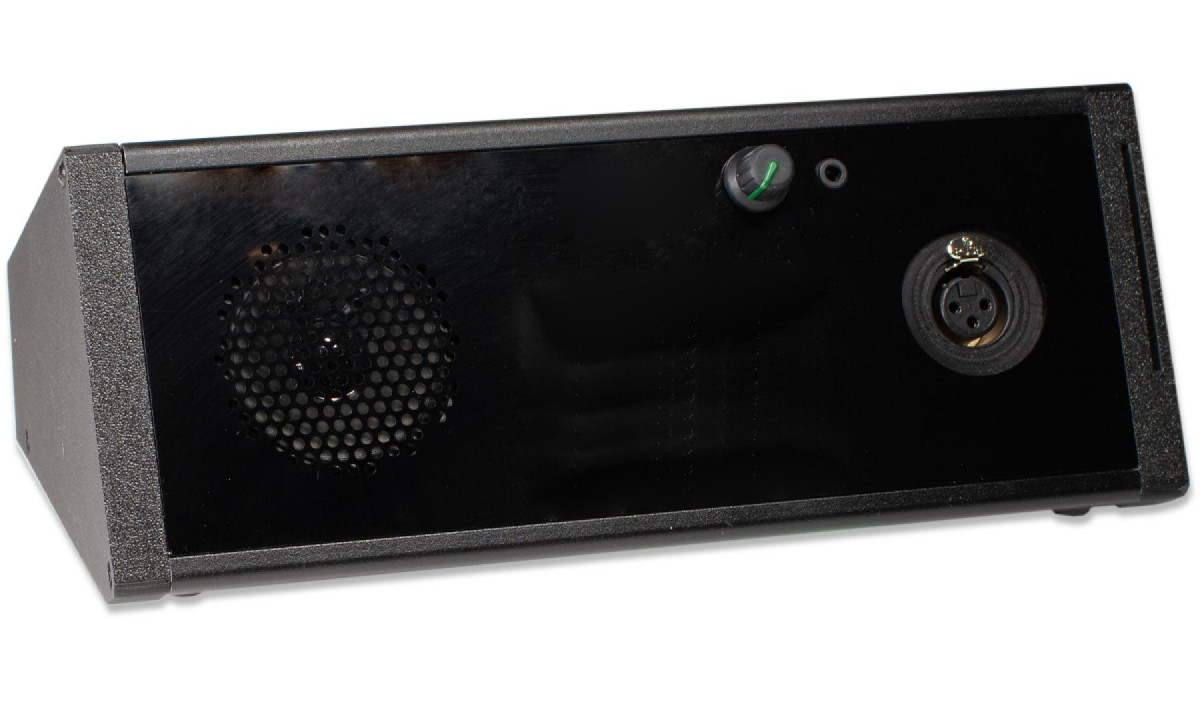

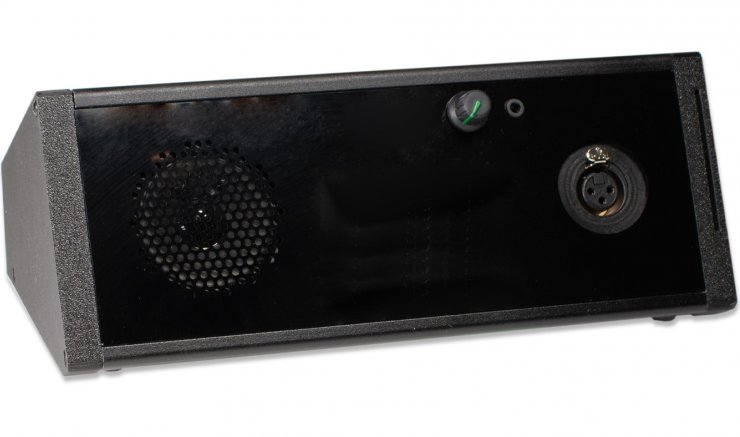

The PBS Desktop 2 is the frestanding version of our furniture mounted panels. Where the PBS-READER and PBS-VOTER style panels needs to be fitted into furniture, the PBS Desktop 2 is freestanding so can be used on any flat surface. It also includes an inbuilt PBS-MOP1 so can connect directly into the network.
An onboard RFID receiver can read ID cards when placed in the card slot. If the operator is registered it will allows the PBS system to log this operator as present and time stamp the point they logged in. If this person then speaks, the point they speak will be timestamped to aid future retrieval in the audio logging and audio transcription modules.
A 3 pin XLR allows connection of dynamic or phantom powered gooseneck microphones. The microphone gain ranges will be configured in setup to allow for the type of mic used and the room acoustics to prevent feedback.
The XLR socket is on a shock proof rubber mount. As the operators of these units are typically MPs we expect computers, notepads, folders, pens and other such items to be banging and knocking the desk. This shock mount eliminates these noises from the audio path.
The loudspeaker provides the local audio to this position as part of the wider chamber system. The system controller will dim and mute this speaker as necessary as part of the audio reproduction dynamic control.
The headphone output has a local volume control. The source of this audio is a Dante network channel and it is typically used for interpretation.
The finish of the panel can be changed to suit the environment of the debating chamber it is in. Stainless steel and black are both popular.
There are 2 x RJ45s on the rear for connection to the primary and secondary Dante networks.
Power is provided by PoE.
