• 4G VO-LTE, 3G UMTS, and 2G GSM Broadcasters’ Mobile Phone
• One x mic/48V/line inputs with adjustable gain
• Configurable on/off button on the input
• 6.35mm headphone output
• OLED screen
• Diversity aerials
• Auto answer
• Selectable background noise suppressor
• NANO SIM card
• Powered via 6 X AA batteries, USB or DC

The NOMAD is the latest mobile phone hybrid from Glensound building on the success of the classic GS-MPI004(HD).  Using the latest phone module allowing greater worlwide compatibility and full HD voice over LTE for territories that no longer have 3G services.

Using the same network provider (where HD Voice is available) on either end of the call allows 7kHz audio links to be made for perfect speech performance.

The OLED screen now allows simple configuration and monitoring of call functions such as signal strength and caller ID, and the input now has a configurable on/off or cough button.

The line output can now bet set for a true balancing unit with just the isolated remote end audio, or it can be mixed with the input for a complete programme feed.

Powering options have been enhanced.  6 x AA batteries now give 5 1/2 hours connected run time.  As well as the standard DC input, a USB C power input has been added to allow powering from the widely available USB power banks.

Software revision July 23
Features added:
- Last number redial
- Hold zero for + symbol

Glensound HD Voice - 7kHz Audio Bandwidth
Glensound HD Voice is an automatic feature available around the world on compatible mobile networks using 4G VoLTE or 3G UMTS. Connecting two Glensound HD Voice broadcasters mobile phones in the same country, across a compatible 4G VoLTE or 3G UMTS network, will give a clear 7kHz of audio bandwidth.

HD Voice Is AMR-WB (Adaptive Multi Rate Wide Band)
Also known as G.722.2. This is the algorithm more commonly known as HD Voice. It offers significant advantages for broadcasters:
- Doubles voice bandwidth over 2G GSM to 50-7000Hz (2G narrow band speech codec is 300-3400Hz).
- 12.65 kbit/s or higher coding bit-rates provide high quality wideband audio.
- Gives a better lower frequency response, down to 50Hz (2G is 300 Hz), for more natural sounding voices.

Glensound HD Voice Does Not Require The Data Network On 3G UMTS
With 3G UMTS HD Voice, The Nomad connects as a voice call, not a data call.
- Bandwidth is consistent once connected. With data connections, bandwidth varies during a connection, but on a HD Voice call it does not. Once you are connected your call quality will remain consistent.
- No extra call charges. As the network sees the connection as a voice call, there are no extra charges and no data usage as part of a data charging package.
- The NOMAD will still operate at 7 kHz HD Voice even in busy locations where there is little available data - HD Voice doesn’t need data (on 3G)

Configurable To Operate On 2G GSM, 3G UMTS or 4G VoLTE
Calls can be locked to 2G, 3G or 4G only, with any calls made on HD Voice automatically dropping down to 2G when moving outside a signal area without disconnecting the call. The NOMAD also operates as a standard 2G mobile phone, and with advances in performance and noise reduction capabilities found on the NOMAD, improvements in call quality can still be heard.

Accommodates A Broader Range Of Audio Frequencies
Glensound HD Voice can accommodate a wider range of audio frequencies thus improving the overall call quality. This will aid ultimate clarity in noisy environments with reduced background noise from the background noise suppressor.

A Cost Effective Upgrade
Glensound HD Voice is one of the most cost effective upgrades that can be made to improve audio quality using mobile phones. This makes the NOMAD perfect as a remote live reporting or talkback tool.

NETWORK
Frequency Bands
LTE-FDD: B1/B2/B3/B4/B5/B6/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28.
LTE-TDD: B28/B39/B40/B41.
WCDMA: B1/B2/B4/B5/B6/B8/B19
GSM: B2/B3/B5/B8
Certifications Carrier: Deutsche Telekom (Europe), Telus (Canada)

SPECIFICATIONS
2G Audio Frequency Response
Telephone networks provide 300Hz to 3.4 kHz audio bandwidth

3G/4G HD Voice Frequency Response
HD Voice provides 50Hz to 7kHz audio bandwidth

Algorithm
HD Voice is AMR-WB (G722.2)

Network Compatibility
Will operate on most mobile phone network and most SIM cards *

HD Voice Compatibility
Will operate on any compatible HD voice networks

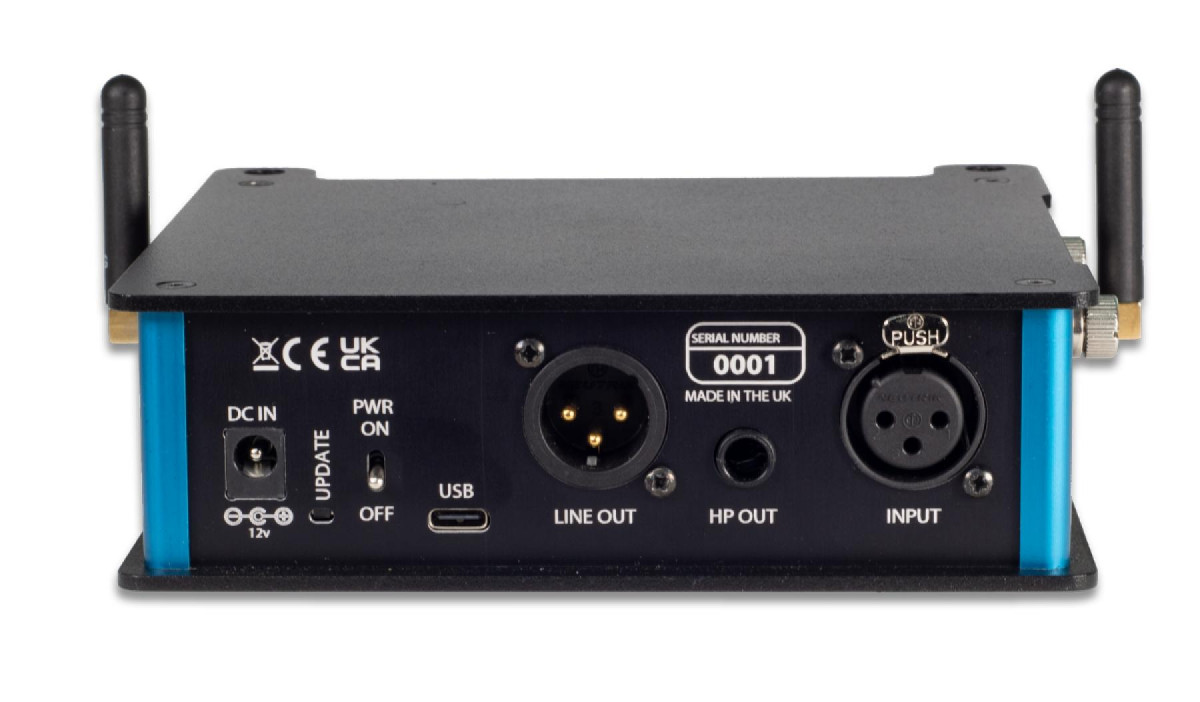

INPUTS AND OUTPUTS
Mic Inout Connector
Neutrik balanced XLR

Line Out
Neutrik balanced XLR

Headphone Out
6.35mm Jack Socket

Line in Level
odBu

Dynamic Mic Line Up
-46dBu

Phanthom Mic Line up
-46dBu

Line Input Gain Range
+/- 15 dB

Mic Input Gain Range Rate
+/- 15dB

Headroom @ Mic Line Up
30dB

Output Level
0dBu

Output Gain Control
Fixed

Max Output Level
+18dBu

POWER
Batteries
Removable battery compartment 6 AA cells Power level displayed on OLED screen

External DC Input
+10 to +15 VDC, 2.5mm barrel connector

USB
Type C connection

Power On LED
Bright Blue

AERIAL
Aerial Connector Type
2x SMA

Aerial Technology
Diversity

RF Output Power
2 Watts

PHYSICAL
Size
182 x 140 x 47 mm (WxDxH)

Weight
585 g

ENVIRONMENT
Operating Temperature
0 to +50 oC (32 to 122 oF)

Storage Temperature
-20 to +70 oC (-4°C to 158 oF)

Relative Humidty
0 to 95% non-condensing

INCLUDED ITEMS
Handbook
Available by Download

Aerial
2x 2.5 T Bar Antenna

Please note that a DC power supply is not included but is available as an option.

* Please Check with Glensound on Network Compatibility
