• 19 Inch 2RU Subrack
• Mains powered (100 - 240V)
• Designed to auto cut band PA systems when a safety announcement is made
• 8 off relay operated switches (30A relays)
• Each switch has an input & output on ¼" jack sockets
• Auto detection of audio from safety announcement system

This multiway switch allows for musicians' instrument and PA feeds to be automatically cut when an in house public address announcement is made.  There are 8 switching circuits each with its own heavy duty 30 amp relay. 2 x 1/4" jack sockets are provided for each relay one 'in' and one 'out'. There is also a public address input for connection from the building's or ship's announcement system. This input auto detects audio anything from 100 volt lines down to 200uV. On detection of an audio signal on the public address circuit all 8 relays are switched to cut the musicians' output.

• SW003 Block Diagram

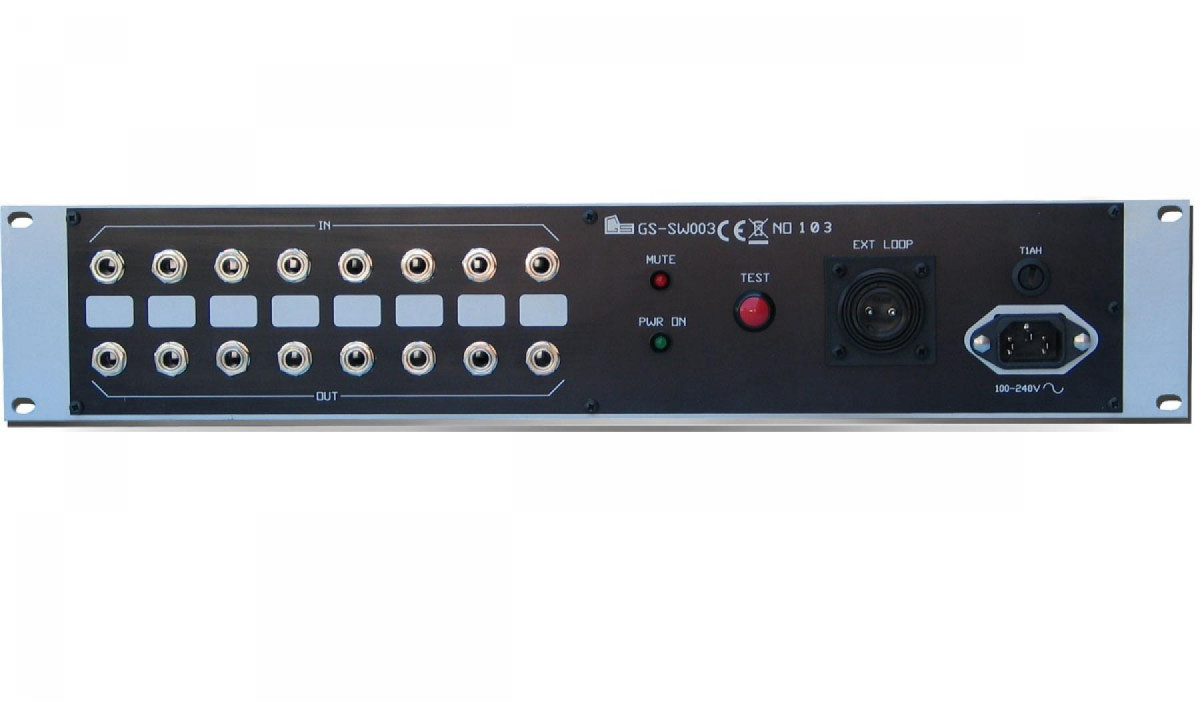

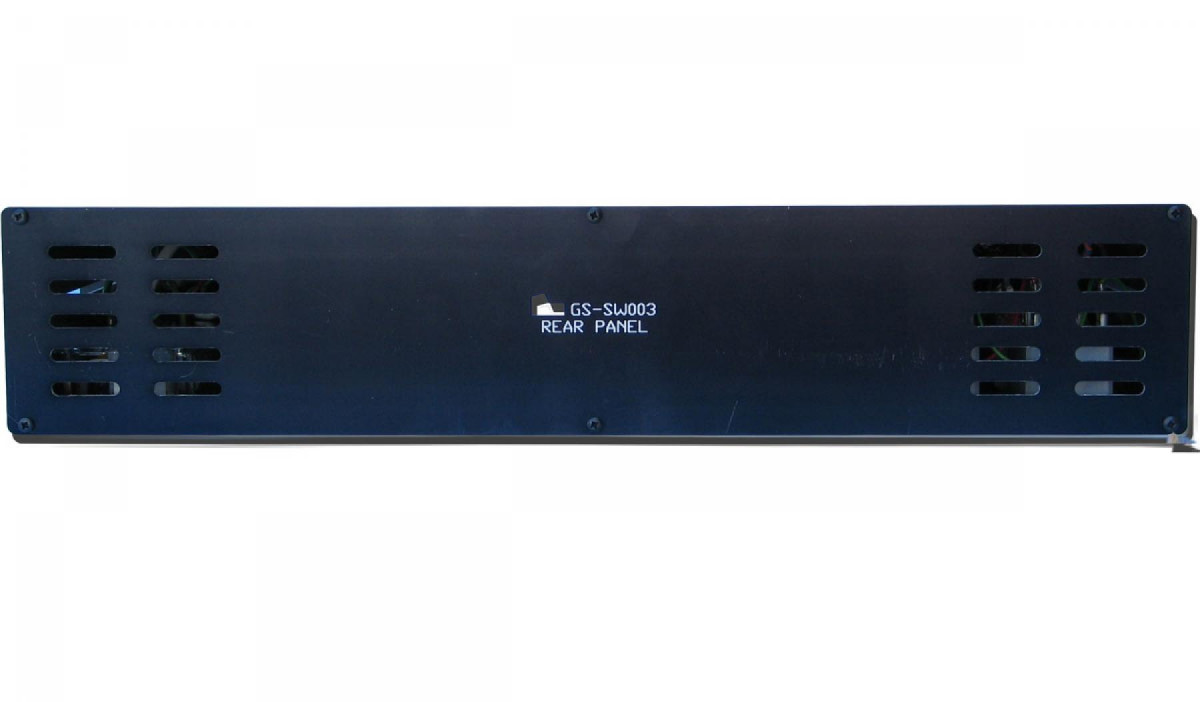

• SW003 Views
