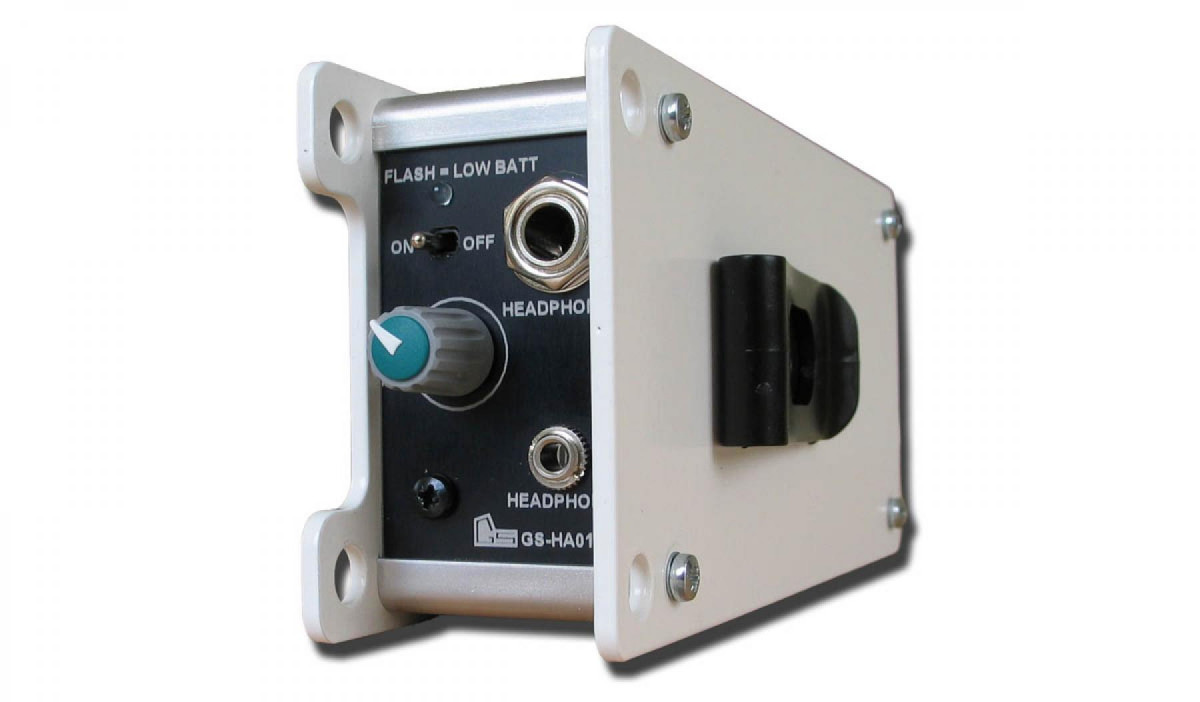

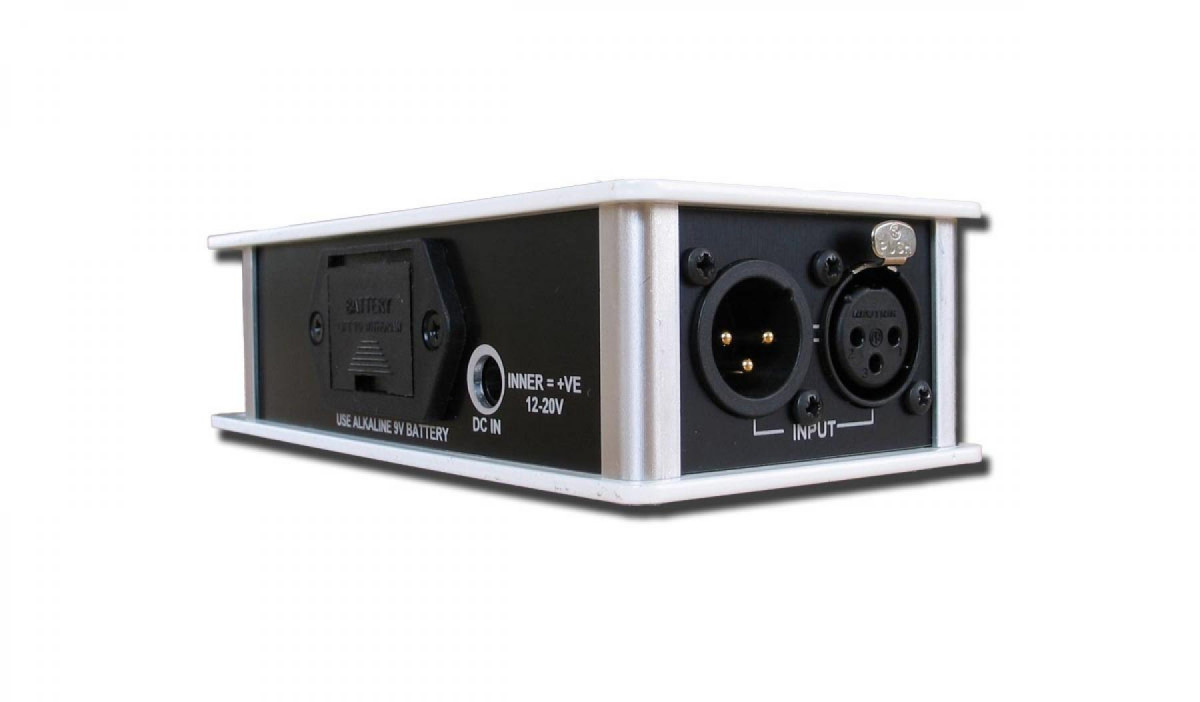

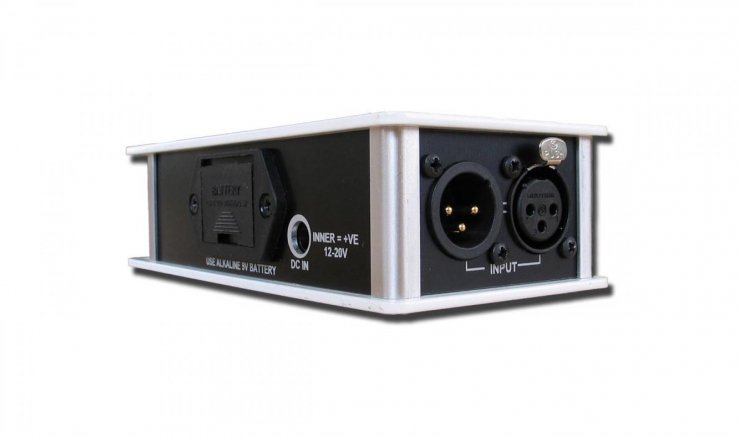

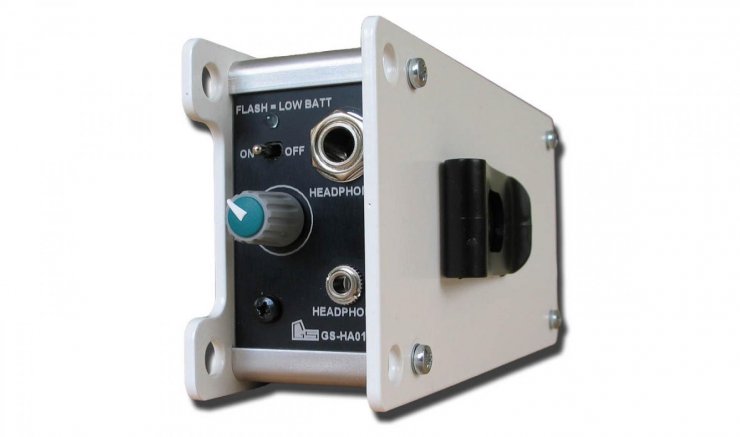

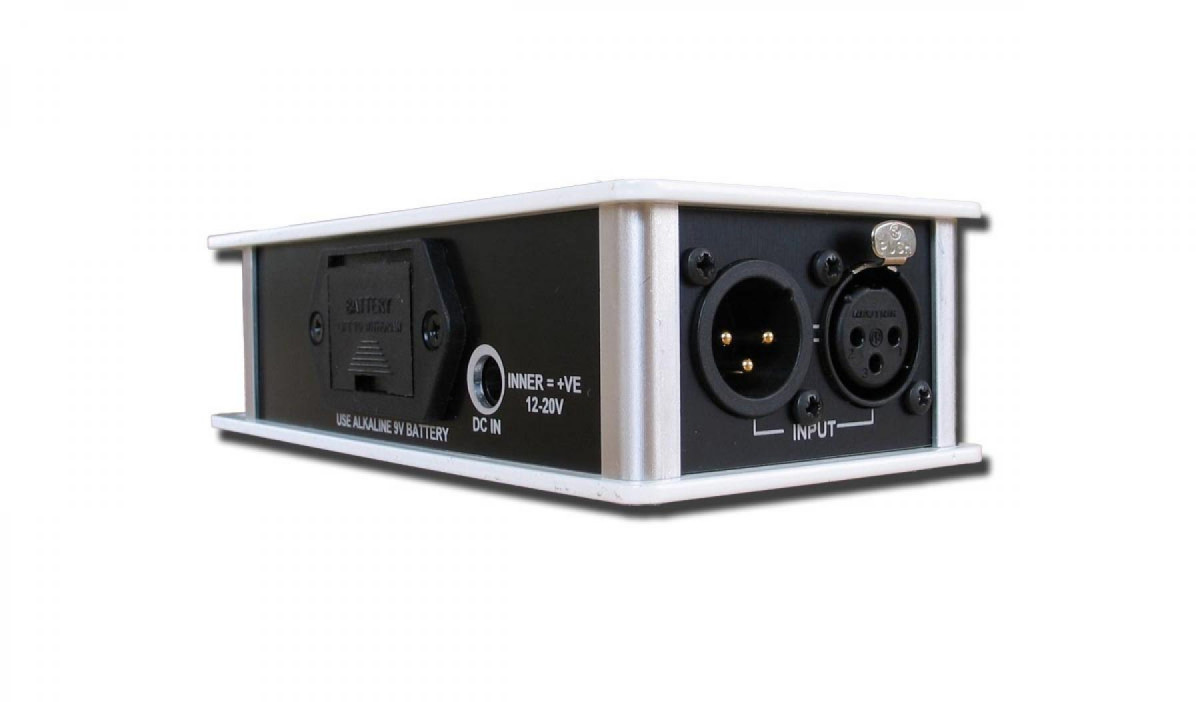

HA010 Front BAN HA010 Rear BAN

GS-HA010
Single Input Headphone Amplifier

Features Description Specifications Ask a Question
  • Portable single channel headphone amplifier
  • Battery(PP3) or DC power
  • Adjustable headphone level control
  • 6.35mm and 3.5mm headphone sockets
  • Audio input on XLR with loop through
  • On/off switch
  • Low battery light
  • Belt clip

GS-HA010 Overview
A portable, belt pack style single channel headphone amplifier.

Audio input is via XLR with a loop through XLR output. Two headphone sockets are offered, 1 on 6.35mm and the other on 3.5mm. These are wired tip & sleeve to allow connection of regular stereo headphones (with audio on both ears) or a single ear piece. There is a volume control for adjusting level to 32-1000ohm impedance headphones.

Power is via a 9v PP3 battery (>18 hours use) or via external DC power. There is an on/off switch and a low power LED light.

Glensound belt pack cases are very rugged to withstand the rigours of portable use. There are loop anchor points on each of the front corners for shoulder straps or tying down, and there is a belt clip.

See also the GS-HA011 (below) which is a similar unit but with the addition of input gain control and a transformer balanced input.

Input: Electronically balanced
Input Impedance: >40k ohm
Output Range: -20dBu to +10dBu
Frequency response: < -1dBu 50Hz - 16KHz
Noise: >-80dBu CCIR Un-waited Q Peak @ Line up
Max O/P: +19dBu into 10K ohms
Max O/P: +16dBu into 600 ohms
Distortion: 0.15% 100 - 1kHz
Distortion: <0.02% 1K - 10KHz
DC supply: 12-20v
Power consumption:  19mA Quiescent (0.171 Watts).  28mA 0dBu Input 32 ohm headphones volume at line up = 0.252 watts
Battery: 9v alkaline PP3
Battery life: >18 hours (Alkaline battery in normal conditions)
Low battery LED: at 6.0 volts
Optimal Headphone Impedance: 32-1000 ohm
Length: 153mm
Width: 73mm
