• Internal switch mode power supply (100 to 250 VAC)
• Size 190 x 98 x 180 mm
• Single 4 wire circuit
• Program audio input
• Front panel or external Mic with gain control
• Compressor/ limiter circuit for mic
• Lever key for mic operation
• Relay output when mic live
• 4 wire & program inputs transformer balanced
• 4 wire & program Inputs have gain controls
• Audio present LED indication for 4 wire and program inputs
• Front panel Loudspeaker

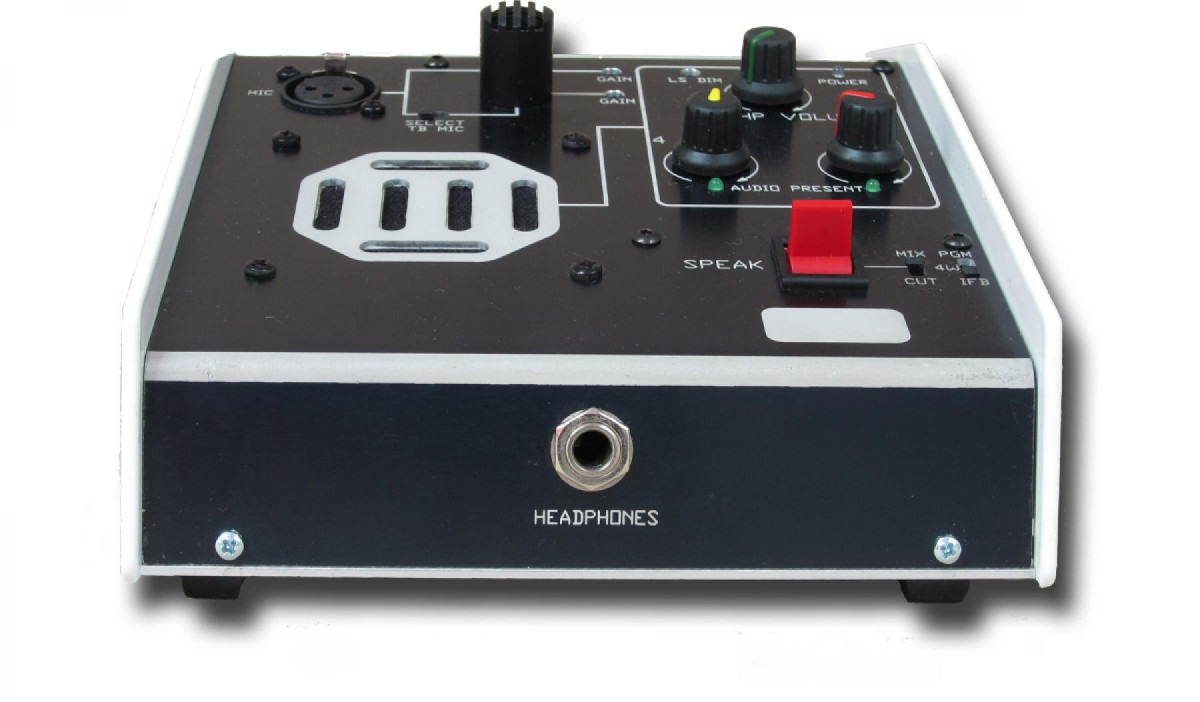

• Headphone Jack (breaks LS)
• Overall LS/ Headphone volume control
• Variable LS dim (when lever key switched)
• 4 wire input can be switched to 4 wire output (IFB)
• Program input can be switched to 4 wire output
• When mic is operated if 4 wire or program inputs are selected to output the unit can be set to either mix or cut the incoming 4 wire/ program feed with the mic

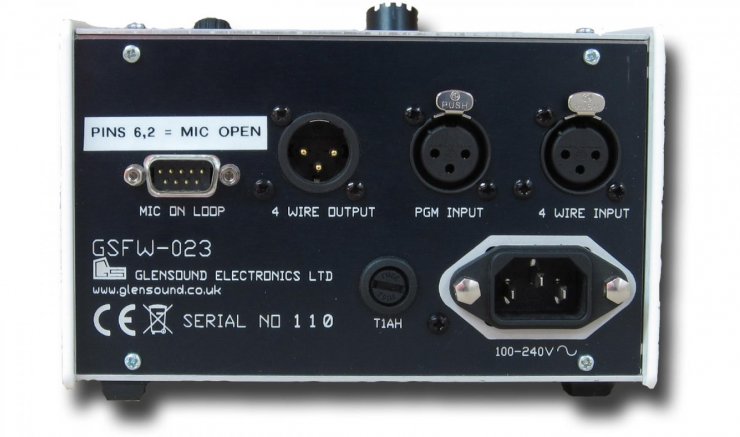

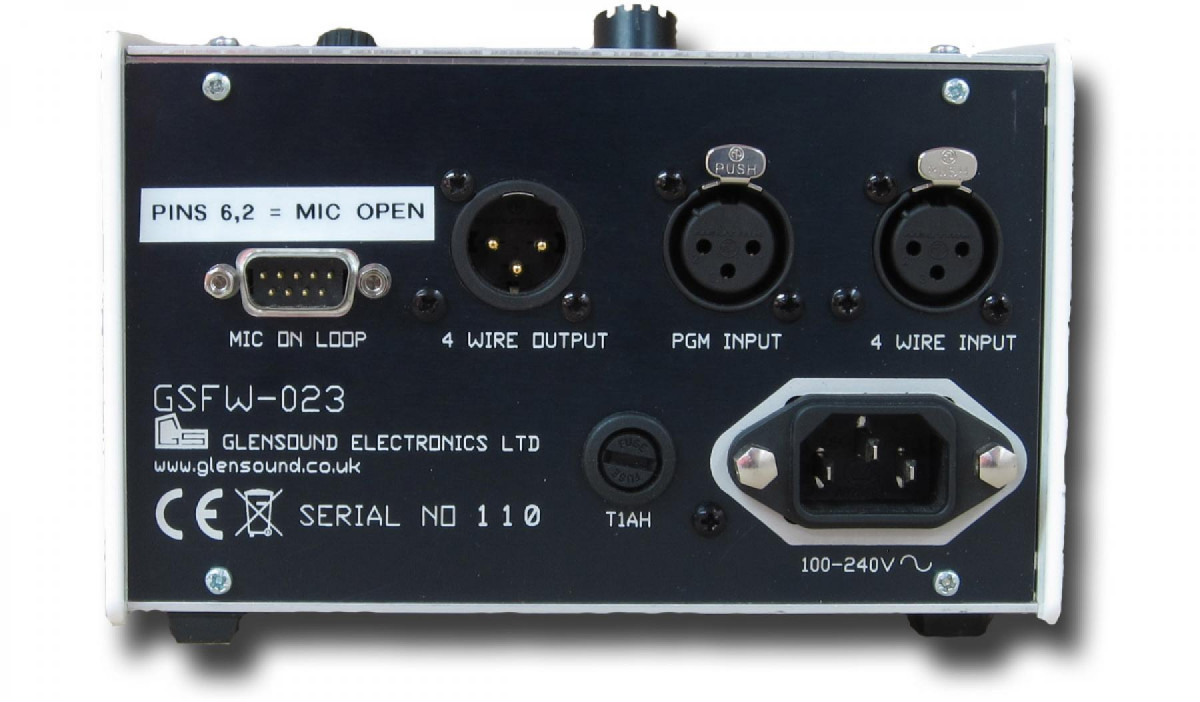

• Audio connections on rear panel XLRs

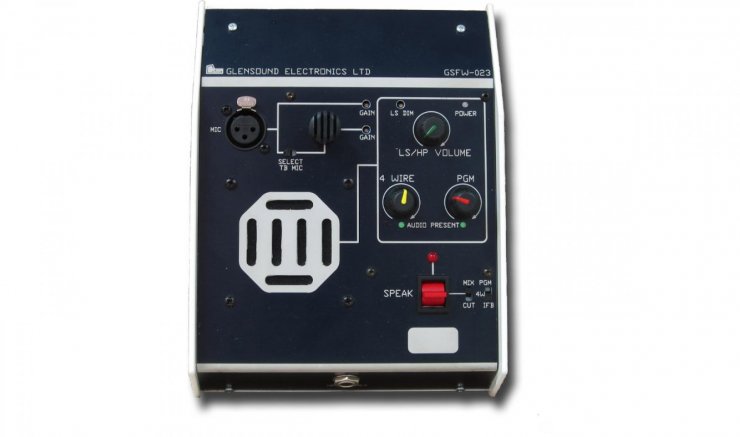

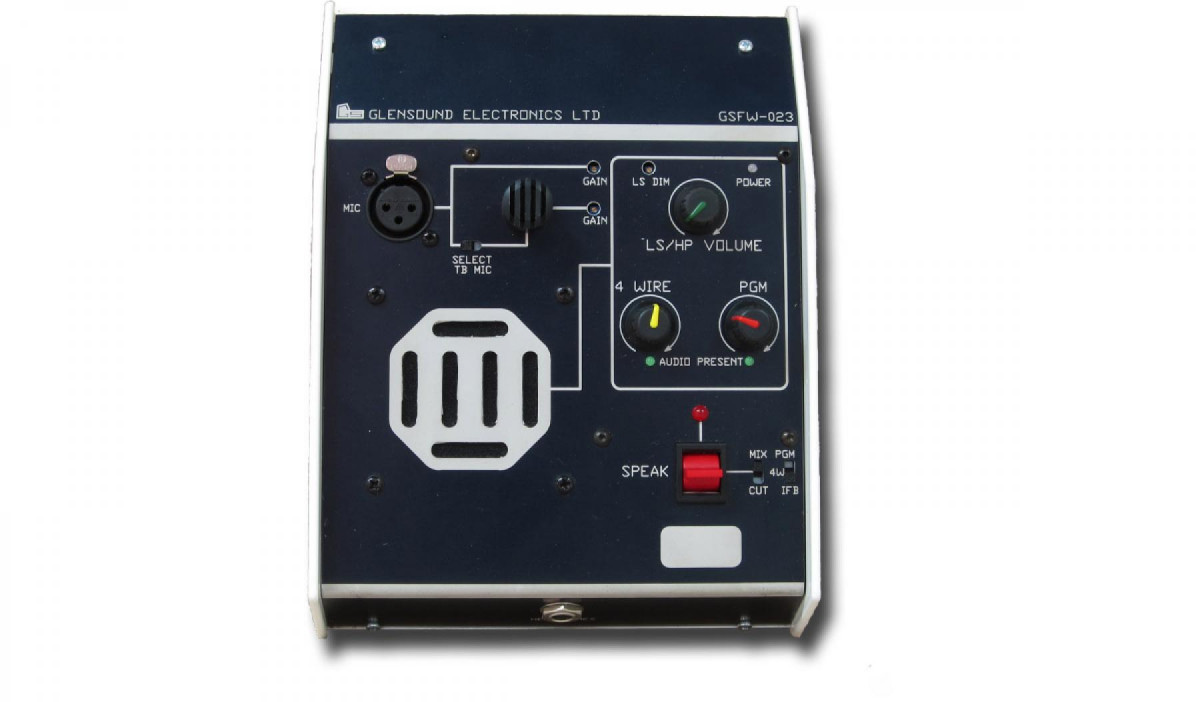

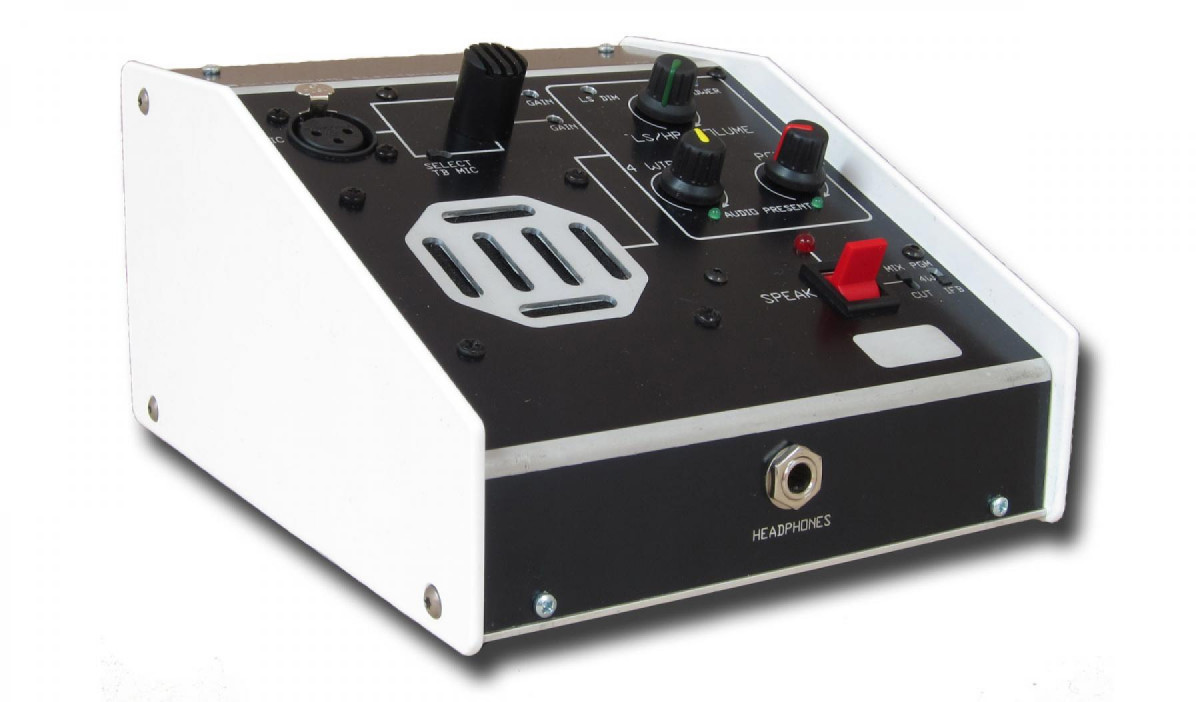

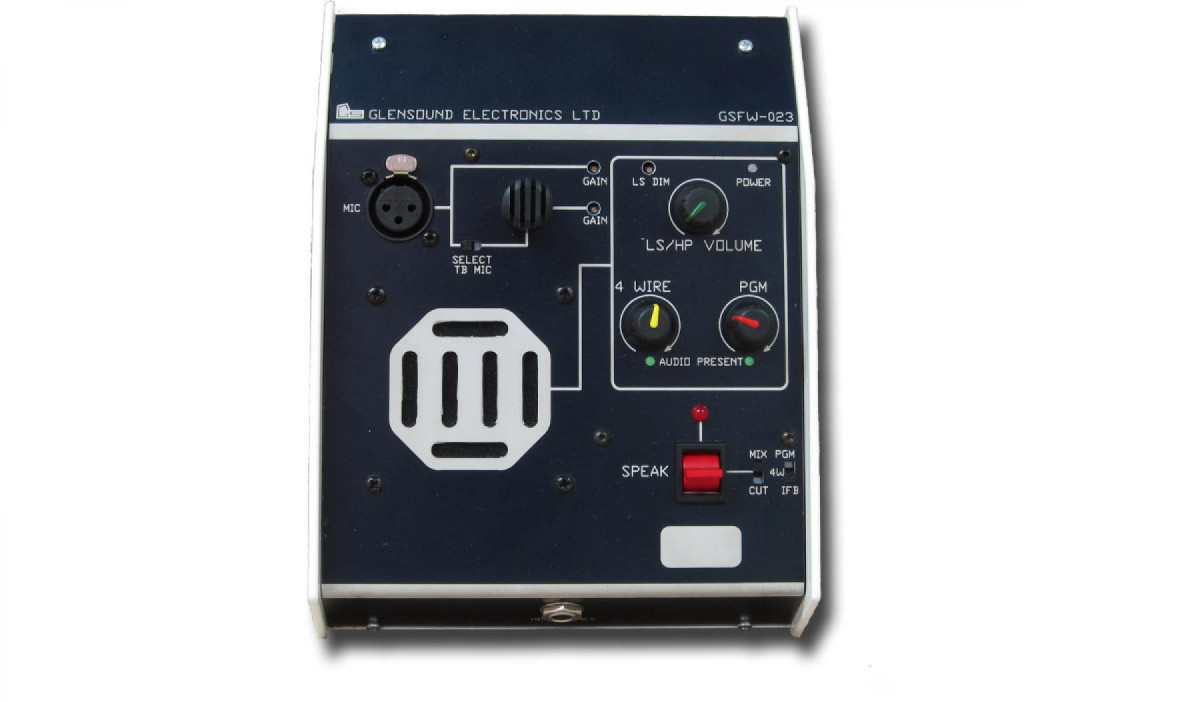

• FW023 Views A2-16162
• GS-FW023 Block Diagram
