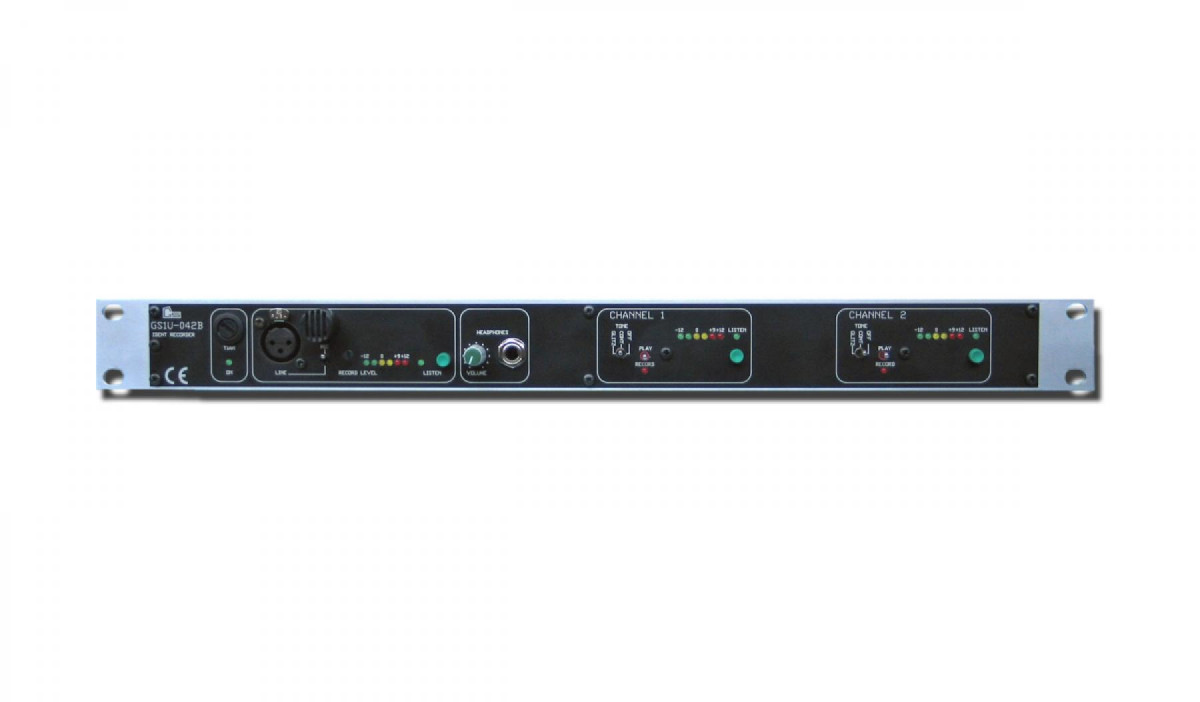

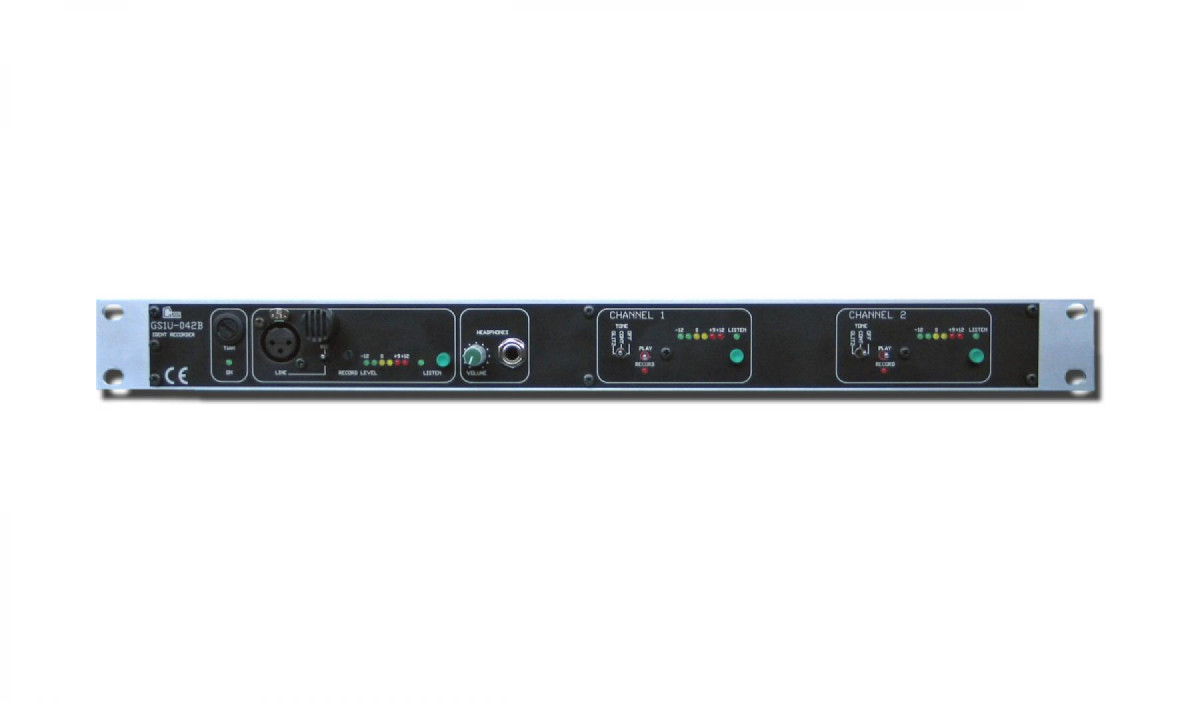

1U042B Front BAN

GS-1U042
Stereo Line Ident With Glitz Tone

Features Description Downloads Ask a Question
  • Stereo line ident
  • Up to 25 seconds recording
  • Plus 3 seconds of 1kHz tone or stereo GLITZ tone
  • Stereo audio inputs
  • Changeover relay
  • Front panel mic
  • Headphone monitoring

This mains powered 1U subrack utilises the same identification recording technology as the 2U-007. It has two channels of Identification, each of these channels records a mono signal the output of which is reproduced as a stereo signal. There are three playback modes each one continuously repeated:

One: Up to 25 seconds of speech
Two: Up to 25 seconds of speech followed by 3 seconds of tone.
Three: Up to 25 seconds of speech followed by stereo GLITZ Tone.


Each channel has a balanced audio input, this audio input can be switched via a relay to the audio outputs instead of the recorded identification message. Control of the changeover relay is done via a rear panel 9 way 'D' socket, start and stop of playback can also be controlled via this D socket.

Monitoring is provided by an inbuilt headphone amp and recording can be done either by a front panel microphone or from an external line level input.
