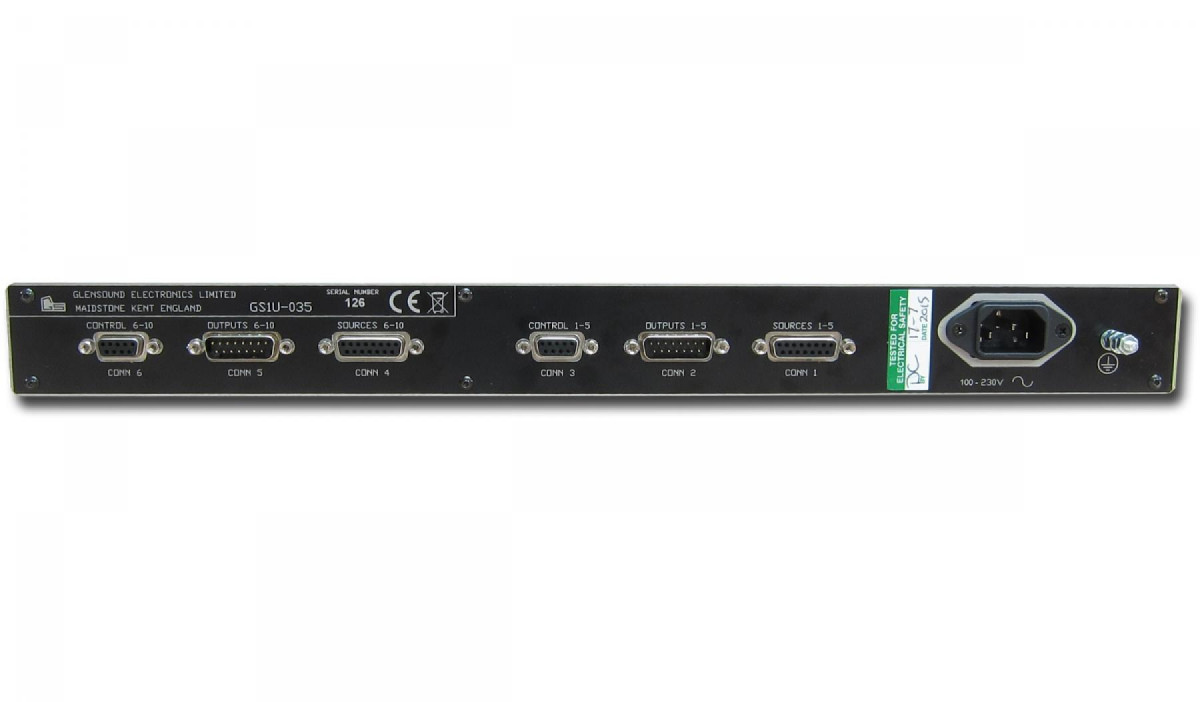

1U035 Front BAN 1U035 Angle BAN 1U-035 Rear BAN

GS-1U035
Line Ident Unit With 10 Channels & Remote Switching

Features Description Specification Ask a Question
  • 10 channel line ident
  • Message recorded with 3s of 1kHz tone
  • Inbuilt microphone
  • Balanced audio input and output
  • Remote switching between ident and line input

This is a 1U 10 Channel Identification subrack. Each of the 10 channels stores a message followed by 3 seconds zero level 1kHz tone. An inbuilt microphone with compressor and limiter makes it very easy to record messages, provision is made for an external recording source. Each channel has a balanced audio input via a rear panel 15 way 'D' plugs, this audio input can be switched via a relay to the audio outputs instead of the recorded identification message. Control of the changeover relay is done via a rear panel 9 way 'D' sockets. Audio outputs are balanced and are on two rear panel 15 way 'D' sockets. Each channel also has a front panel jack that provides an output/ listen of the channels recorded message.

Nominal Output level (Ident): 0dBu
Output Level (Tone): 0dBu
Output type: Electronically balanced
Output Impedance: Output connectors (Rear): 2 off 15 way D plug
Output connector (Front): 6.35mm Jack Socket
Input connectors (Rear): 2 off 15 way D plug
Relay Switch Control: 2 off 9 way D sockets
Relays: Long life PdRu
External Line level input impedance: >56K
External Line level connector: Front panel 6.35mm Jack socket

Size: 19" 1RU 250mm deep (excluding connectors)
Weight: 2.28 Kg
Mains Voltage: 100 - 250 VAC
Power Consumption: 7.5 Watts

Supplied Accessories: IEC mains lead, Handbook
