• DANTE PoE Intelligent Monitor Speaker
• 2 way bi-amplified design
• 23w when on PoE+ or 28w when on local DC power
• 2 analogue inputs on XLR (also sent to network)
• 4 network audio inputs
• 100mm VESA Mount

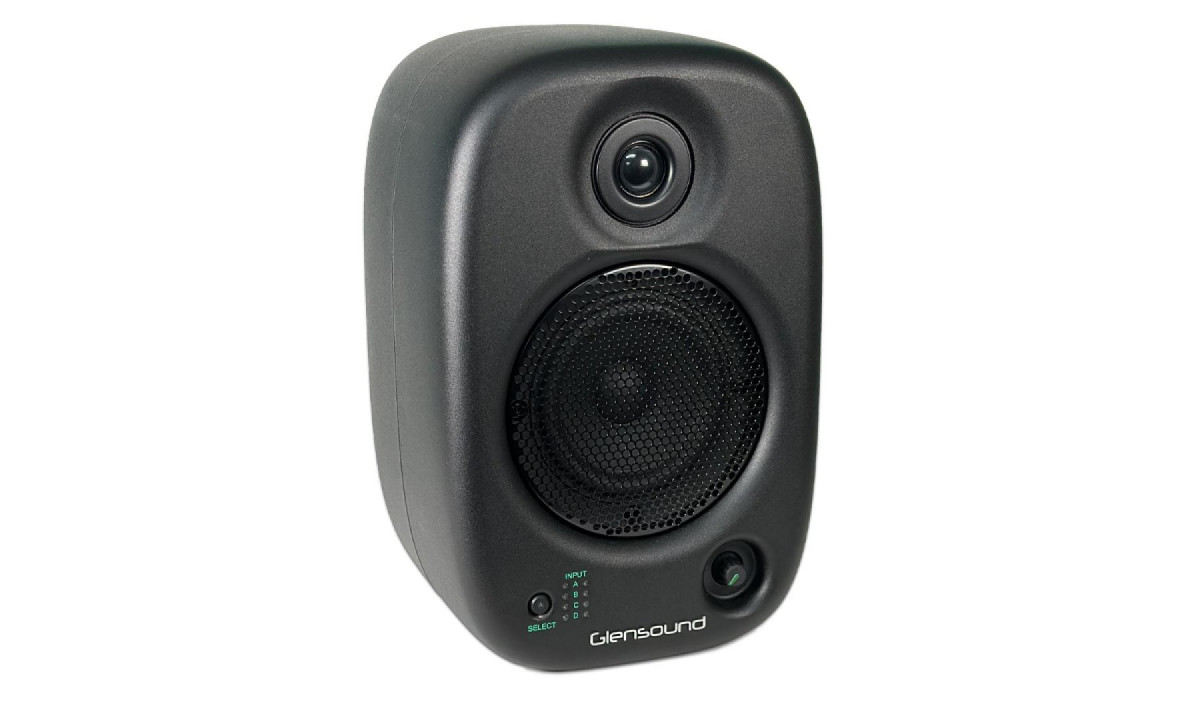

The Greater Divine is the evolution of the iconic and award winning Divine intelligent loudspeaker.  It has all the same functionality that made the Divine so popular, then builds on it to attract new fans in the studio monitor world, where the accuracy of audio reproduction becomes more important, and an abundance of usuable volume level is required.

So What's New?

The Cabinet
An all new larger enclosure.  The Greater Divine is about twice the size of its predeccsor, but the good news - it's still a solid aluminium casting.  This gives us a sold, stable, non resonating platform to work from for acoustic design. And as we designed the casting, it is of course beautifully curved.

As we expect the Greater Divine will also be used by front of house engineers and outside broadcast, it is designed for a tough life of regulalry being moved.  The solid aluminium will give you the confidence that being moved and receiving the odd knock will not be a problem.

For mounting there is 100MM VESA mounts on the rear.

Porting
Internally, the Greater Divine has a stunning and elegant bass reflex port.  Many months of tuning and sampling with 3D printed models, has fine tuned the available space internally to produce a snappy extended bass response.

More Network Power
There is now a PoE+ power design, with class D amplifiers.  When the Greater Divine is presented with PoE+ from the switch, the amplifier will have 23W RMS.  This gives a significant injention of power on tap from a network speaker.

Even More Local Power
We have added a 24VDC power input via a 4 pin XLR, so if PoE is not available the Greater Divine can still be powered.  When there is a local power connection the Greater Divine can realise its full power potential with an output now of 28w.

Analogue Inputs + Network Inputs
There are still 4 network audio sources available, but we have added two XLRs on the rear for analogue inputs (also routed to Dante).  We therefore have local power and local analogue inputs so the Greater Divine can also act as a traditional active monitor speaker.

Bi-Amplified Twin Drivers
The Greater Divine is a 2 way speaker.  There is a separate amplifier for each driver and a digital crossover.

Plus All Of The Great Original Functionality Of The Divine

Internally a Digital Signal Processor (DSP) takes careful care of the audio signals, including state of the art compression and limiting circuits, while a microprocessor provides full setup and control via our Windows application GlenController including the ability to group multiple Greater Divines together and control their level simultaneously.

The Greater Divine can receive up to four* Dante (AES67 compliant) audio over IP (AoIP) inputs. These inputs can be selected by the user on a large clear front panel select switch. The four audio inputs can also be easily mixed together and their individual levels adjusted.

A priority system is provided to allow one (or more) of the inputs to automatically duck another. This can be very useful if you want to monitor one source but also listen to another when audio is present, such as sending show relay to dressing rooms in a theatre but having the stage manager's call and building fire alarm take precedence when they’re active.

Standard microphone stand threads are also provided in the base for an alternative support solution. (5/8" 27TPI & 3/8" 16TPI)

Different preset EQs and an LF cut can all be set in the user menu to allow the Divine to be used for a variety of applications.
The Greater Divine is so much more than just another powered loudspeaker.

* From a maximum of 2 network locations.

AUDIO
Amplifier Type Low Noise Class D
Amplifier Power:  10 Watts PoE, 23 Watts PoE+, 28 Watts DC power
Amplifier THD + Noise 0.02% @ 1 Watt @ 1kHz
Digital Line Up User selectable -24, -20 -18 dBFs
Input Gain Boost 0, +6, +12 +18dB
Input Channel Gain Trim +/-16 dB
Tweeter Impedance 8 Ohms
Tweeter Cone Type
Tweeter Magnet
Woofer Impedance:
Woofer Cone type:
Woofer Magnet:
Crossover:
LF Cut User selectable (on/off ) Knee X Hz 12dB/Octave
Voice EQ Frequency Settings 300Hz to 3kHz 12dB/ Octave
Frequency Response 93Hz-20kHz

NETWORK
Connector Neutrik EtherCON (mates with standard RJ45)
Type 100 Mbit/s
AoIP Audio Dante® Audinate Ultimo chipset (AES67 Compliant)
AoIP Audio Sample Frequency 4 channels @ 48k or 2 channels @ 96k (Dante® only)
AoIP Resolution Up to 24 Bit

POWER
Powered by:  PoE or PoE+, Complies to: IEEE 802.3af-2003, Classification Class 0
Consumption:  12.8 Watts on PoE
PoE(+) Source:   Can be powered by PoE(+) enabled network switches or Mid-Span PoE injectors
Energy Saving Mode Automatic energy saving mode (shuts down power amplifier when no audio present)
User settable delay 15, 30 & 60 mins.
Local power:  24VDC via 4 pin XLR

PHYSICAL
Size:  286 x 188 x 165mm (HxWxD)
Weight 5Kg
Mechanics Bespoke diecast aluminium chassis. Powder coated and printed with UV stable ink.
Mounting Points 100mm x 100mm VESA mount 2 of mic stand thread socket 5/8" 27TPI & 3/8" 16TPI
Packaging Printed Retail cardboard box, packed inside plain rugged cardboard box
Individual Shipping Weight 5.5Kg

ENVIRONMENTAL
Operating Temperature: 0 to +50°C (32 to 122°F)
Storage Temperature: -20 to +70°C (-4 to 158°F)
Relative Humidity: 0 to 95% non-condensing

INCLUDED ITEMS
Quick Start Guide Printed folded A4 (Full handbook by download)
RJ45 Network Cable 2 metre Cat5 RJ45plug /RJ45plug cable
