Comedia-V
PoE 4 Input Active DSP & Network Control Amp

Features Description Specifications Remote Control Downloads Ask a Question
  • Intelligent 10W Class D audio amplifier for Dante/AES67 networks

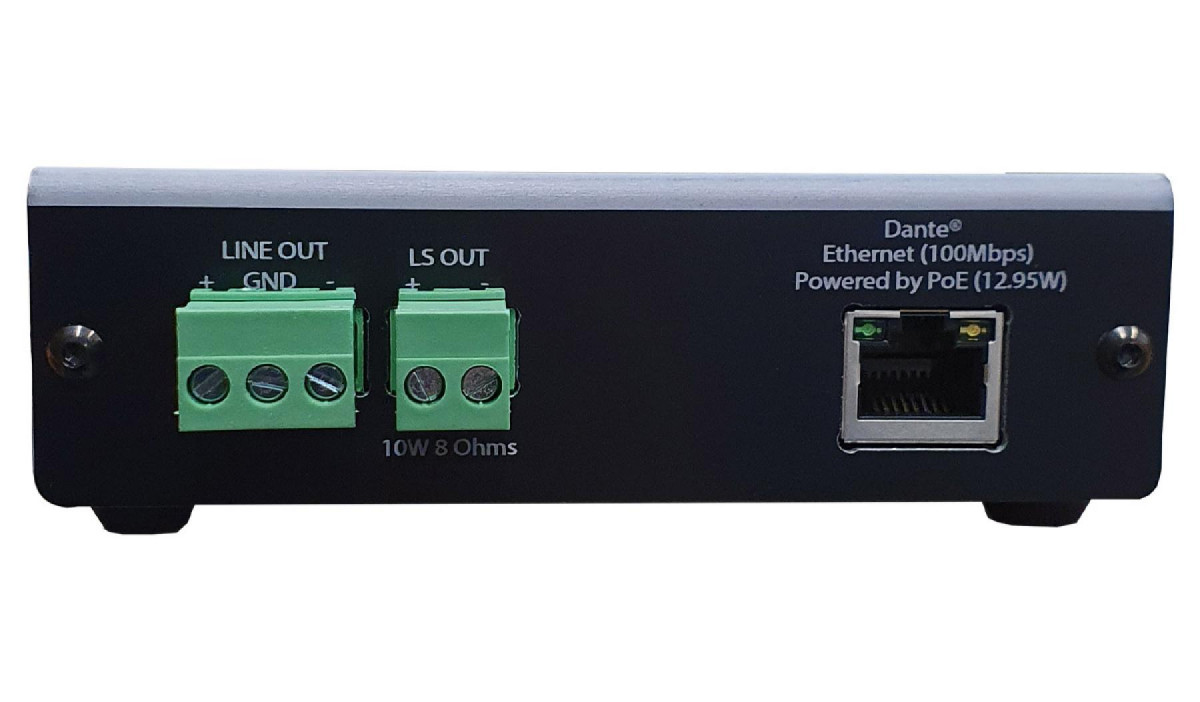

  • Speaker terminal output plus line level
  • PoE powered so just a single cable connection
  • Monitors 4 incoming Dante/AES67 channels
  • Set priority override on one input to interrupt another
  • Multi mode tricolour LED PPM meters

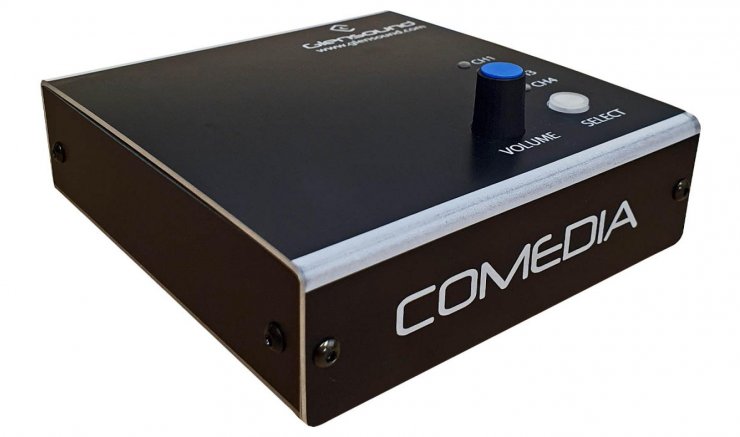

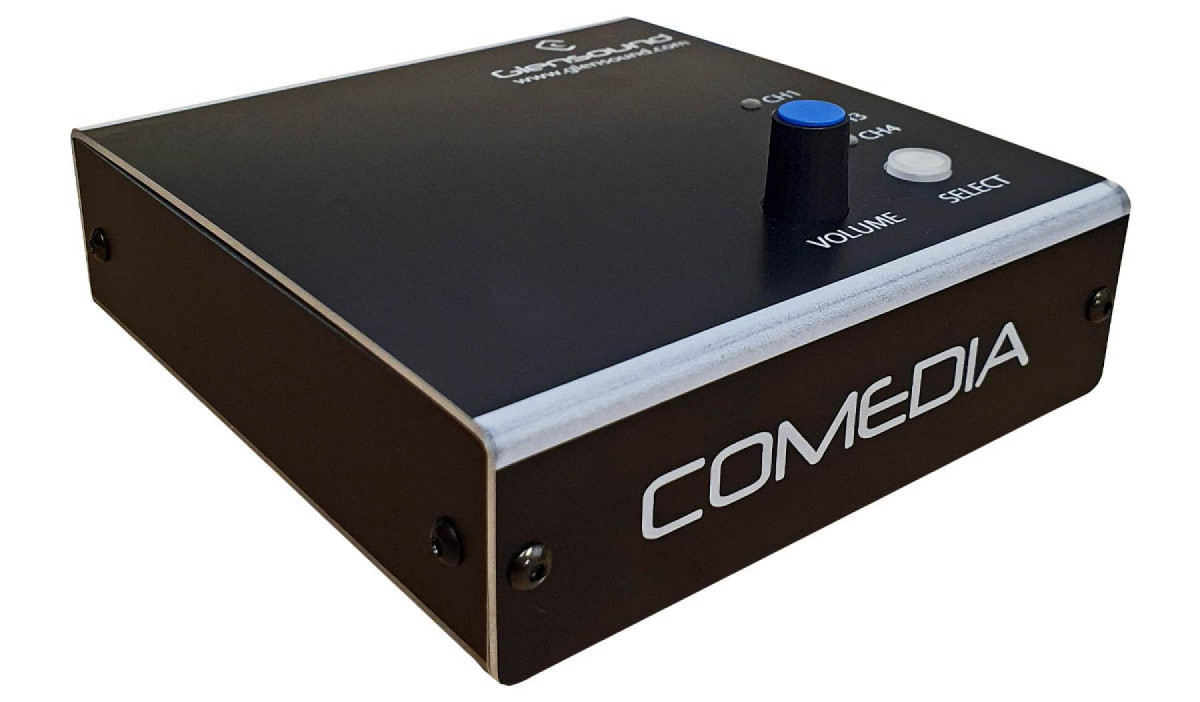

The Comedia-V is a network audio loudspeaker amplifier powered by Power over Ethernet (PoE) and boasts the very latest low noise high output class D power amplifier.

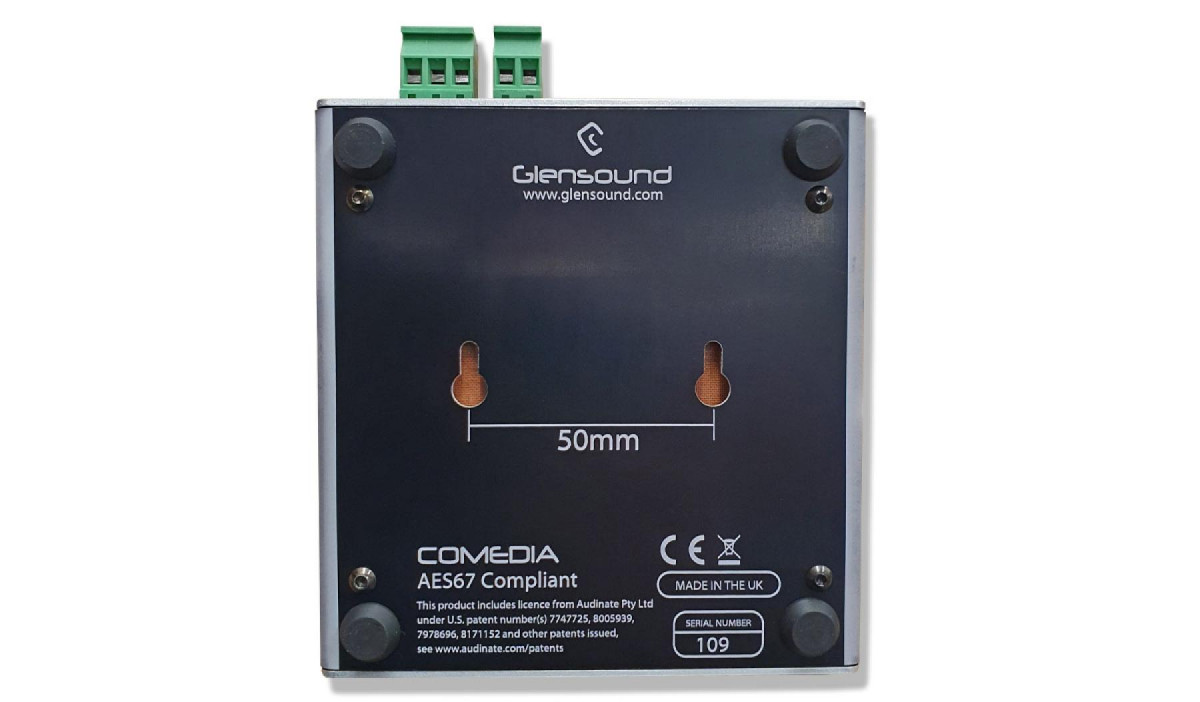

Internally a Digital Signal Processor (DSP) takes particular care of the audio signals, including state of the art compression and limiting circuits. Control of setup and day to day operation of the Comedia is also available on our Windows 10 application Glensound Controller including the ability to group together multiple Comedia units and control their level simultaneously. The rugged and lightweight aluminium enclosure has holes to allow for wall or ceiling mounting.

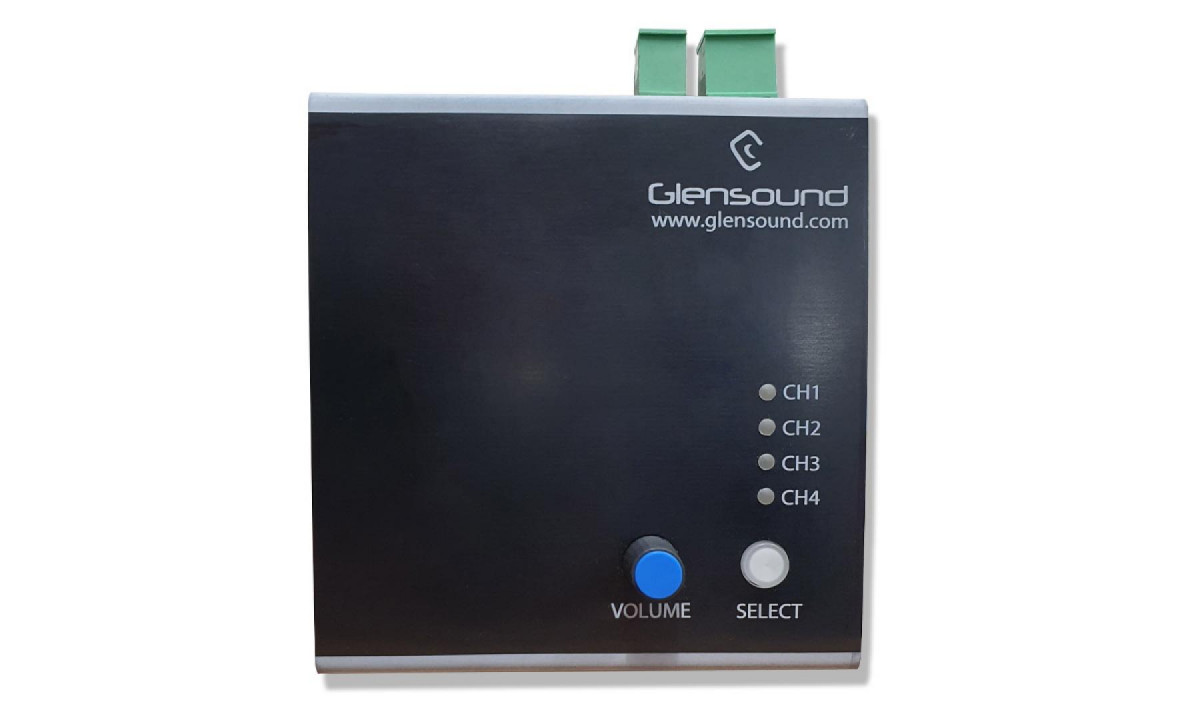

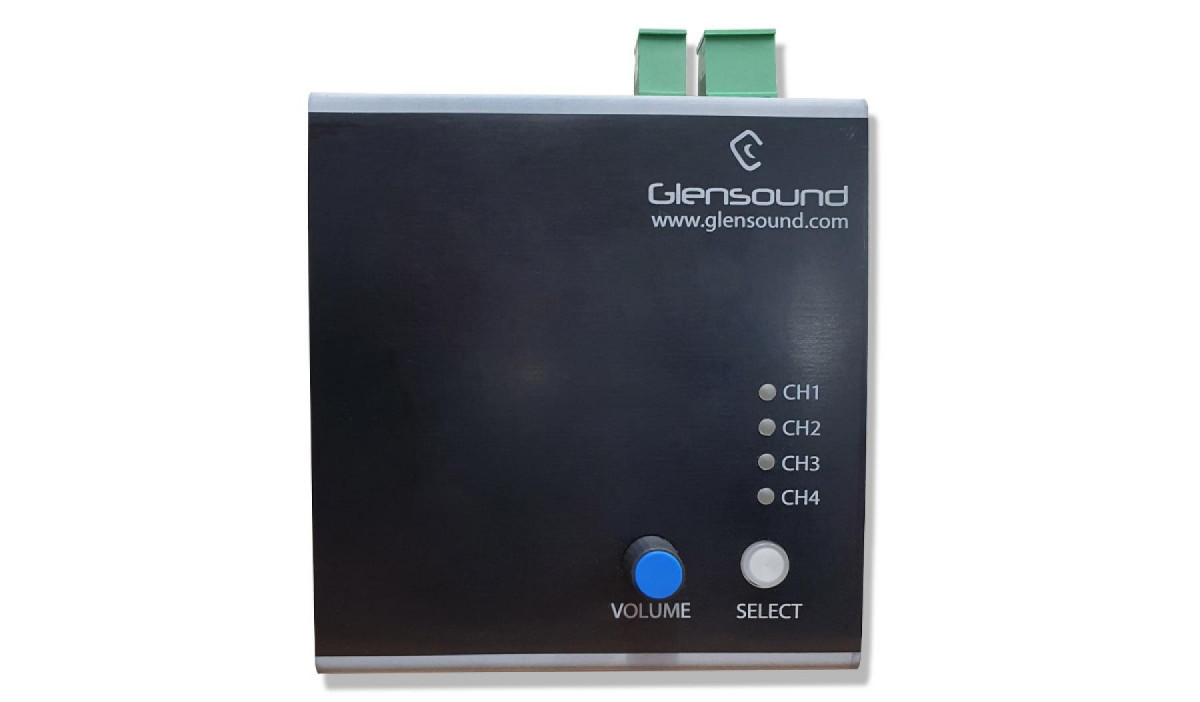

Comedia-V can receive up to four Dante (AES67 compliant) audio over IP (AoIP) inputs. These inputs can be selected by the user on the front panel with a button and four LEDs to indicate the channel. The four audio inputs can also be easily mixed together and their individual levels adjusted.

A priority system is provided to allow one (or more) of the inputs to automatically duck another. This can be very useful if you want to monitor one source but also listen to another when audio is present, such as sending show relay to dressing rooms in a theatre but having the stage managers call and building fire alarm take precedence when they’re active.

Different preset EQs and an LF cut can all be set in the user menu to allow the Comedia to be used for a variety of applications.

AUDIO

Amplifier Type Low Noise Class D

Amplifier Power 10 Watts

Amplifier THD + Noise 0.02% @ 1 Watt @ 1kHz

Digital Line Up User selectable -24, -20 -18 dBFs

Input Gain Boost 0, +6, +12 +18dB

Input Channel Gain Trim +/-16 dB

Loudspeaker Impedance 8 Ohms

LF Cut User selectable (on/off ) Knee X Hz 12dB/Octave

Voice EQ Frequency Settings 300Hz to 3kHz 12dB/ Octave



NETWORK

Connector Neutrik EtherCON (mates with standard RJ45)

Type 100 Mbit/s

AoIP Audio Dante® Audinate Ultimo chipset (AES67 Compliant)

AoIP Audio Sample Frequency 4 channels @ 48k or 2 channels @ 96k (Dante® only)

AoIP Resolution Up to 24 Bit


POWER

PoE Powered by PoE, Complies to: IEEE 802.3af-2003, Classification Class 0

Consumption 12.8 Watts

PoE Source Can be powered by PoE enabled network switches or Mid-Span PoE injectors

Energy Saving Mode Automatic energy saving mode (shuts down power amplifier when no audio present)

User settable delay 15, 30 & 60 mins.



ENVIRONMENTAL

Operating Temperature: 0 to +50°C (32 to 122°F)

Storage Temperature: -20 to +70°C (-4 to 158°F)

Relative Humidity:  0 to 95% non-condensing



INCLUDED ITEMS

RJ45 Network Cable 2 metre Cat5 RJ45 plug /RJ45 plug cable

The Comedia-V can be remote controlled via the GlenController.  click for info
