• Balanced Audio Channels
• Audio interface for Dante / AES67 networks
• Simple AoIP audio interface for professional location work
• Robust, Reliable & Lightweight
• Powered by PoE

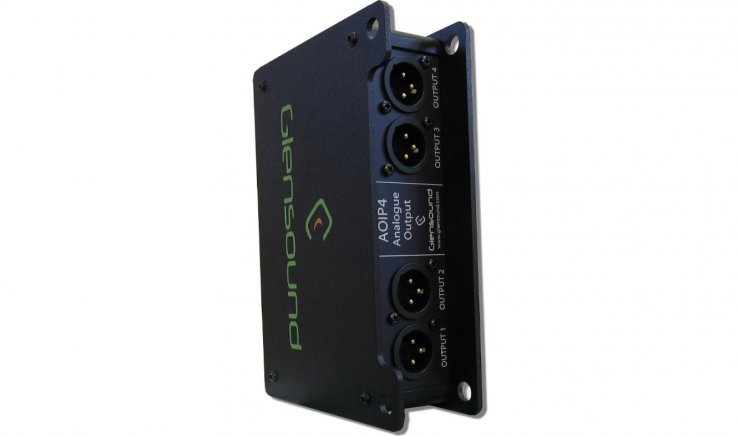

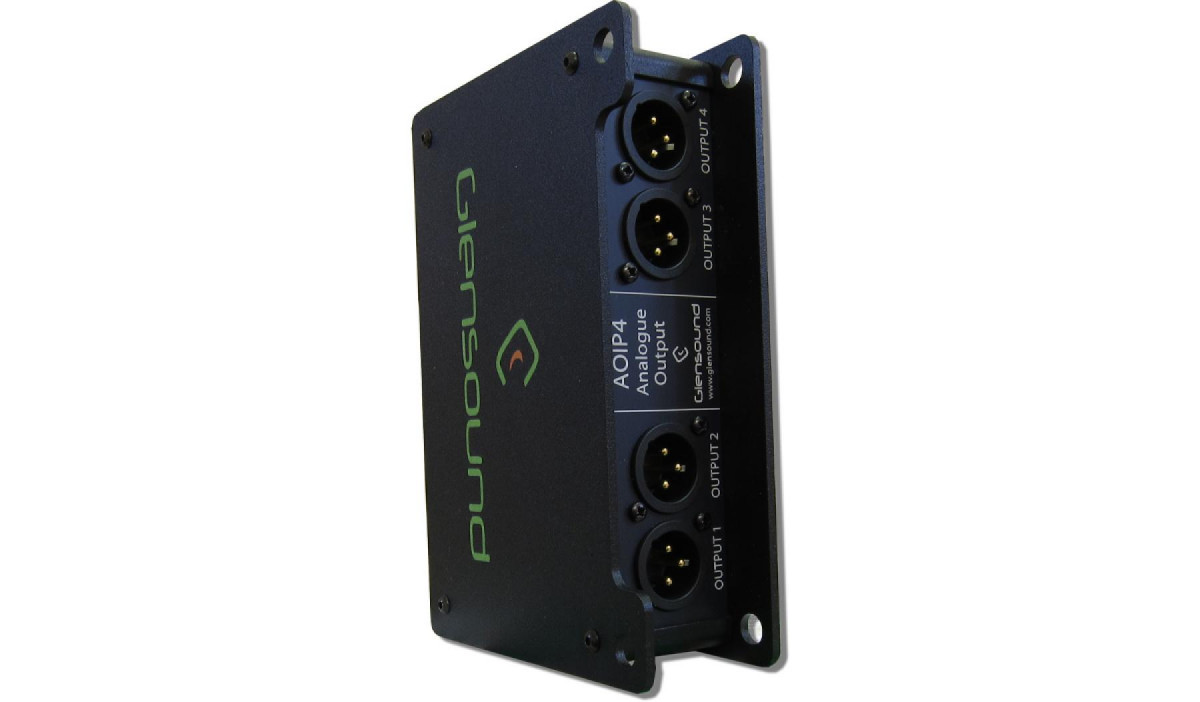

The Glensound AoIP4O is packaged in a small & rugged format and designed for outside broadcast, theatre and location applications.

Both the AoIP4O and AoIP4I units are designed to easily and quickly interface existing analogue equipment to a Dante® / AES67 network audio system. Being powered by PoE means that only one cable needs to be connected to the network to carry both audio and power, providing flexibility and saving time on installation.

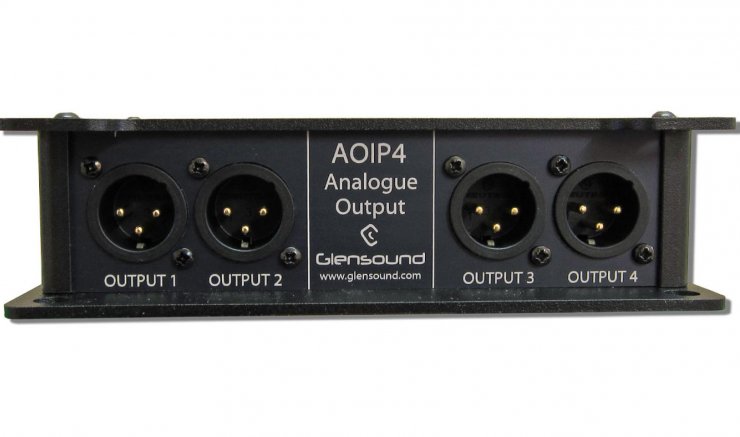

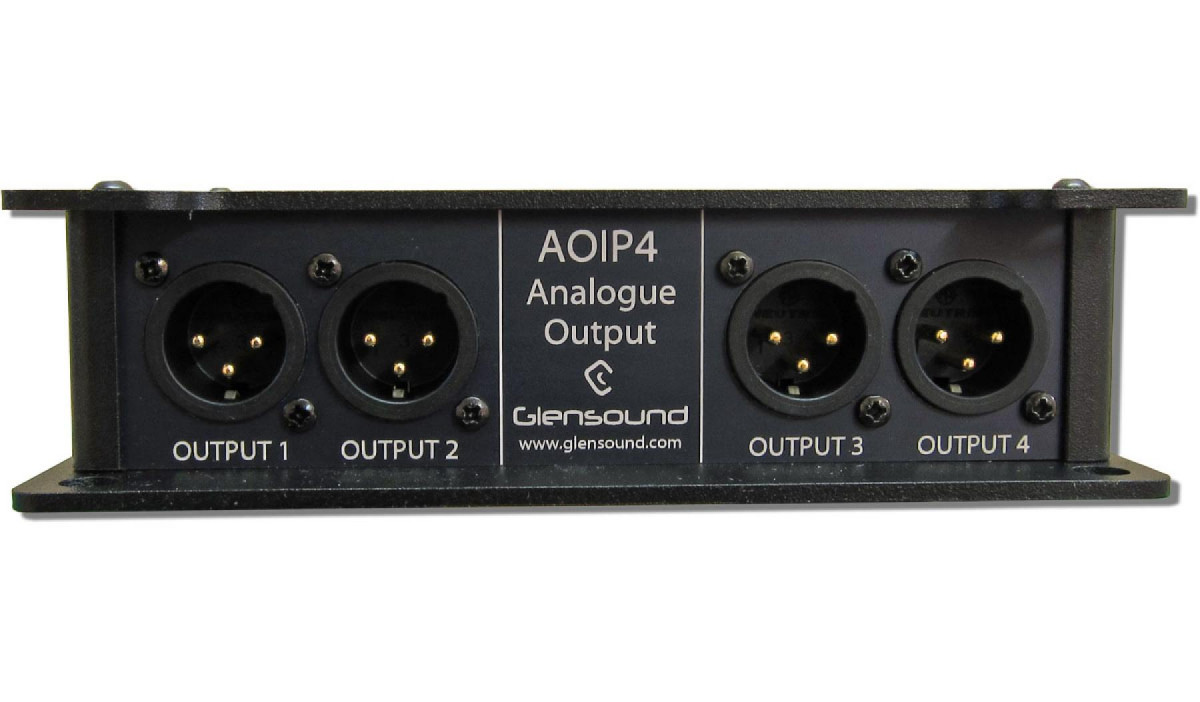

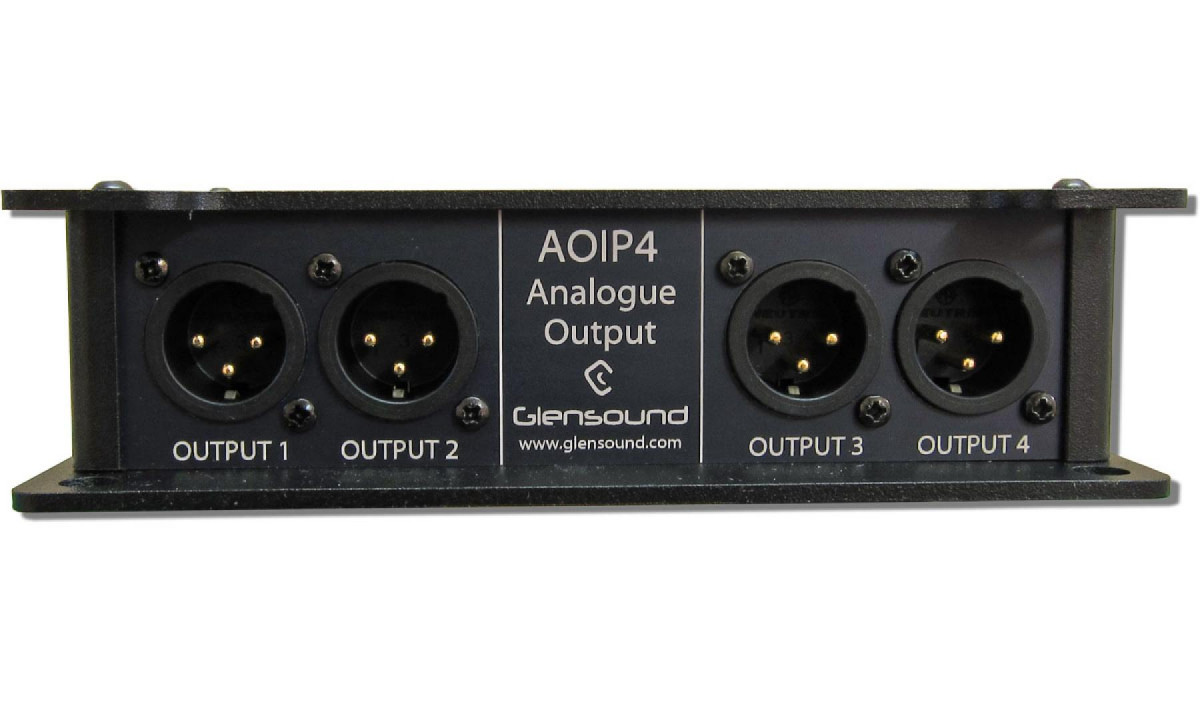

AoIP4O provides 4 balanced analogue audio Outputs from a Dante®/AES67 audio network.

Robust proven construction techniques, simple reliable interface and excellent specification will help make your technician’s life hassle free, whilst the low cost and long asset life will keep the accountant satisfied.

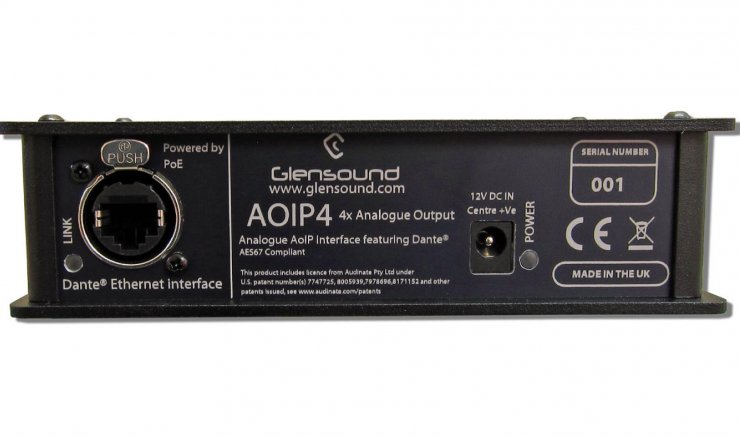

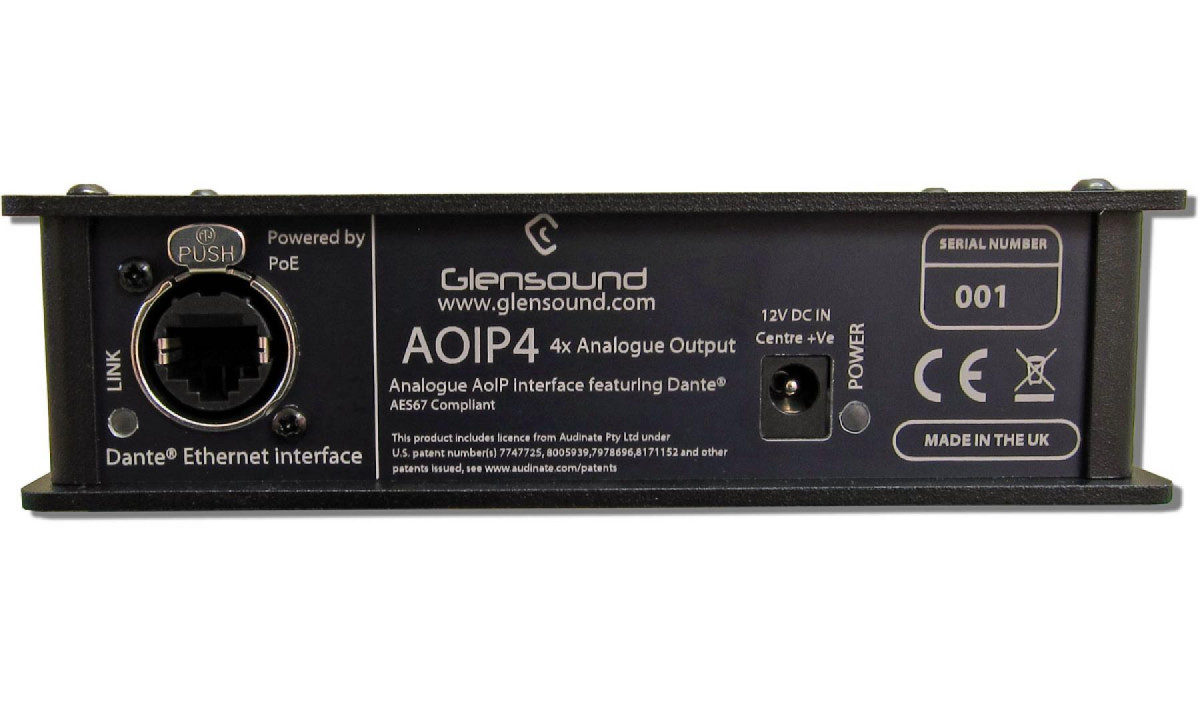

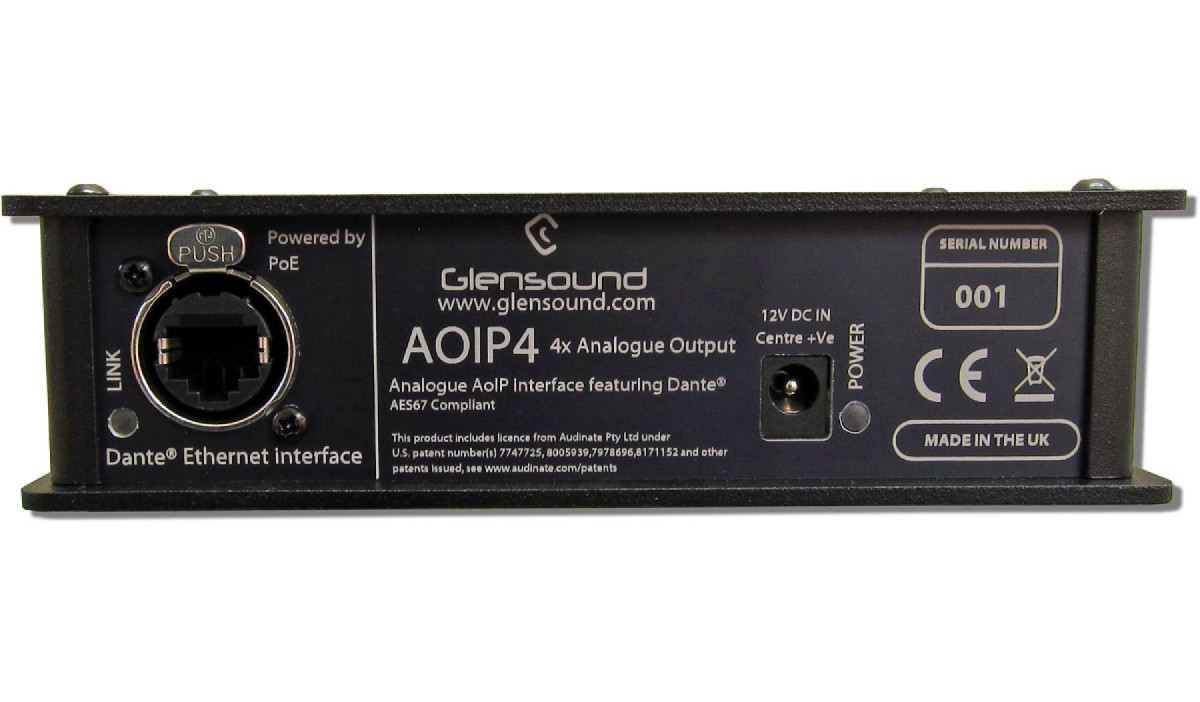

PoE Powering
For ease of setup only 1 single cable is needed to transport both power and audio to the AoIP units. The network cable carrying audio can also power the device using standard Power Over Ethernet (PoE) technology when connected to a suitable network  switch or to a mid span PoE injector.

EXTERNAL DC POWER INPUT
An industry standard barrel connector is used for powering the AoIP units from an external 12V DC power source.

REDUNDANT POWER
If both PoE and DC power sources are connected then power supply redundancy is automatically enabled, meaning that either one of the power sources can be lost and the AoIP unit will continue working.

POWER ON LED
A bright blue rear panel LED indicates that the device is turned on.

RUBBER FEET
The AoIP units are supplied with stick on rubber feet so if the AoIP4 is to be sat on a desk or the back of a workbench, then the rubber feet are fitted to stop it sliding around.

AUDIO
Frequency Response: 20Hz to 22kHz ≤ ± 0.25dB
Maximum Input Before Clip: +18dBu
Maximum Output Level:+18dBu
Input Impedance: >20 kΩ
Output Impedance:50 Ω
Distortion (Analogue in to Dante Out):0.0013% THD+N @ 1kHz Reference to +18dBu output
Distortion (Dante in to Analogue Out):0.0026% THD+N @ 1kHz Reference to +18dBu output
Noise (Analogue In & Out @ 0dBu): -92dBu (Residual)
Dynamic Range: 108dBs
Crosstalk (0dBu input to output 1kHz tone):-135dBu
Output Type:Electronically balanced (can be wired Unbalanced) on Neutrik 3 pin XLR socket
Input Type:Electronically balanced (can be wired unbalanced) on Neutrik 3 pin XLR plug
Digital Full Scale:+18dBu = 0dBFs

NETWORK AUDIO
Compatible Audio Networks:Dante® uncompressed, low latency audio. AES67
Connector: Neutrik EtherCON (also mates with standard RJ45s)
Dante Network Sample Rate: 4 Audio Channels: 44.1k, 48k, 2 Audio Channels: 88.2k, 96k
Resolution: Up to 24 Bit
AES67 Network Sample Rate: 48k
Ethernet Interface: 100BASE-TX
Chipset: Ultimo UXT-01-004 (Note: Audinate recommends no more than 10 Ultimo chipsets on one network UNLESS another Dante® device such as the Brooklyn is present)

POWER
DC Input:2.5mm Barrel, Centre +Ve, 9 - 15 Volts
Consumption: PoE: May be powered by PoE.  Complies to: IEEE 802.3af-2003 Classification Class 0
Power On LED: Bright Blue

PHYSICAL
Size: 153 x 105 x 41mm (WxDxH)
Weight: 420g
Mechanics: All aluminium construction, anodized and laser etched

ENVIRONMENTAL
Operating Temperature: 0 to +50°C (32 to 122°F)
Storage Temperature: -20 to +70°C (-4 to 158°F)
Relative Humidity: 0 to 95% non-condensing

INCLUDED ITEMS
Handbook: Paper Copy (Download also available)
RJ45 Network Cable: 2 metre Cat5 RJ45 plug/ RJ45 plug cable
Rubber Feet: 4 x stick on rubber feet
