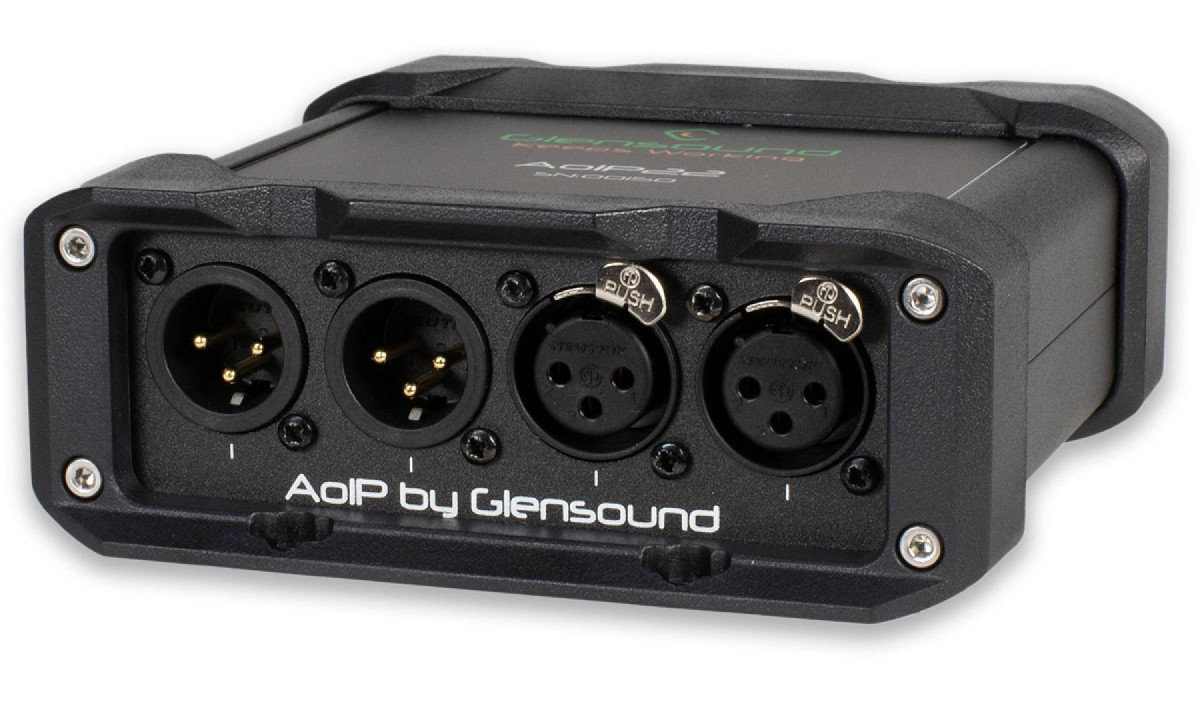

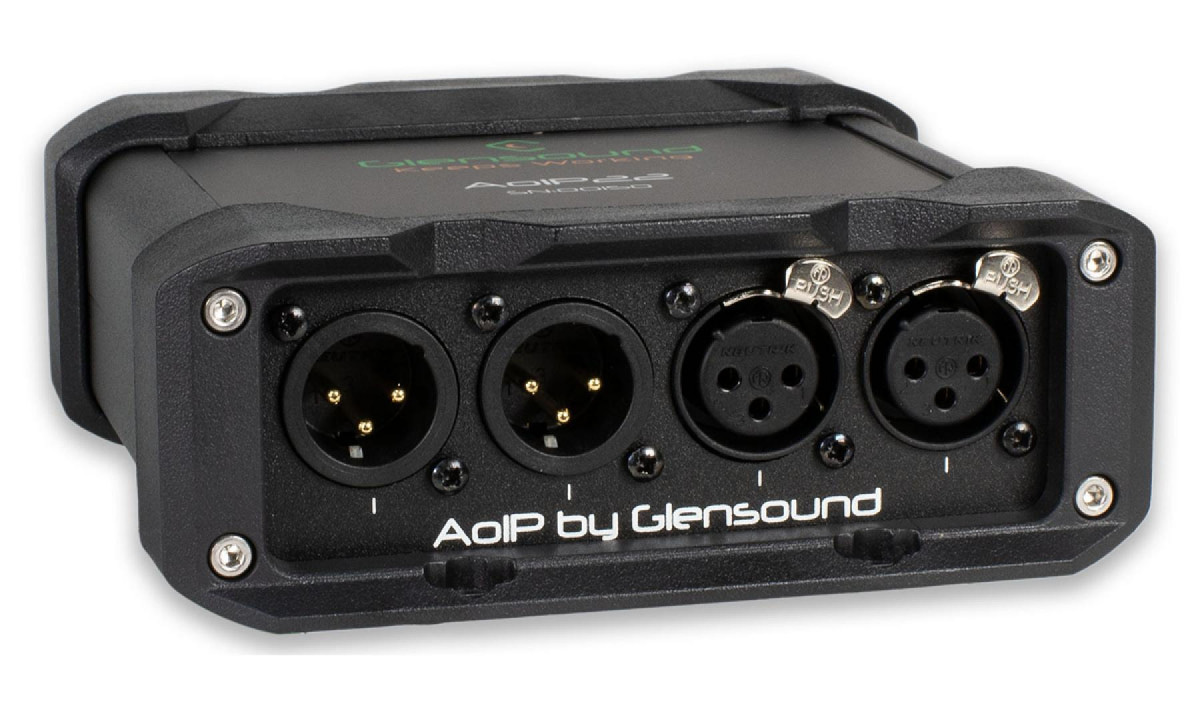

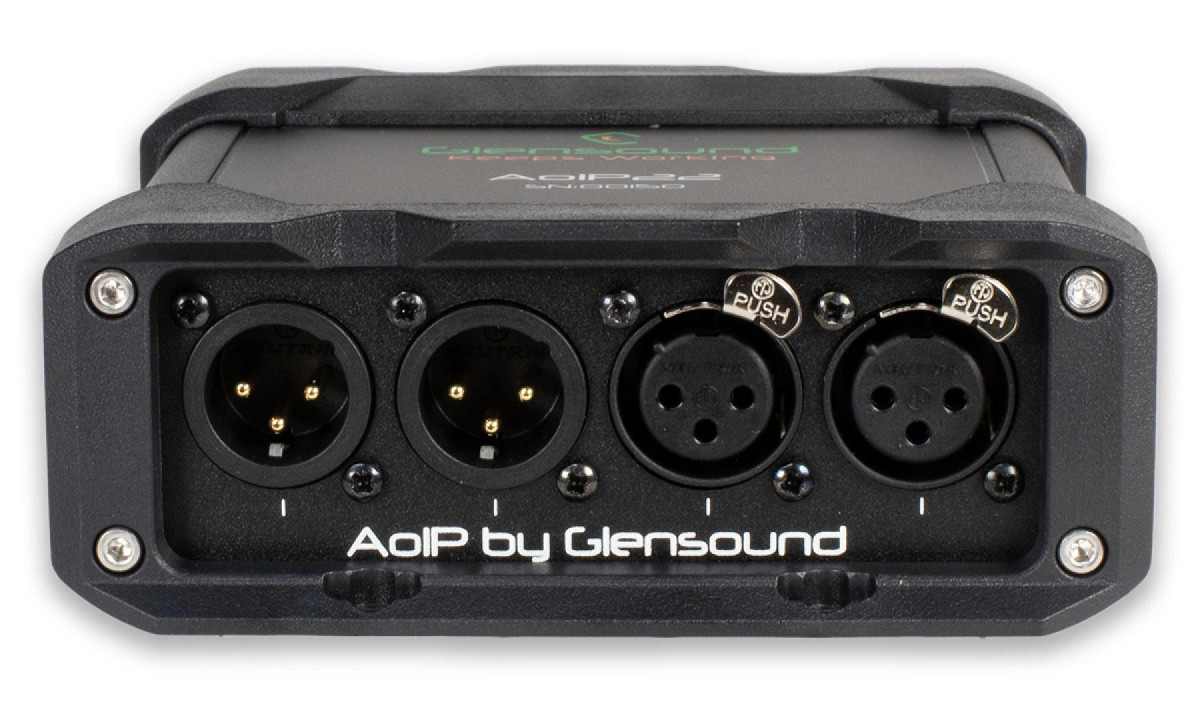

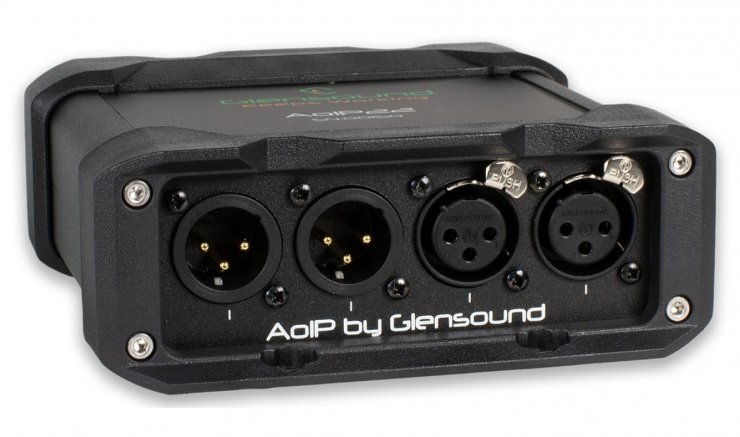

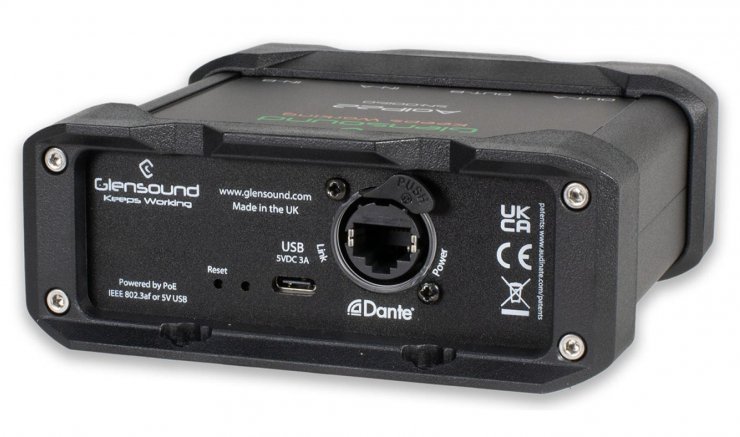

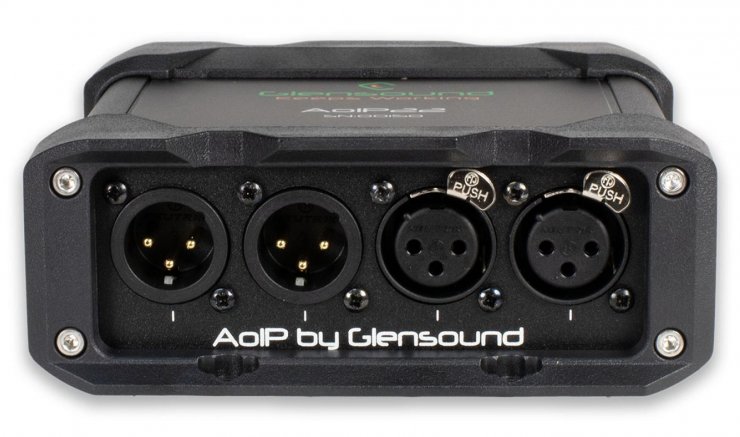

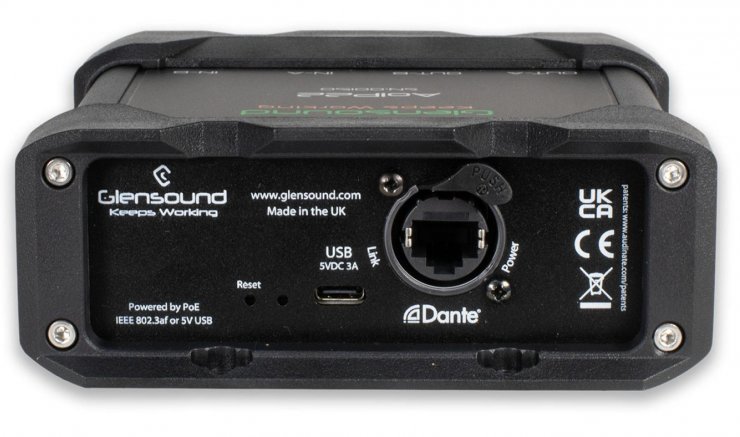

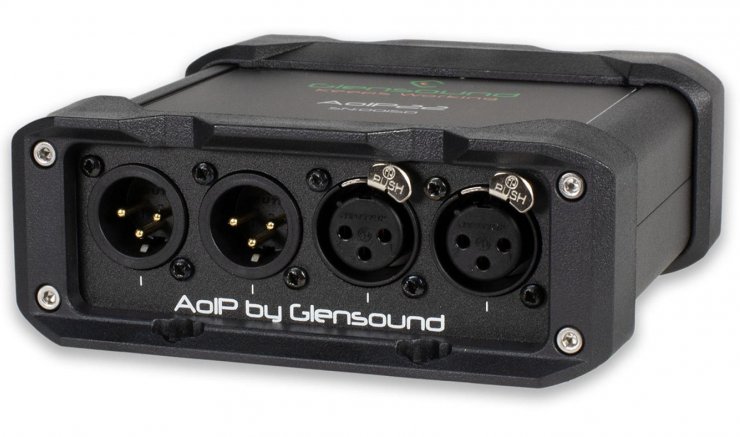

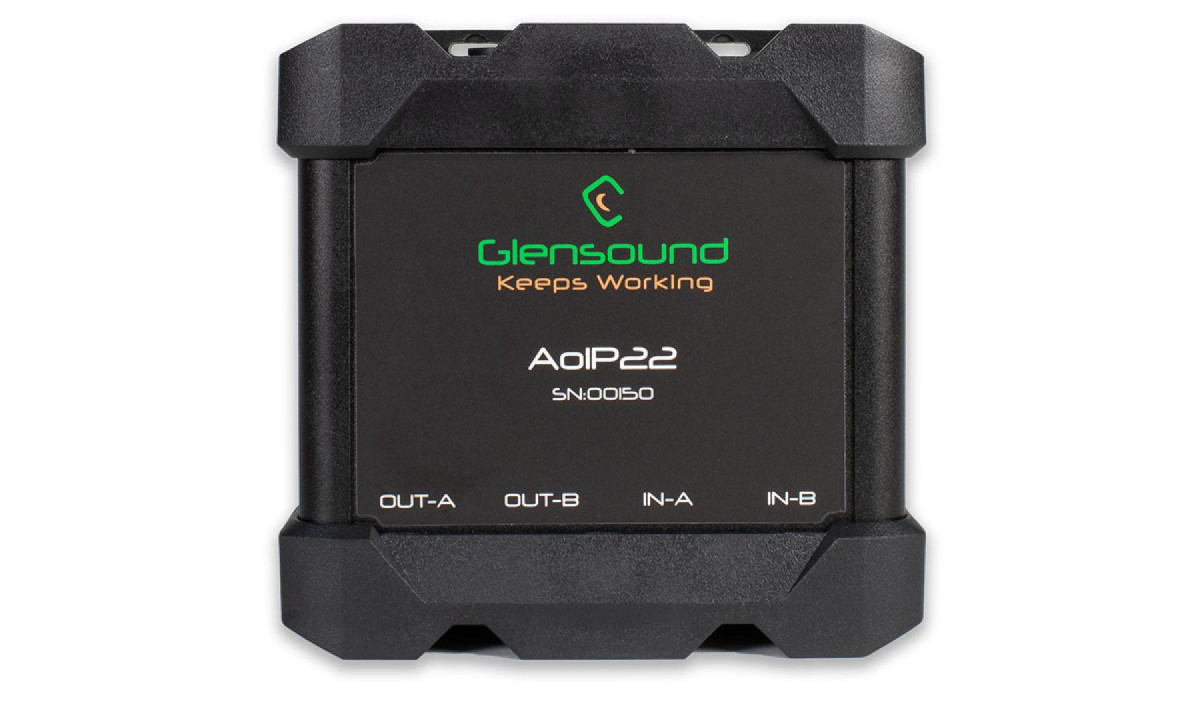

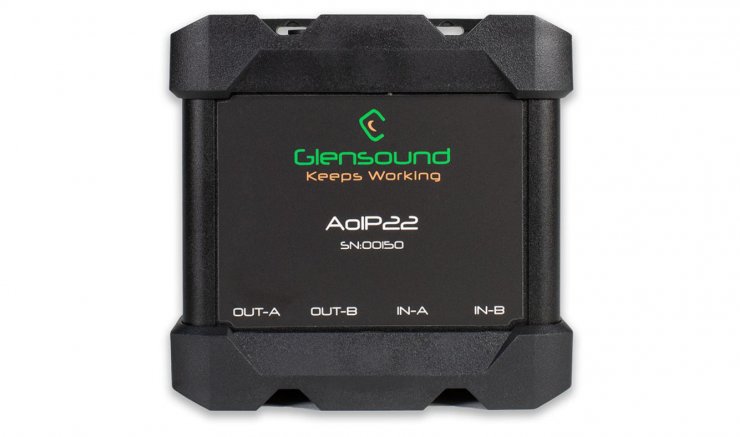

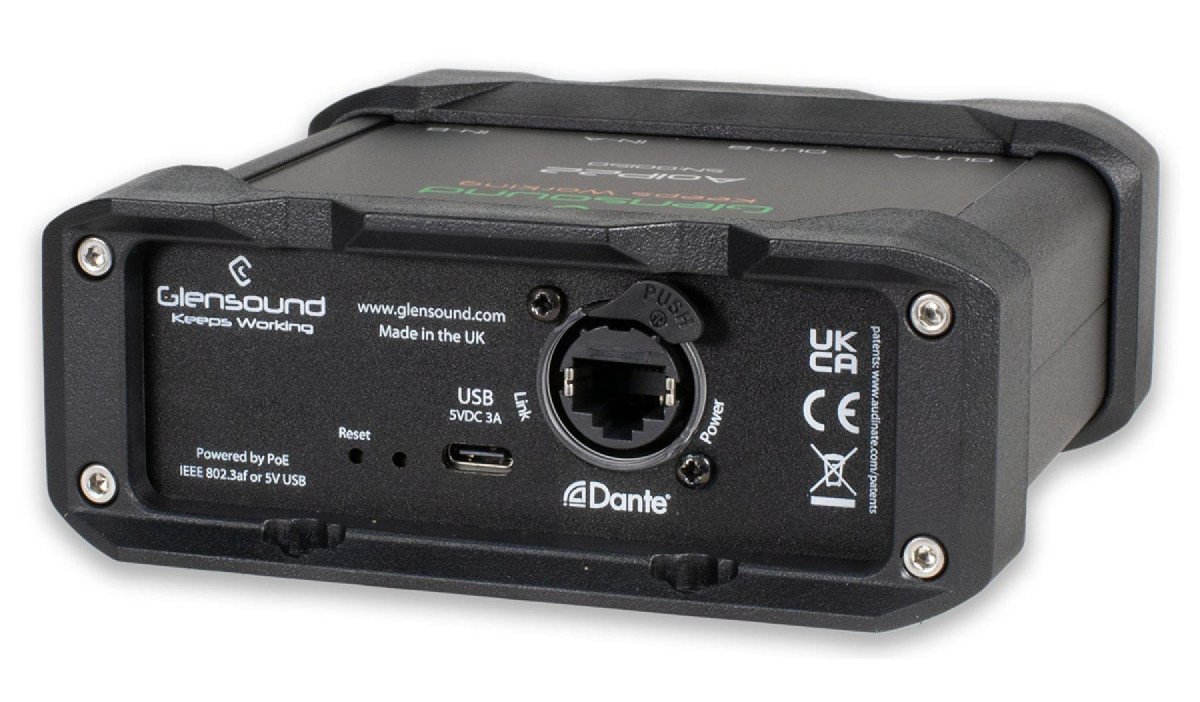

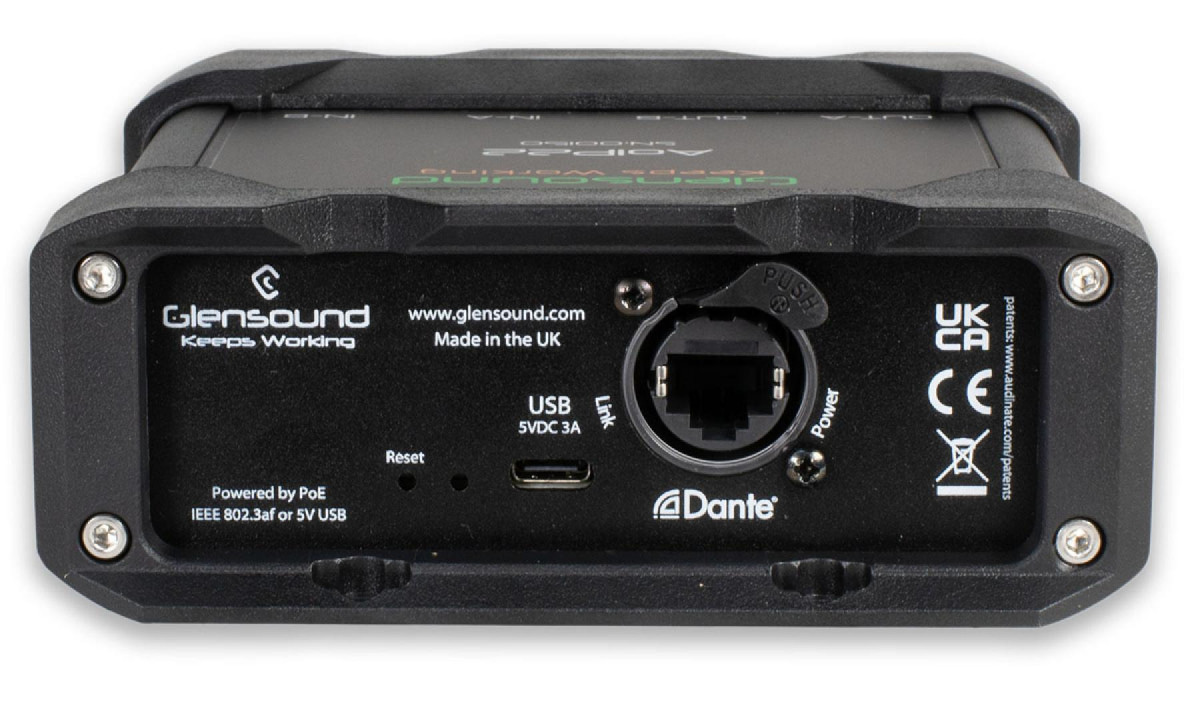

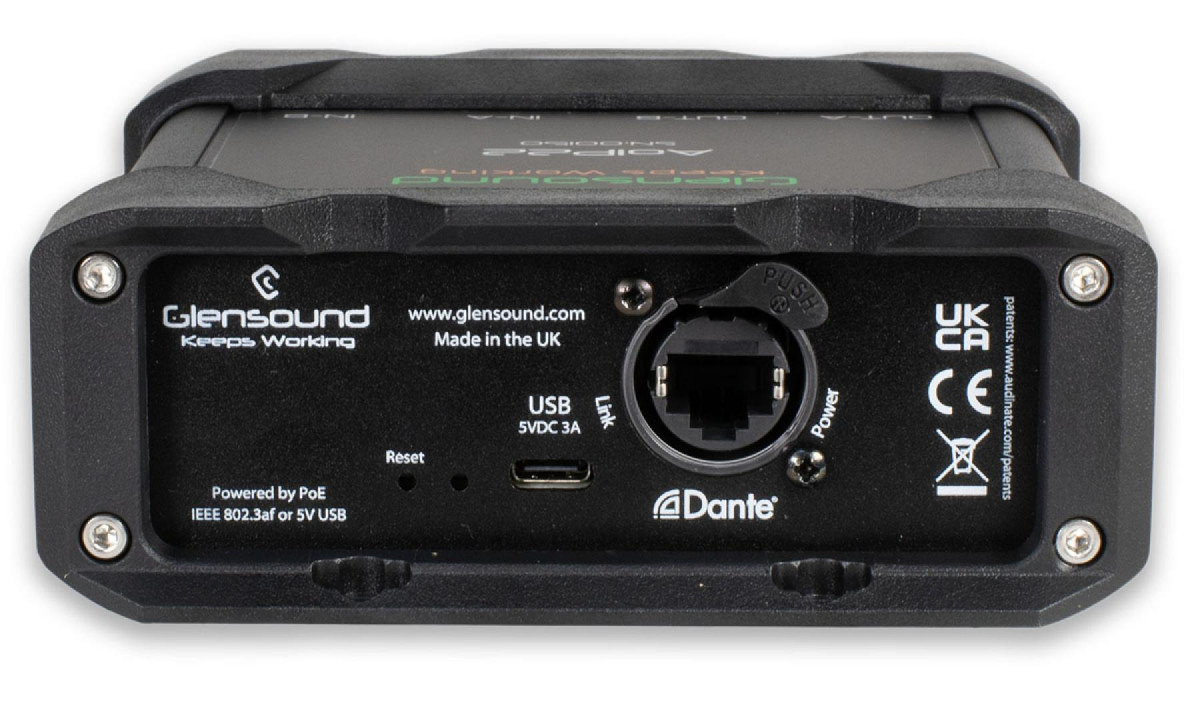

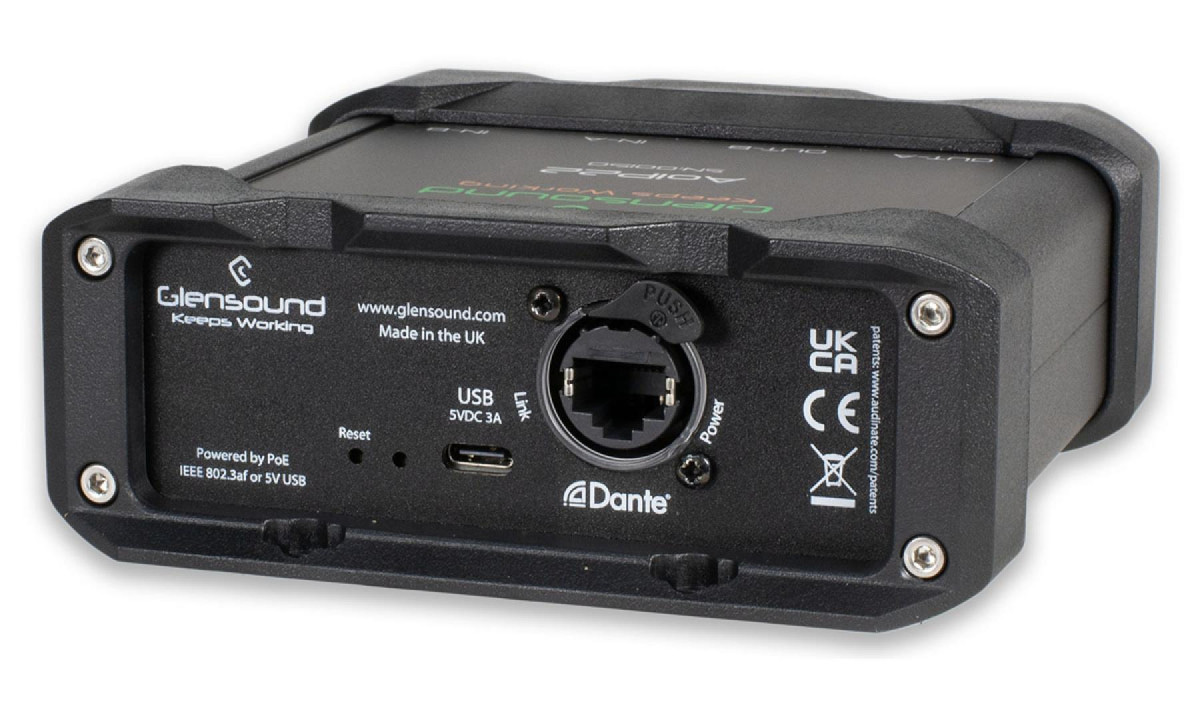

AOIP22MK2 Front BAN AOIP22MK2 Front Left Angle BAN AOIP22MK2 Top BAN AOIP22MK2 Rear BAN AOIP22MK2 Rear Right Angle BAN AOIP22MK2 Rear Left Angle BAN AOIP22MK2 fra BAN

AoIP22 MKII
Robust Location Two Channel Bi-Directional Audio Interface

Features Description Specification Downloads Ask a Question
  • 2 balanced analogue audio inputs on XLR connectors
  • 2 balanced analogue audio outputs on XLR connectors
  • Neutrik Ethercon RJ45 network connector
  • Connection to Dante / AES67 network for control and configuration
  • 44.1 - 96kS/s Dante network interface
  • 48kS/s AES67 network interface
  • Simple AoIP audio interface for professional location work
  • Robust, reliable lightweight aluminium enclosure
  • Cable tie mounting points
  • Powered by PoE

Packaged in a small & rugged format and designed for outside broadcast, theatre and location applications.

The AoIP22 is designed to easily and quickly interface existing analogue equipment to a Dante® / AES67 network audio system. Being powered by PoE means that only one cable needs to be connected to the network to carry both audio and power, providing flexibility and saving time on installation.

Robust proven construction techniques, simple reliable interface and excellent specification will help make your technician’s life hassle free, whilst the low cost and long asset life will keep the accountant satisfied.

EASY TO USE

Dante® Controller by Audinate is a free application that controls all your Dante® enabled devices on your network.

It will automatically find the AoIP22 and allow you, just by the click of a mouse, to route audio circuits to/ from it.

Dante® network audio has become very popular because it just works and it’s so easy to use. Yet underneath the simple trouble free setup is a very sophisticated Audio over IP (AoIP) protocol working in real time across standard network switches with clever digital clock synchronisation to keep all equipment working in perfect harmony.

PRACTICAL FEATURES
CABLE TIE HOLES

All four front corners of the AoIP22 feature large extremely strong holes that are ideal for threading cable ties through. This makes temporarily installing the unit in out of the way locations very easy.

AUDIO

Input Type:  Electronically balanced (can be wired un-balanced) Neutrik 3 pin XLR Socket
Input Impedence:  >20k
Output Impedence:  50 Ohms
Output Type:  Electronically balanced (can be wired un-balanced) Neutrik 3 pin XLR Plug
Max Input before clip:  +18dBu
Max output:  +18dbu
Frequency Response: 20Hz to 22KHz <=+/-0.25dB
Noise:  -92dBu (residual)
THD+N Analogue In to Network Out: Relative (1k +18dBu):  0.00134%
THD+N Dante In to Analogue Out: Relative (1k +18dBu):  0.0026%
Dynamic Range:  108dBs
Crosstalk (0dBu input to output 1k tone):  -135dB
Digital Full Scale: +18dBu = 0dBFs

NETWORK AUDIO

Compatible Audio Networks:  Dante uncompressed, low latency audio & AES67
AES67 Compliant: The Audinate Ultimo chipset that we use in this product is AES67 compliant
Network Connection:  Neutrik RJ45 EtherCON
Dante Network resolution:  24bit
Dante Network sample rate:  44.1/ 48/ 88.2 & 96kS/s
AES67 Network sample rate: 48kHz

POWER

PoE: Can be powered by PoE
Consumption:  2.6 Watts
DC: 12V

PHYSICAL

Size:  127x123x49 (WxDxH)
Weight:  390g
Mechanics:  All aluminium construction

ENVIRONMENTAL

Operating Temperature: 0 to +50°C (32 to 122°F)
Storage Temperature: -20 to +70°C (-4 to 158°F)
Relative Humidity: 0 to 95% non-condensing

INCLUDED ITEMS

Handbook:  Available by download
RJ45 Network Cable: 2 metre Cat5 RJ45 plug to RJ45 plug cable
