Signature DAC 1

Stereo Digital To Analogue Converter

• Modern high quality Digital to Analogue Audio converter
• Analogue output on 2 x 3 pin XLR plugs
• Analogue output also available on 2 x RCA phono sockets
• Digital input available on 1 x AES on 3 pin XLR socket
• Digital input also available on 1 x S/PDIF on a phono socket
• Digital input also available on optical TOSLINK
• Front panel headphone connection for monitoring
• Sample frequency up to 192k

Signature ADC 1

Stereo Analogue To Digital Converter

• Modern designed high quality Analogue to Digital Converter
• Analogue input on 2 x 3 pin XLR sockets
• Analogue input also available on 2 x RCA phono sockets
• Digital output available on 1 x AES on 3 pin XLR plug
• Digital output also available on 1 x S/PDIF on a phono socket
• Digital output also available on optical TOSLINK
• Front panel headphone connection for monitoring

Signature ADDA 1

Stereo Analogue To Digital And Digital To Analogue Converter

• Modern high quality bi-directional audio converter
• Analogue input and output on 2 x 3 pin XLRs
• Analogue input output also available on 2 x RCA phono sockets
• Digital input and output available on AES 3 pin XLRs
• Digital input and output also available on S/PDIF on phono sockets
• Digital input and output also available on optical TOSLINK
• Front panel headphone connection for monitoring
• Sample Frequency up to 192k

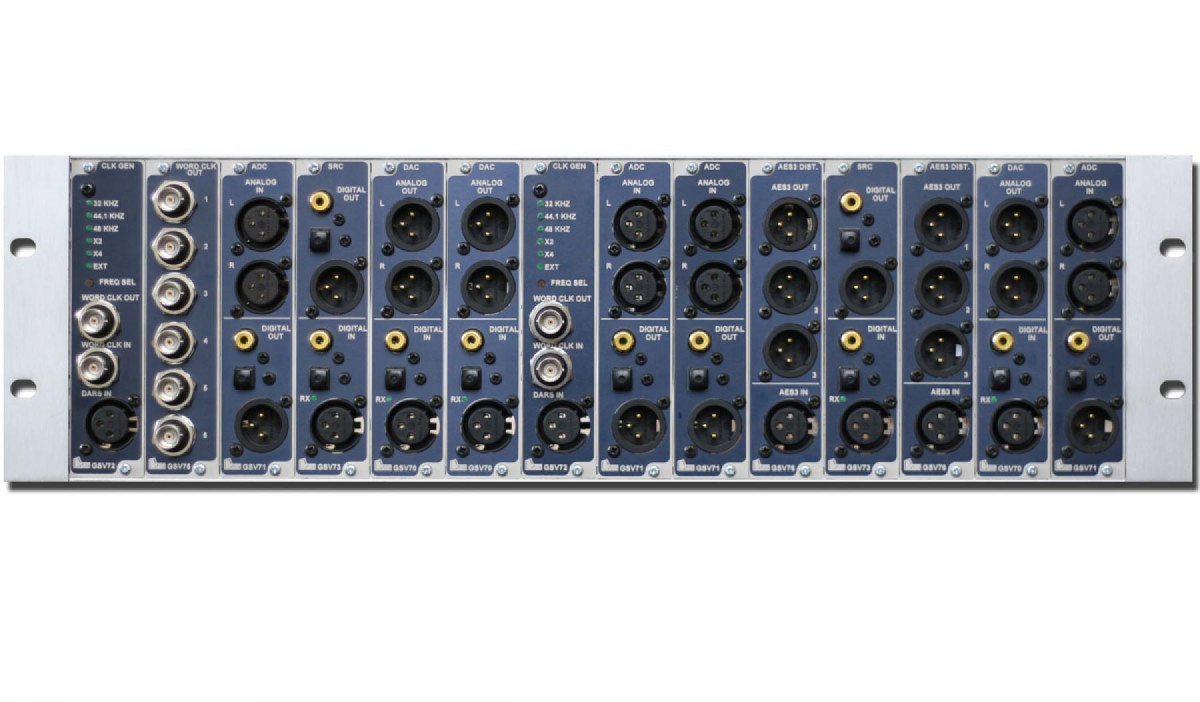

DC-314 Frame

Main Frame For DC-314 Digital Converter System

• 3U Subrack Holds 14 Module Cards
• Versatile Main & Redundant Power Supply
• Card Mounting Options
• Modify Or Upgrade At Any Time

DC-314 DAC

Digital To Analogue Converter Card

• AES3 Digital Input On XLR S/PDIF Digital Input On Phono
• Optical TOSLINK Digital
• Balanced Analogue Outputs On XLRs
• Digital Sample Rates From 32 To 192kHz
• Handles Up To 24 Bit Digital Signals

DC-314 CLK GEN

Clock Generator Card

• Master Clock Generator
• Low Jitter
• Word Clock Input On BNC
• World Clock Output On BNC
• Selectable Clock Frequency

DC-314 SRC

Sample Rate Converter Card

• Three Digital Input Options
• Three Digital Output Options
• Output Frequency Taken From DC-314 Backplane
• LED Lock Indication

DC-314 MIP

Mains Inlet Panel

• Power supply for DC 314
• Rear mounting
• Redundant option

DC-314 CDA

Word Clock Distribution Amplifier Card

• Six Output Word Clock Distribution Amplifier
• Outputs On BNC Connections
• Output Frequency Taken From DC-314 Backplane

DC-314 DDA

Digital Distribution Amplifier Card

• Three Way AES/EBU Distribution Amp
• AES/EBU Digital Input
• Three AES/EBU Digital Outputs
• Clock Frequency Taken From Input
