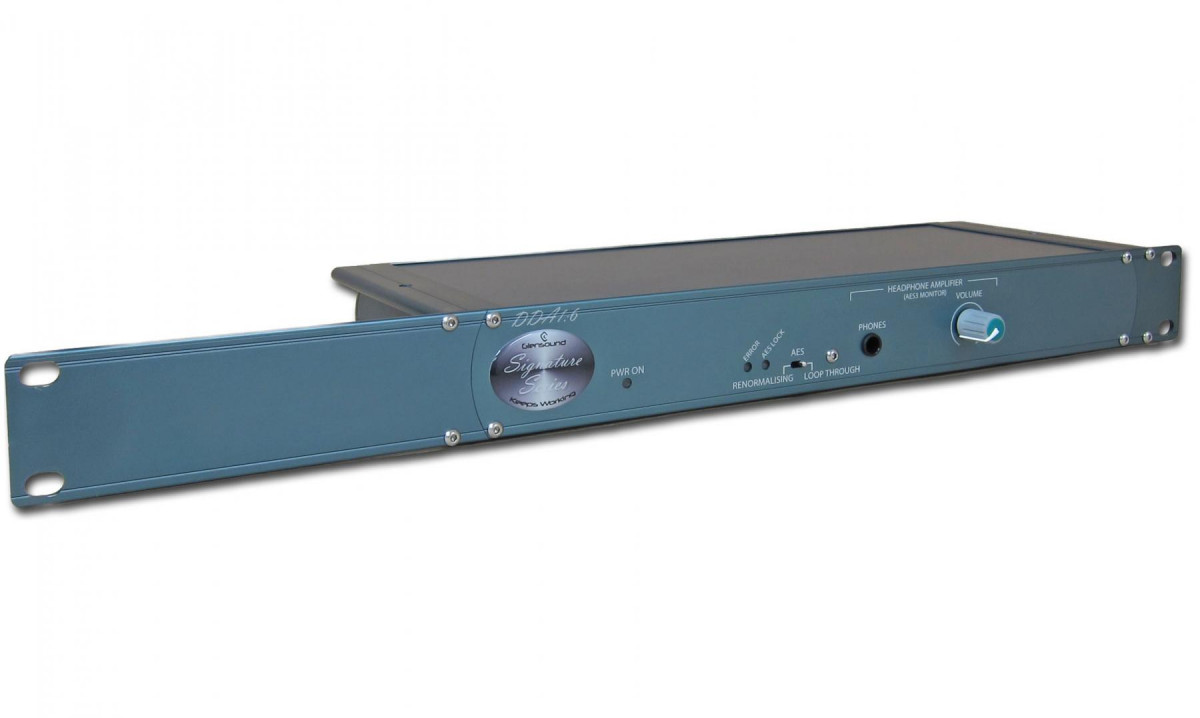

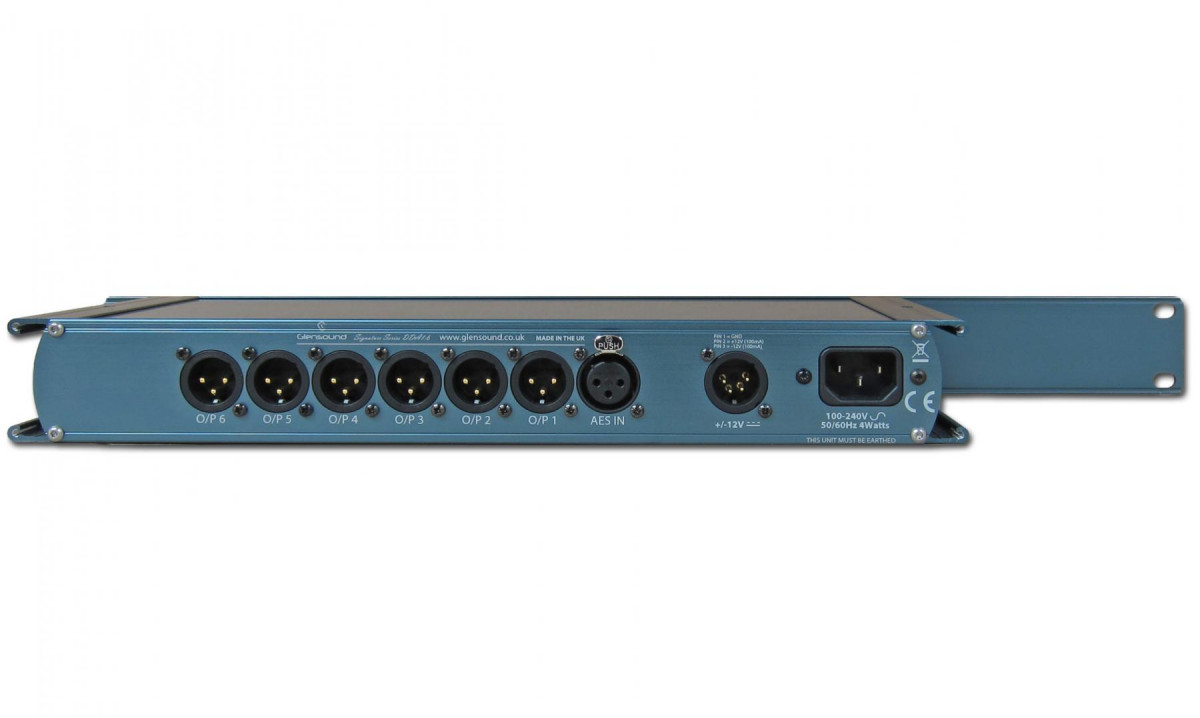

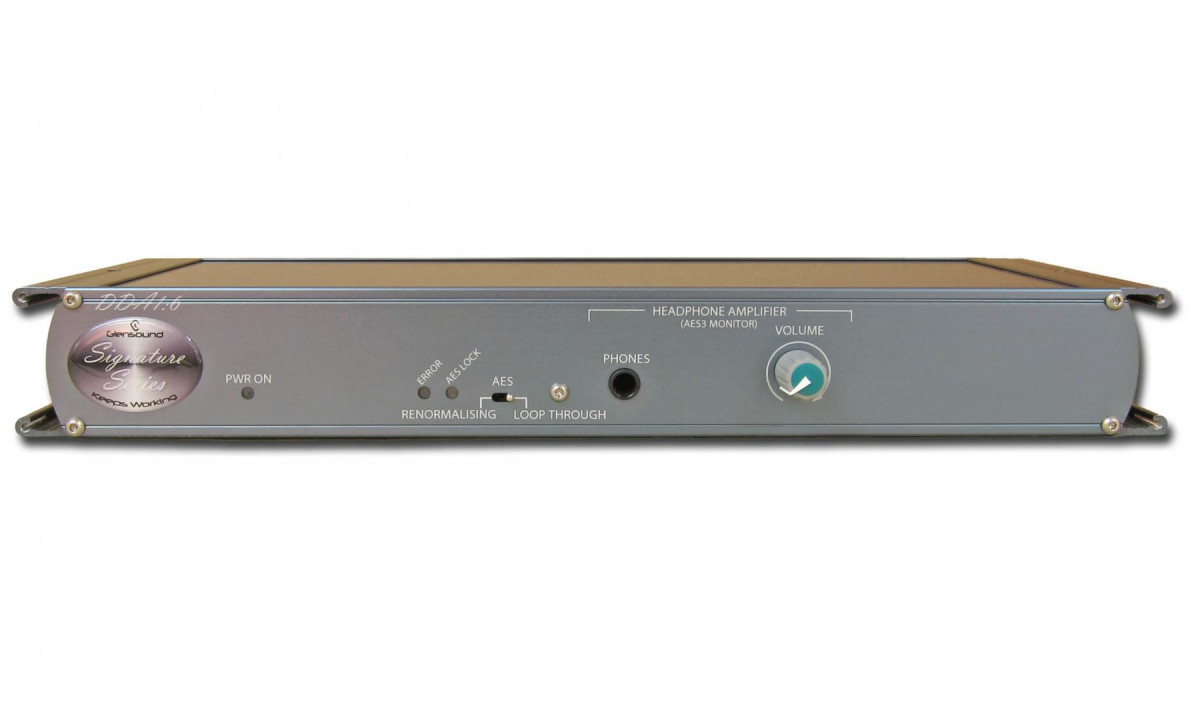

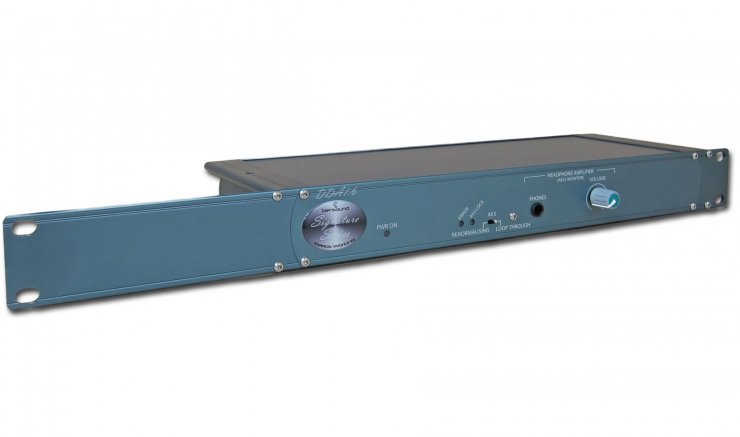

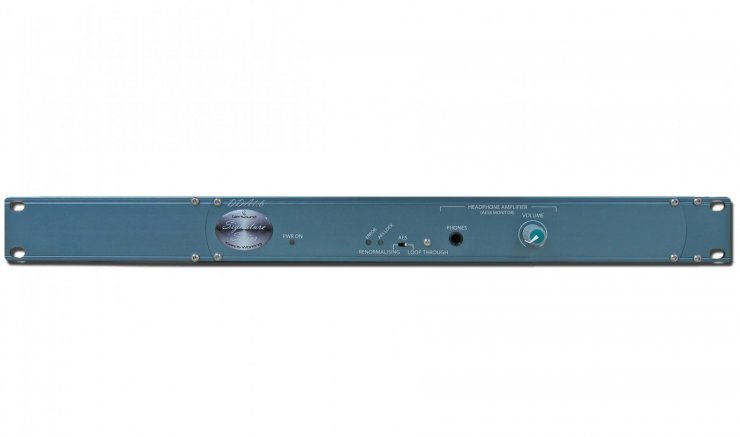

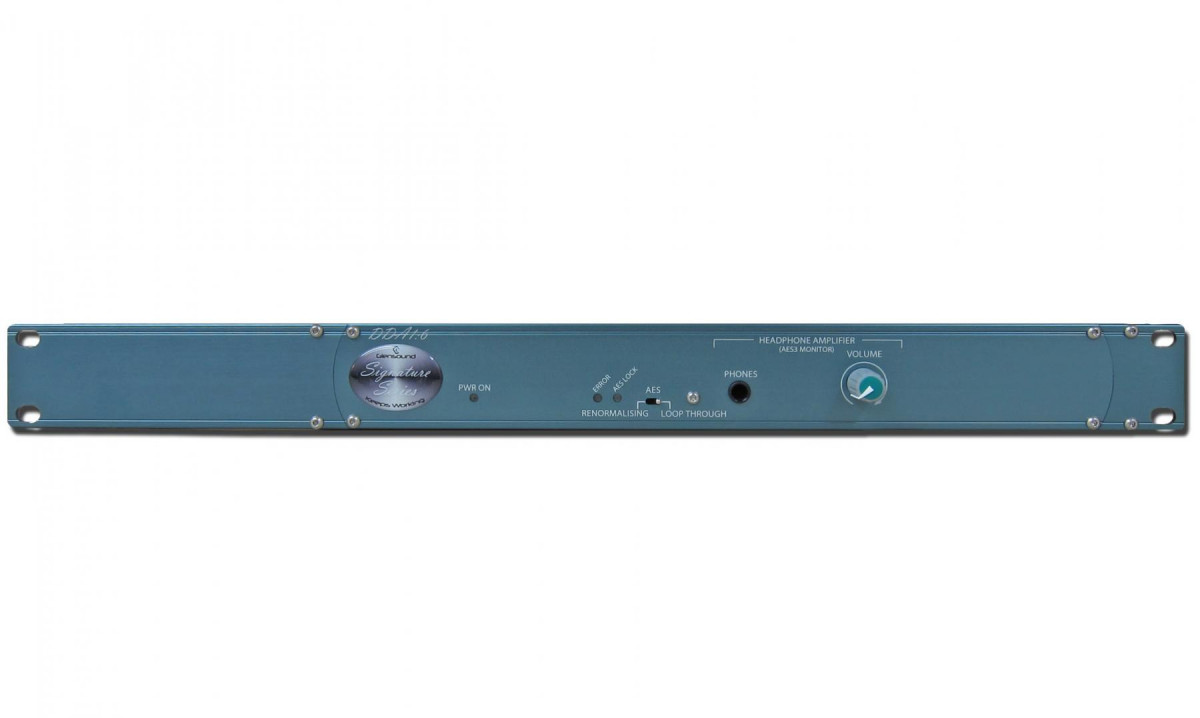

Signature DDA 16 front BAN Signature DDA 16 rear BAN DDA 16 Front No RE BAN Signature DDA 16 front angle BAN

Signature DDA 1:6
1 Input, 6 Outputs, AES Distribution Amp

Features Description Specifications Downloads Ask a Question
  • 1 x AES input, 6 x AES outputs
  • AES can be re-normalised
  • AES can loop straight through un-normalised
  • Front panel headphone connection with level control
  • All I/O on XLR

The DDA 1:6 is a cost effective distribution amplifier for digital AES signals.  Via rear panel XLRs there is a single input and 6 outputs.

The output signals can pass straight through without any normalising.  This is useful if you need syncronisation to be maintained. There is also an option to re-normalise all of the output signals to ensure that all outputs are at the full digital level again.  It is important to realise that re-normalising a digital signal while often desirable, does cost one sample.

A headphone monitoring position is also provided on the front panel via a 6.35mm stereo jack socket.  This allows monitoring of the incoming audio signal via a variable level pot.

LEDs indicate AES lock or if there is an AES error.

Signature Series Standard Features

19" Rack Mount Ears
A Signature unit can rack mount in a 1U 19” rack, regardless of the size of the unit.  Rack ears are included as standard with every unit.

Front Or Rear Mounting
A Signature unit can be rack mounted via the front panel or if it is more convenient, via the rear panel by simply swapping the rack ears over.

Side Wings For Flat Surface Mounting
A Signature unit has side wings with mounting holes at the top and bottom, allowing flush fixing from above OR underneath.

Internal Switch Mode AC Power Supply
A Signature unit has an internal switch mode AC power supply, allowing worldwide power connections from 100-240v via an IEC socket.

12V DC Power Connection
All Signature units (except PS1) have a 4 pin XLR ±12V DC  socket for connection to the PS1 Power Station.  This can act as the primary or backup power source.

Quick Find Manual
A Signature unit has a QR code attached.  This can be scanned to simply and quickly locate the manual and technical information.

Other

  • Neutral colour scheme to compliment Equipment Scheme
  • Rack screws included
  • Modern design

AUDIO AES INPUT TO OUTPUT

Input Impedance: 110 Ohms
Output Impedance: 110 Ohms
Maximum & Minimum Levels: 200mV to 10V peak to peak
Sample Frequency Range: 32 - 192 kS/s
Resolution: 8, 16, 24 or 32 bit
Input Type: 3 pin Neutrik XLR transformer balanced
Output Types: 6 off 3 pin Neutrik XLRs each isolated & transformer balanced
Noise: -145.7 dBFs unweighted 22Hz to 22kHz
Distortion: 0.00005% (@ +8 from line up)
Loop Through: Output signal integrity matches input signal
Re-normalised: Output signal is reconstituted and signal integrity returned to normal

HEADPHONE MONITORING

Headphone Level: 0dB (into 600 Ohms) with -18dBFs input
Gain Range: +6dB to Off
Output Clip Level: +18dB (into 600 Ohms)
Frequency Response: 25Hz: -0.25dBu to 32kHz: +0.25dBu
Noise: -77dBu @ Max Gain (Unweighted 22Hz to 22kHz)
Distortion: 100Hz = 0.006% 1kHz = 0.005% 10kHz = 0.011%

POWER

Mains Input:  Filtered IEC, 100 to 240VAC 47 - 63Hz
AC Consumption: 1.4 Watts @ 230VAC
DC Input:  4 Pin Neutrik XLR plug +/- 12V
DC Consumption:  +/-12V Internal Mains Fuse:  20mm 1A Anti Surge

PHYSICAL

Size:  336 x 123 x 44mm (LxDxH) no rack ears, 482mm 19” (1RU) with rack ears
Weight:  0.75kg
Shipping Weight: 2.25kg
Shipping Carton:  Rugged export quality cardboard carton 610 x 420 x 130mm LxDxH
Mechanics:  All aluminium construction, anodized and laser etched
