• Multiple Mix-Minus Mixer Options
• Up to 4 of 32 x 32 fixed ratio mixers in 1RU
• Dante/ AES67
• Limiter/ Compressors on Outputs
• Redundant network interface
• Copper & Fibre network interface
• Redundant Power Supply
• Originally designed for setting up intercom mixes
• Loop Through Mode
• Priority override
• Mix minus mode

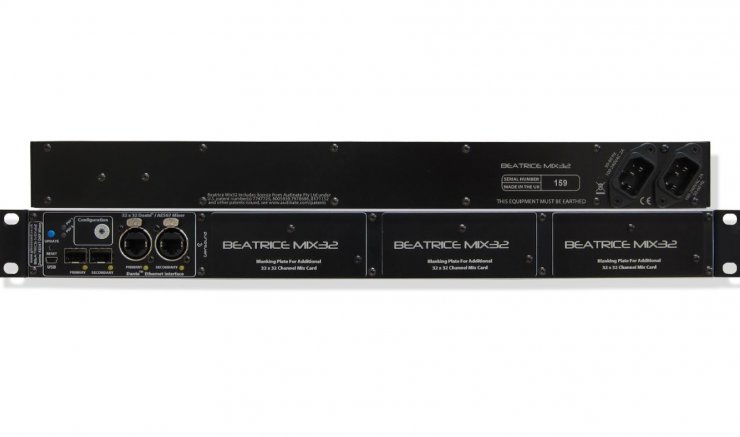

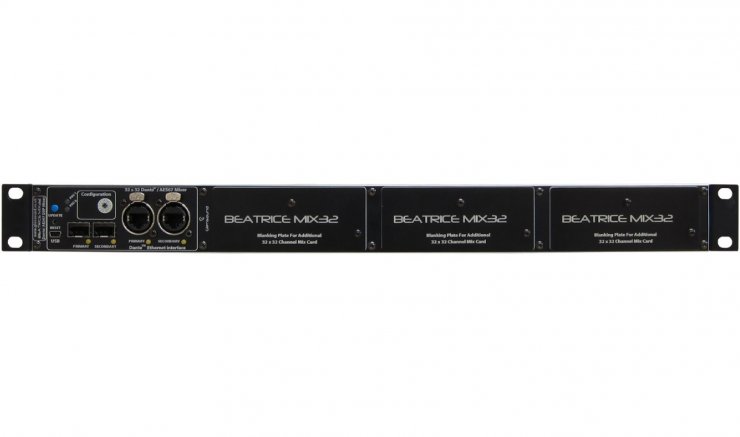

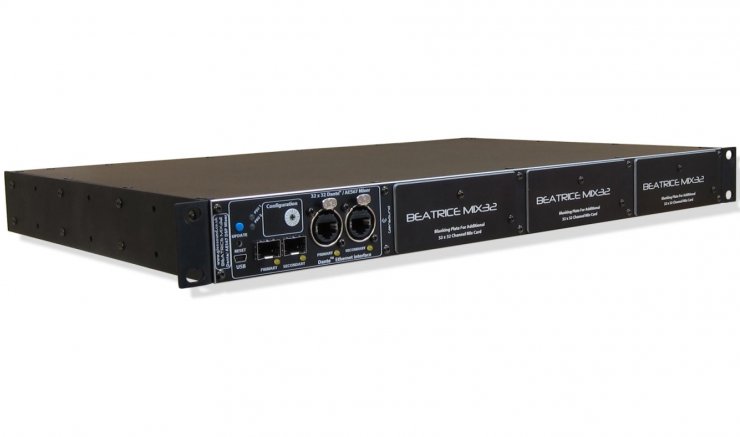

The Glensound BEATRICE MIX32 is a high density audio mixer for producing fixed ratio audio mixes from/ to Dante and AES67 audio networks. It can be fitted with a maximum of 4 independent mixer cards, each with their own redundant network interface. Each of these mixer cards provides 32 audio inputs and 32 audio outputs from the network, with the 32 outputs being mixes derived from different sets of input channels.

A number of different mix-minus mixes can be set on each of 32 x 32 mixer cards. These make it very practical to use as a central intercom mixing hub.

Audio limiter/ compressor circuits are also provided for each output.

The fixed ratio mixes in the Beatrice MIX32 were originally designed to allow network audio intercom systems to generate multiple listening circuits, however the high quality, low noise, digital mixers can be also be used for many other applications.

A priority mode can be used, and when a signal is present on a priority input, all other inputs are dimmed.

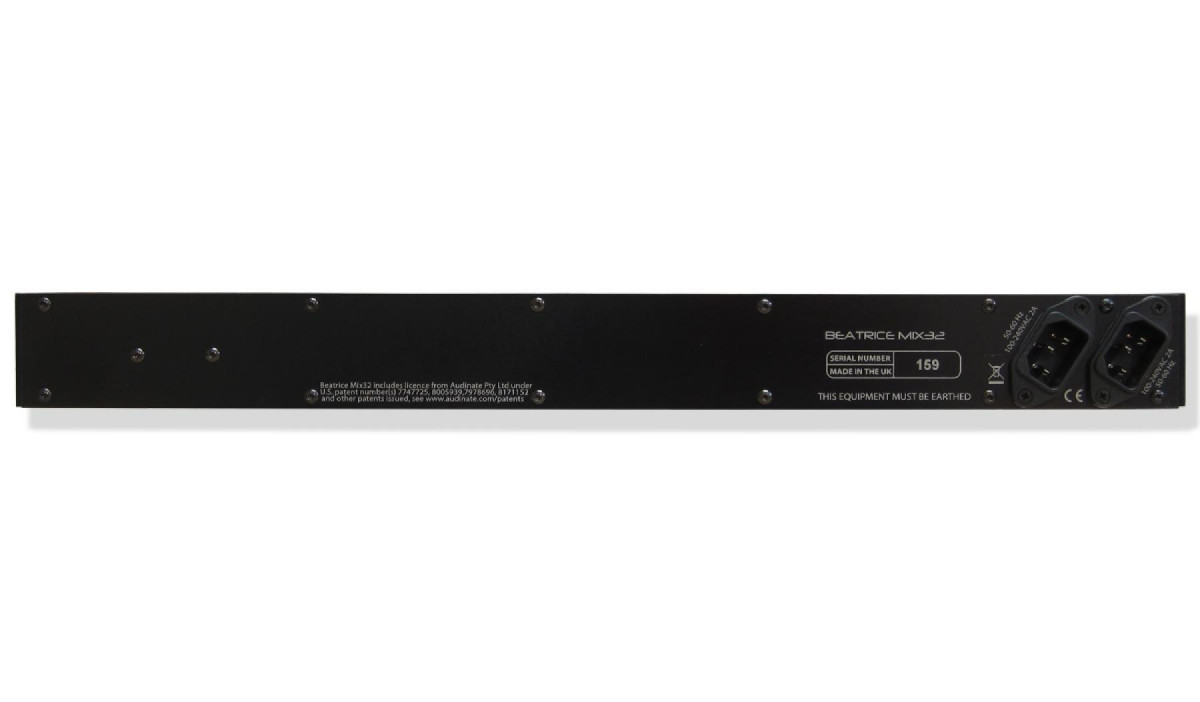

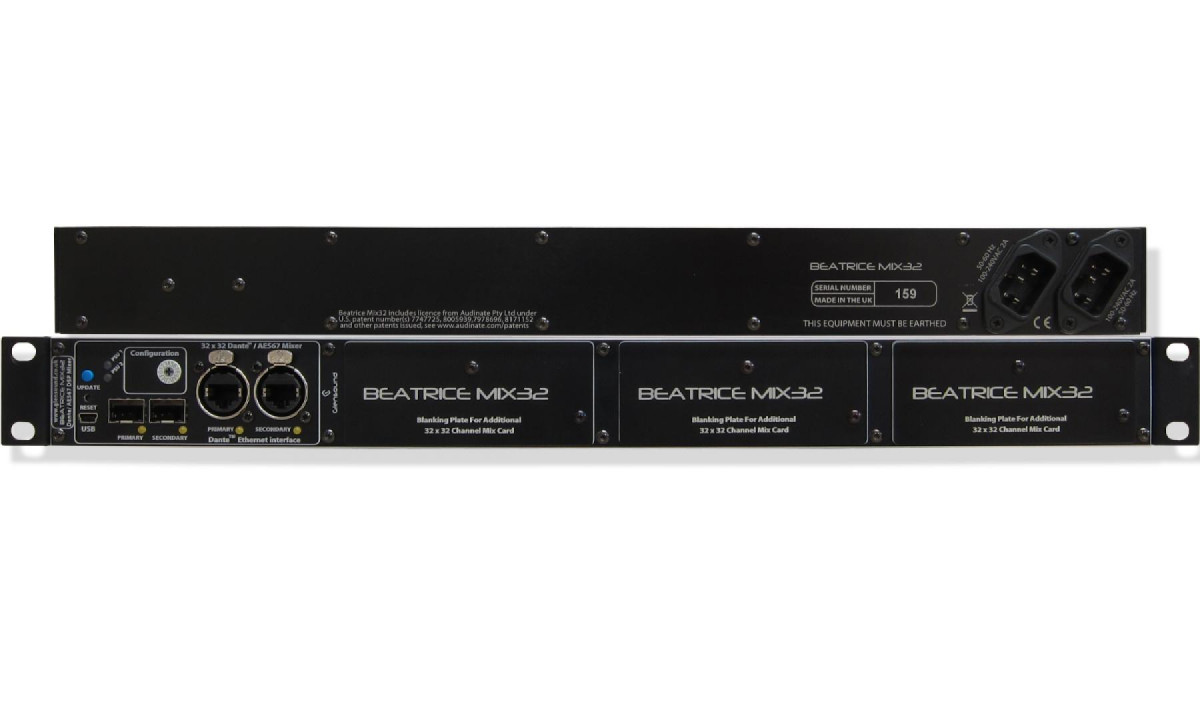

Being designed for 24/7 broadcast operation, the Beatrice MIX32 features both redundant power supplies and also redundant network interfaces.

Dante network audio is a common protocol for distributing high quality linear audio over standard IP networks and it is widely used by many audio equipment manufacturers. The Glensound Beatrice Mix32 Dante audio interface will be compatible with any other manufacturers' Dante audio interface. Further details of Dante network audio can be found at www.audinate.com

Also Available in AES67/Ravenna version

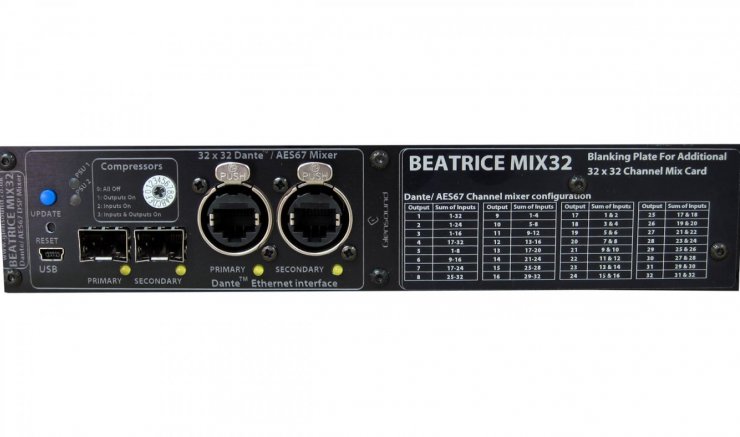

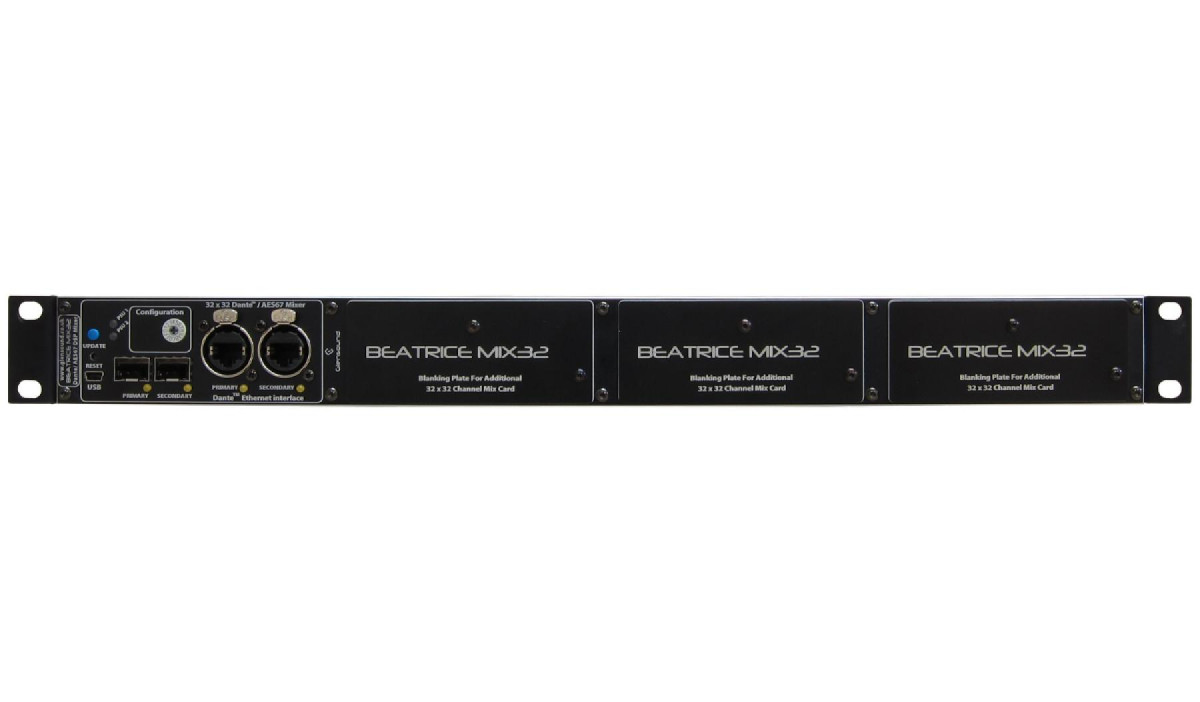

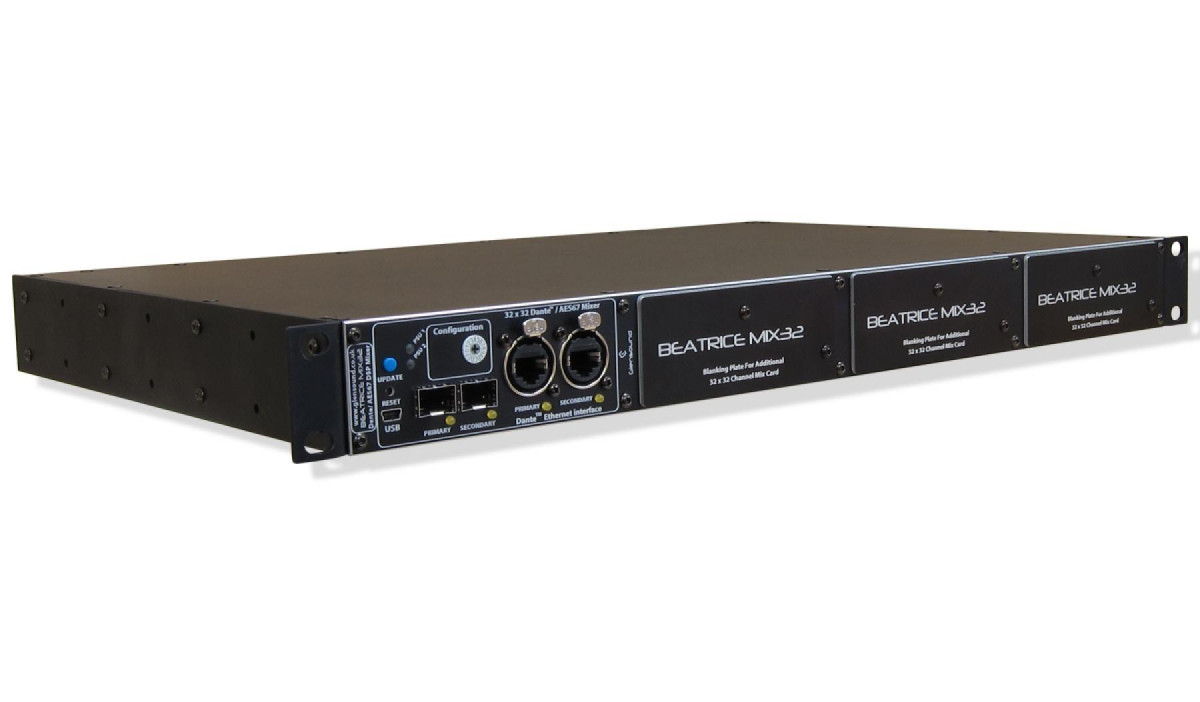

Each BEATRICE MIX32 can house up to 4 independent 32 x 32 channel mixers.

The BEATRICE MIX32 is supplied with just 1 of 32 x 32 channel mixer. Extra mixer cards can be factory fitted at the time of order or can be retro fitted by customers into existing BEATRICE MIX32 racks. The part code for ordering extra 32 x 32 mixers is 'BEATRICE MIX32 Extra Card'.

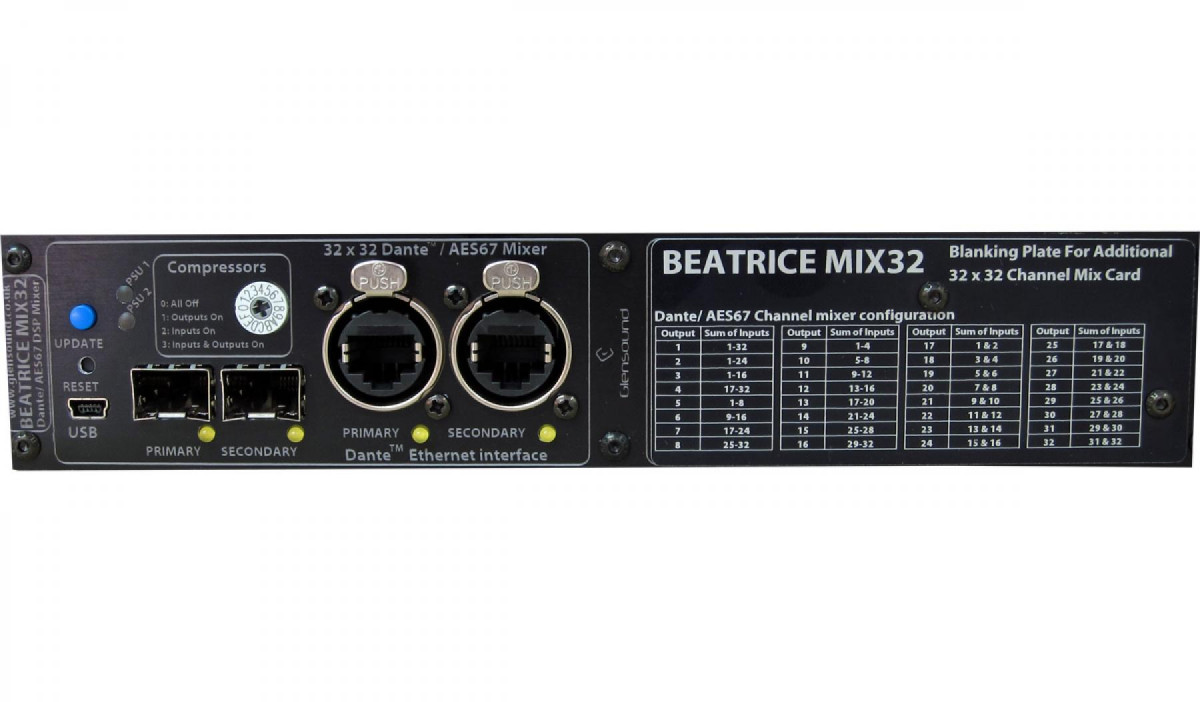

Each mixer has 32 audio inputs and 32 audio outputs to/ from the Dante/ AES67 network. The table below describes what input channels are mixed together to create each output.

Output  Mix Of Inputs

1           1-32
2           1-24
3           1-16
4           17-32
5           1-8
6           9-16
7           17-24
8           25-32
9           1-4
10         5-8
11         9-12
12         13-16
13         17-20
14         21-24
15         25-28
16         29-32
17         1 & 2
18         3 & 4
19         5 & 6
20         7 & 8
21         9 & 10
22         11 & 12
23         13 & 14
24         15 & 16
25         17 & 18
26         19 & 20
27         21 & 22
28         23 & 24
29         25 & 26
30         27 & 28
31         29 & 30
32         31 & 32

Mix-Minus Mixers
Each mixer card provides eight pre-configured options for generating mix-minus outputs. The table below shows details of these eight different configurations.

Specifications for both Dante and Ravenna. Scroll down for details

NETWORK:

Physical Interface:                  2 x Copper Neutrik Ethercon
                                                2 x SFP (Fibre GBIC) Slots (SFP modules not included)
Audio Sample Frequency:        Up to 48k
Transfer Rate:                         1000 Mbps

AUDIO:

Audio inputs & outputs are entirely digital fed via the digital network. Internally audio is processed in a DSP with 32 bit resolution. Performance is expected to be completely flat and noise free.  We cannot measure it as its performance exceeds the range of our test equipment.

PHYSICAL:

Size:                                        19” 1RU, 30cm deep
Weight:                                   2.8Kg (1 mix card fitted)
Shipping Carton:                      Rugged export quality cardboard
Shipping Size:                         62 x 42 x 12 cms
Shipping Weight:                    4.5Kg

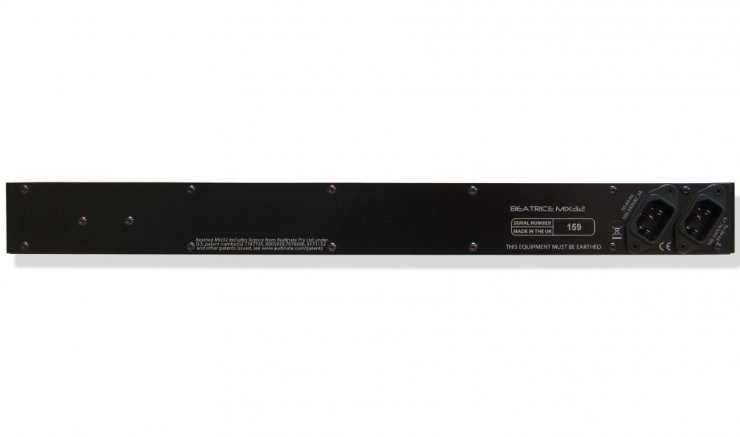

POWER:

Quantity of Inputs:                  2
Physical Inputs:                      IEC plug
Type of Input:                         Fully redundant
Voltage Range:                        100 – 240 VAC +/-10%
Frequency:                              50 – 60 Hz
Consumption:                          14 Watts (1 x mix card fitted) then add 2 Watts for each extra mix card

ENVIRONMENTAL

Operating Temperature: 0 to +50°C (32 to 122°F)
Storage Temperature: -20 to +70°C (-4 to 158°F)
Relative Humidity: 0 to 95% non-condensing

INCLUDED ITEMS:

RJ45 Cable:                             2 of per mix card fitted
Mains Cable:                            2 of (UK & Europe only)

NETWORK OPTIONS:

DANTE/AES67 VERSION
Physical: 2 x Neutrik Ethercons Cat6 RJ45s & 2 x SFP slots
Type: Fully redundant primary & secondary circuits
Sample Frequency: 48K
Resolution: 24 Bit
Control & Routing: Via Free Dante Controller
AES67: Can be configured for AES67

RAVENNA/AES67 VERSION
Physical: 2 x Neutrik Ethercons Cat6 RJ45s & 2 x SFP slots
Type: Fully redundant primary & secondary circuits
AES67: Yes
High Sample Rates: 44.1kHz - 192kHz
PTPv2: Master or Slave, IEEE-1588-2008 standard
SMPTE ST 2110-30: Yes. Including level C and CX
SMPTE ST2022-7: Yes. Seamless data switching
NMOS IS-04 (Disovery): Yes
NMOS IS-05 Routing): Yes
Remote Control: Web browser or Anem

The Beatrice Mix32 also features a loop through mode. When set to this mode each input is routed directly to its equivalent output. Such that input 1 is routed to output 1, input 2 is routed to output 2 etc.

When in the loop through mode no compressors or limiters are turned on.

The reason for the loop through mode is to help overcome the issue of streams in Audinate's Ultimo chipset. The Ultimo chipset from Audinate is used by many manufacturers as it's a low cost entry level device for connecting up to 4 bi-directional audio channels to a Dante network. Although a 4 audio channel device, the Ultimo chipset can only receive 2 IP network streams. This means that the 4 incoming audio channels can only come from 2 different devices.

Using the loop through mode in the Mix32 allows 4 different audio channels originating from 4 different network locations to be looped through the Mix32 and sent onwards to a device using the Ultimo chipset, meaning that as far as the Ultimo chipset is concerned all 4 audio sources are coming from 1 single network location.
