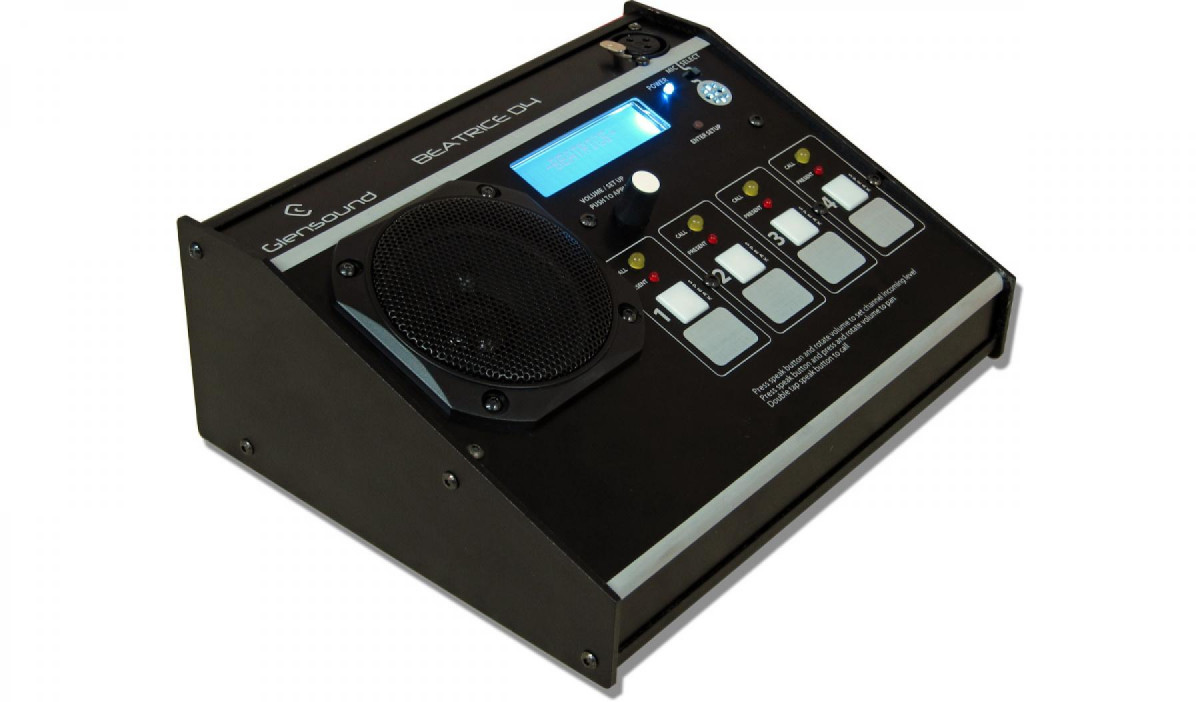

The Glensound BEATRICE D4 is a robust, 4* channel Desktop intercom with crystal clear audio designed for broadcast, theatre and professional audio applications.
It is part of our Beatrice intercom system that utilises the reliable and proven Dante network audio transmission protocol to allow real time distribution of uncompressed audio across standard networks. As such the BEATRICE D4 is also fully compatible with other manufacturers’ equipment using the Dante protocol.
The Beatrice D4 is also AES67 compliant.
This small desktop unit was deigned to be very easy to use for the operator and simple to setup for the technician. It includes all the basic functionality required for small intercom systems and none of the overly complex installation requirements normally associated with large systems.
One single user connected to the unit can listen and communicate with 4* separate locations on the network. Depending upon how the Dante network has been routed the incoming audio circuits and outgoing circuits can be different locations.
PLEASE NOTE THERE IS A LIMITATION TO INCOMING NETWORK STREAMS SEE ‘*’ IN SPECIFICATION l
Dante Routing & Partyline
Audio routing to/ from other devices is setup using Dante controller which allows for point to multipoint routing on outgoing circuits (but only 1 single incoming circuit for each of the 4 channels). An inbuilt partyline facility allows any of the 4 incoming circuits to be routed to any of the 4 output circuits making both simple partyline and more complex group circuits easily configured.
Onboard Mic & External Mic Input
A good quality, clear sounding microphone amplifier designed for communication purposes is fitted which also has the benefit of a compressor/ limiter circuit to help keep levels and intelligibility consistent even when the operator gets overly excited. This microphone amp has two microphone sources, either the inbuilt front panel mounted electret capsule which provides good voice intelligibility from normal working distances or a balanced XLR input for connecting external gooseneck microphones to. Twelve Volt Phantom power is also available and can be turned on/ off as required.
Large Diameter Visatron Loudspeaker
What’s the point of an intercom unit if the onboard speaker is so small and cheap that you can’t understand what is being said to you? We use high output, high quality, large magnet Visatron speakers with excellent voice intelligibility to make communication straightforward and easy to understand.
Volume, Panning & Incoming Levels

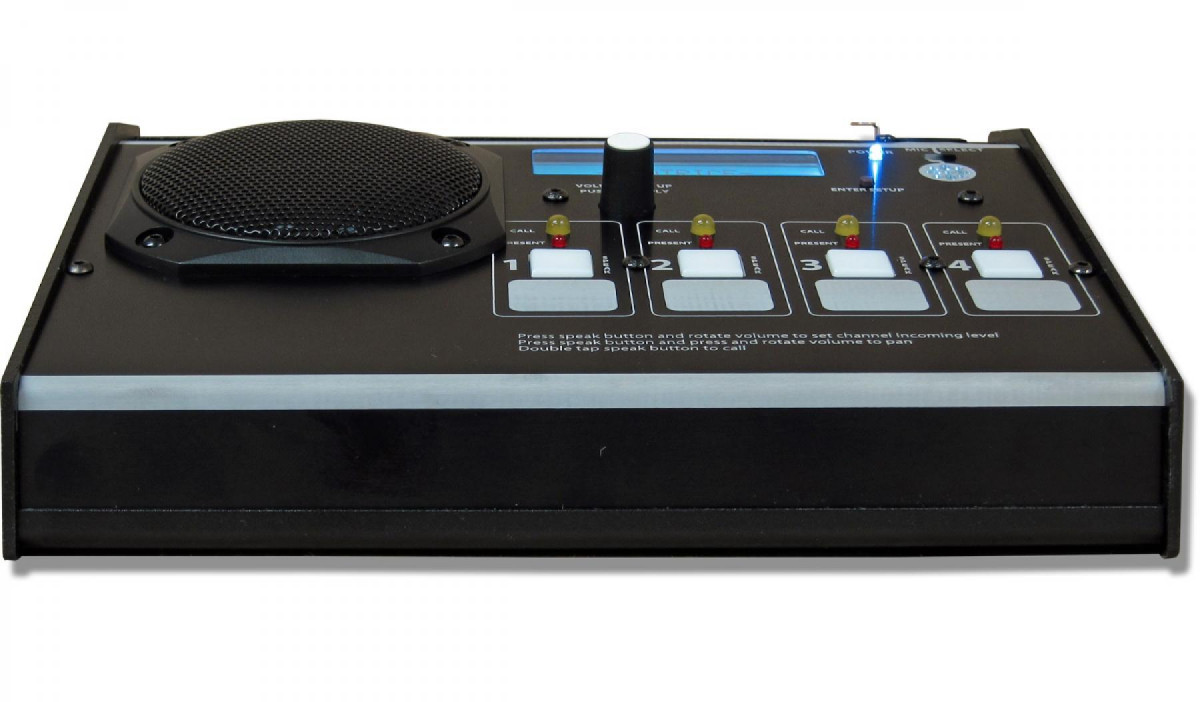

The front panel features an easy to use volume/ setup control. This multifunctional control provides day to day operational control of:
A) Overall volume control (just turn the knob)
B) Incoming channel level (push the speak key and turn the knob simultaneously)
C) Panning (push the speak key and push and turn the knob simultaneously)
Mains or PoE Powered
An inbuilt wide range switch mode mains power supply is fitted for powering the Beatrice D4. It is terminated with a standard IEC plug, making it easy to plug in wherever you are in the World. It can also be powered via the Ethernet cable by standard PoE (Power over Ethernet), which can be supplied by an external PoE switch or a midspan power injector.
One of our unique headphone amplifiers are fitted to the Beatrice D4, these allow either low or high impedance headphones to be used and automatically adjust the output level to match the impedance of headphones in use. The headphone amplifier is stereo and sources can be panned to left or right ears as desired. The unique headphone amplifier can also drive mono earpieces from its stereo output without any performance issues. Headphone connection is via a standard 6.35mm TRS jack socket located out the way on the rear panel.
If you prefer an intercom headset with a single XLR connector for microphone and headphones then fitted as standard to the rear is a 5 pin female XLR headset connector. The microphone input on this headset connector is in parallel with the 3 pin XLR and the headphone output is in parallel with the 6.35mm TRS jack.
A 4 pin male XLR can be fitted to special order instead of the 5 pin female headset connector.
A simple call function is inbuilt allowing the operator of one unit to call/alert other users that they want to communicate with them. To call another user the operator double taps the speak key of the channel they want to call, this then flashes a bright yellow call LED on the other users keypanel, which continues to flash until the call is answered. As well as flashing a LED at the receiving end of the call an audible ‘beep’ can be set to alert the user that an incoming call has been placed to them.

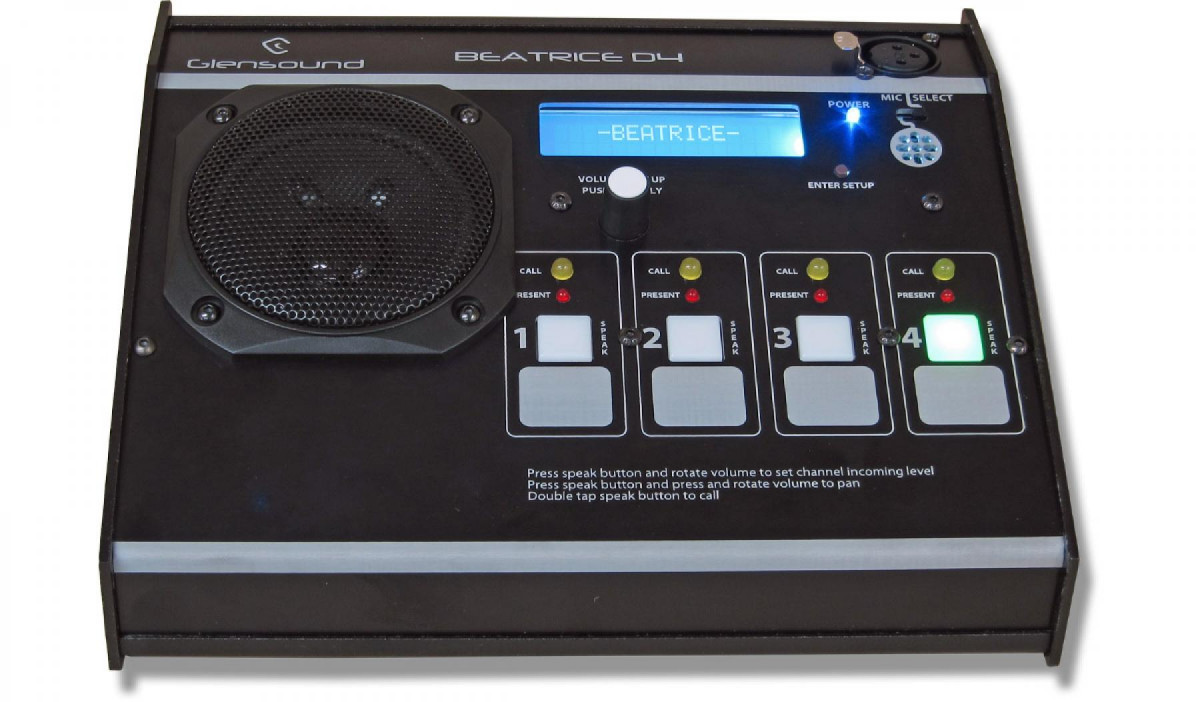

Display for Setup
To make setup of the unit easy and intuitive a display is provided on the front panels. This display provides a simple menu system for setting up such items as: Button Configuration Input Type (Mic/ Line) Microphone Gain Phantom Power On/ Off Sidetone Level (Own voice in own headphones) Partyline/ Loop Through Mode Mixing/ Cutting of Partyline when User Speaks
Each channel has it’s own red LED that acts as a presence detector on the incoming audio circuit. When audio is detected the LED is lit and it stays lit for a short period after the incoming audio stops
Small and Robust
The Beatrice D4 is manufactured using lightweight but strong aluminium. It has laser etched aluminium front & rear panels and powder coated aluminium sides. The form factor has been carefully designed to be as small as the internal electronics allow whilst keeping user buttons, microphone and loudspeaker ergonomically positioned for optimum user experience. Weighing in at just 1.5Kg it is light enough to easily transport but heavy enough to stay put on a busy desk or work surface and at just 41 x 214 x 172mm it won’t get in the way.
* FOUR INCOMING AUDIO CIRCUITS
This device uses Audinate’s Ultimo Chipset.This chipset can receive 4 incoming audio channels each at 48kHz. However this chipset can only receive these 4 audio channels from a maximum of 2 network locations.
NETWORK/ Dante Interface
Physical Interface: 1 off RJ45 Neutrik Ethercon
Audio Sample Frequency: 48kS/s
Transfer Rate: 100Mbps
Dante Chipset: Ultimo UXT-01-004 (Note: Audinate recommend no more than 10 Ultimo chipsets on one network UNLESS another Dante device such as the Brooklyn Module (found in 8 channel Beatrice/ Dark units), is on the same network)
AES67 Compliant: The Audinate Ultimo chipset used is AES67 compliant
Mic Gain Range: +60 to +20dB
Line Input Gain Range: +10 to -20dB
Phantom Power: 12 Volts
Equivalent Input Noise: -110dB (20Hz to 20kHz A weighted 300 Ohms)
Headphone Impedance: 32 - 1000 Ohms
Max Headphone Output Level: +10dB into 600 Ohms
Headphone Connector: 6.35mm (1/4") TRS socket, can be safely connected to TS mono jack plug
Band Pass Filter: 50Hz to 15kHz
Loudspeaker Drive Unit: 8cm (3.3") full range, high efficiancy, 10 watt, 130 to 20000Hz
Inband Calling Frequency: 20kHz
Duration Of Signal: 2 seconds
Compatibility: All Glesnound Beatrice units and Studio Technologies
Mains Voltage: 100 to 240 VAC +/-10%
Mains Frequency: 50 to 60Hz
Power Over Ethernet (PoE): 48 Volts
Consumption: 8 Watts
Redundancy: Mains and PoE are dioded together for glitch free redundancy
Mechanics: All aluminium with laser etched anodised panels and light textured black powder coated sides
Size: 214 x 172 x 41 mm (W x D x H)
Weight: 1.1Kg (2.42lb)
Shipping Weight: 2.6Kg
Shipping Size: 61 x 41 x 17cms
Shipping Carton: Rugged export quality cardboard carton
Handbook: Physical A5 (Download .pdf also available)
Network Cable: 2 meter RJ45 to R45 cable
The name Beatrice was chosen for our intercom range as she was the love of Dante Alighieri:
‘Dante had fallen in love with another, Beatrice Portinari (known as Bice), whom he first met when he was only nine.’
We hope that you to fall in love with Beatrice.
The Beatrice D4 has been tested with and works with Dante Domain Manager.
As standard the Beatrice D4 is supplied with a 3 pin XLR/ 6.35mm Jack AND a 5 pin XLR headset interface.
It can however be ordered with a 4 pin headset interface instead.
Part numbers are:
Beatrice D4 (5 Pin XLR)
Beatrice D4-X4 (4 Pin XLR)
Wiring for the headset interfaces are to common standards as detailed below, it maybe possible to provide other custom wiring configurations if required, please email firstname.lastname@example.org with your requirements.
Beatrice D4 Wiring Info

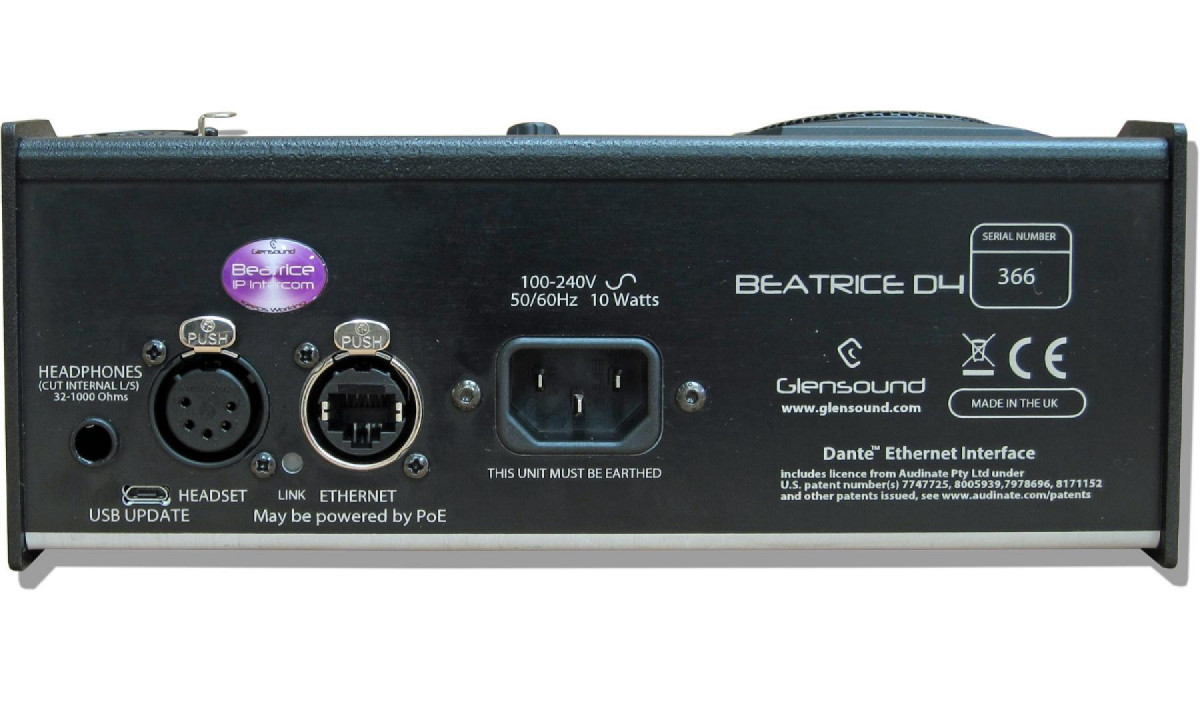

Connector type: 5 Pin XLR Socket (female XLR fitted suitable for mating with cable mounted male)
PIN 1: Mic -
PIN 2: Mic +
PIN 3: GND
PIN 4: Headphone Left
PIN 5: Headphone Right
Beatrice D4-X4 Wiring Info
Connector type: 4 Pin XLR Plug (male XLR fitted suitable for mating with cable mounted female)
PIN 1: Mic - (Mic GND)
PIN 2: Mic +
PIN 3: Headphone GND
PIN 4: Headphone +
Please read the manual for installation instructions.
When the Beatrice unit is first turned on the display will briefly show the currently installed firmware version.
The latest Version Of the Firmware is v1.8.3
The download location of this file is:
Audinate Dante® Firmware
As well as the above firmware the Beatrice unit is fitted with an Audinate Ultimo chipset to provide its Dante® audio network interface. We supply special code (a .dnt file) that sets up and makes the chipset work in a way that is compatible with the Beatrice unit.
The latest Version of the Ultimo code is v18.104.22.168
The download location of this file is:
Please note: Copy and paste the above addresses into your browser to download the files. You may see 'page not found' this is because the above addresses are the locations of the files and ther is no web page at that address.
