Signature ADA 2:6G
1 Input, 6 Output Stereo Distribution Amplifier With Gain Controls

Features Description Applications Specification In Stock Downloads Ask a Question

  • 1 x stereo input to 6 x stereo outputs
  • 1 x mono input to 12 x mono outputs
  • 12 x output gain adjusts
  • Electronic I/O balancing
  • Inputs can accept balanced and unbalanced connections
  • Redundant power connection via PS1 Power Station
  • Front or rear mounting
  • Includes rack ears

The Signature ADA 2:6G is a broadcast specification 6 way stereo analogue distribution amplifier, designed to distribute one or two audio channels to multiple destinations.

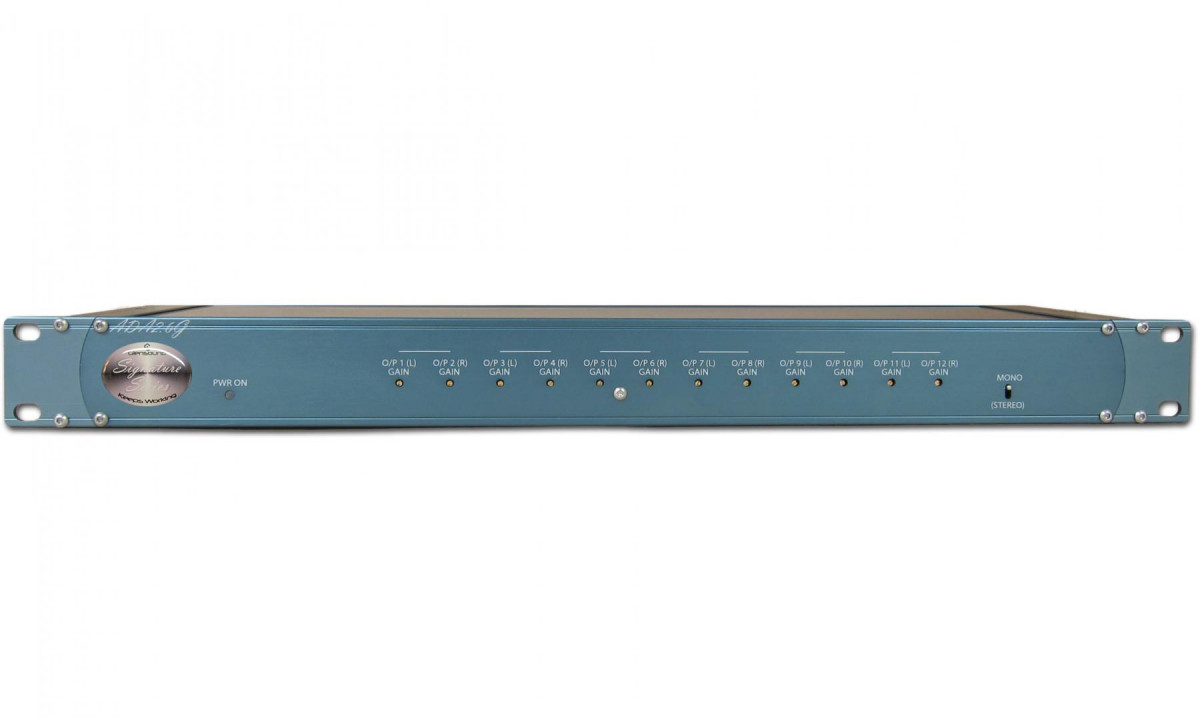

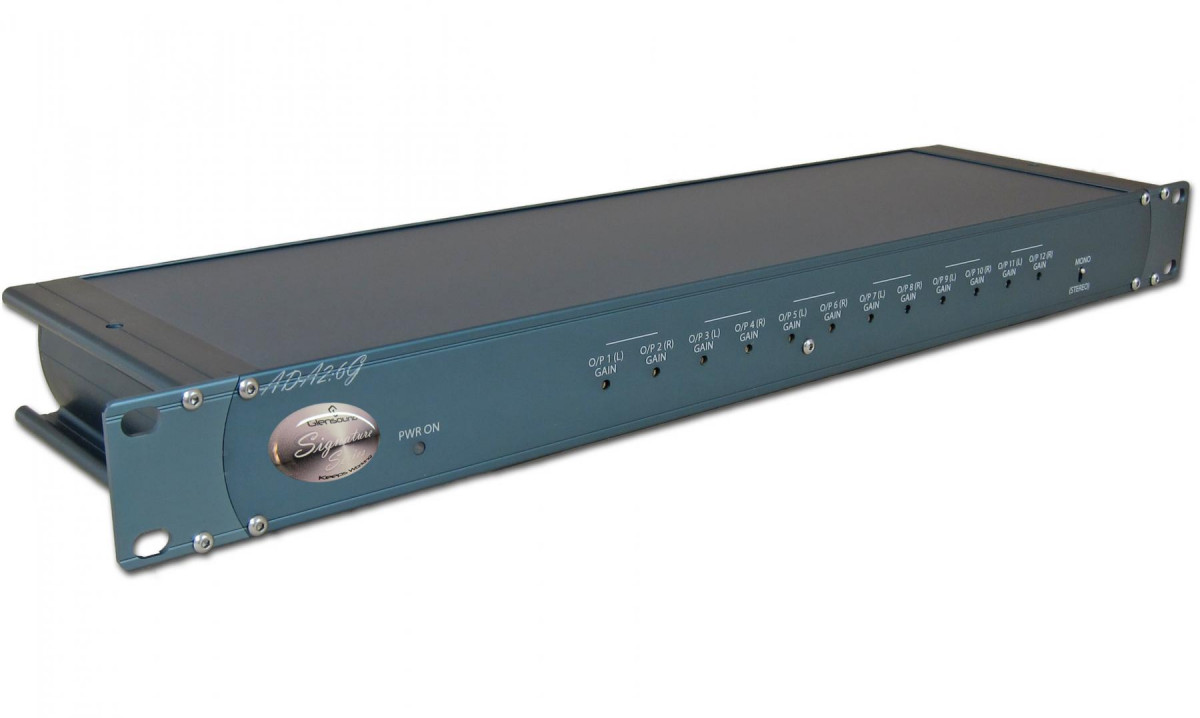

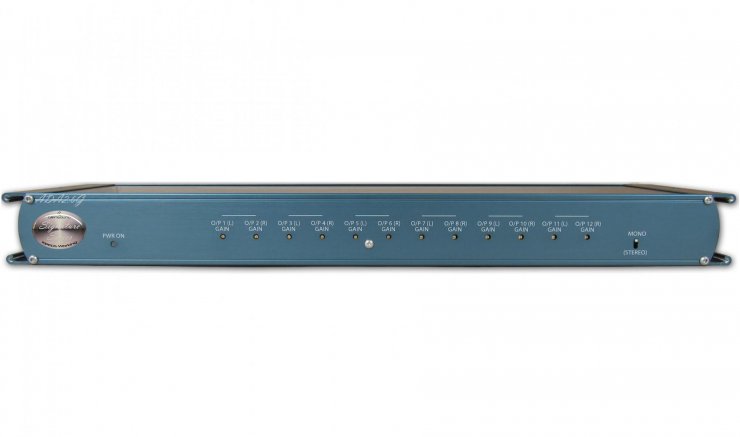

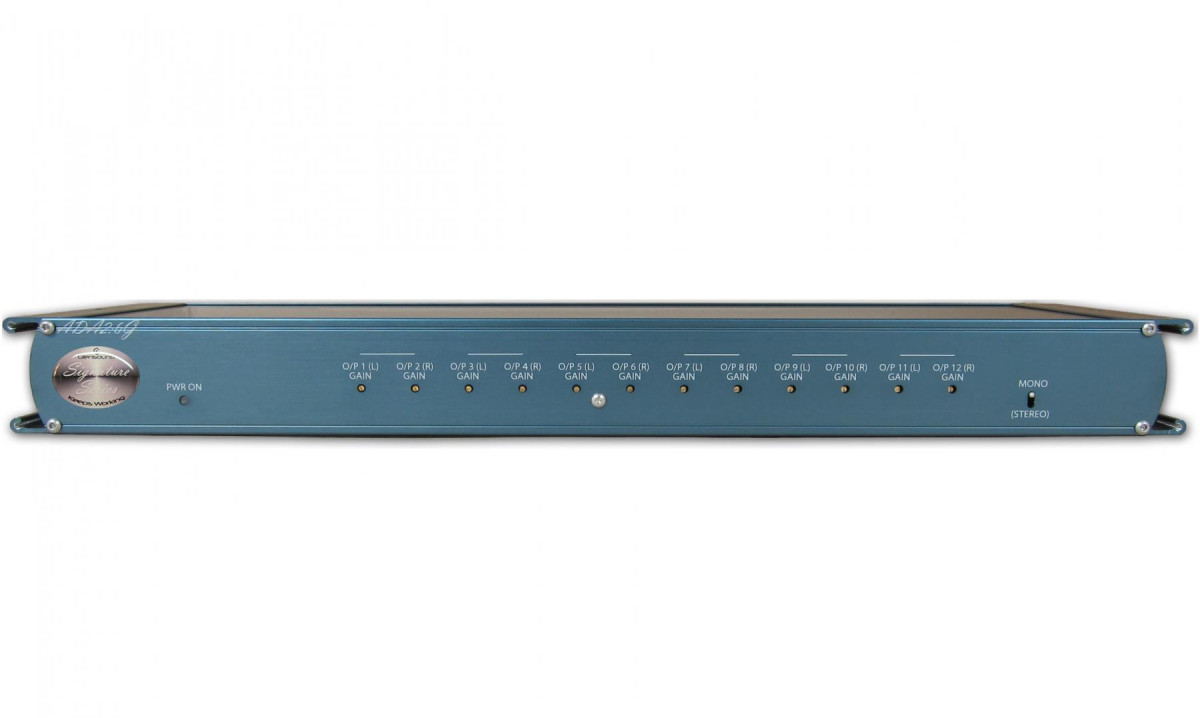

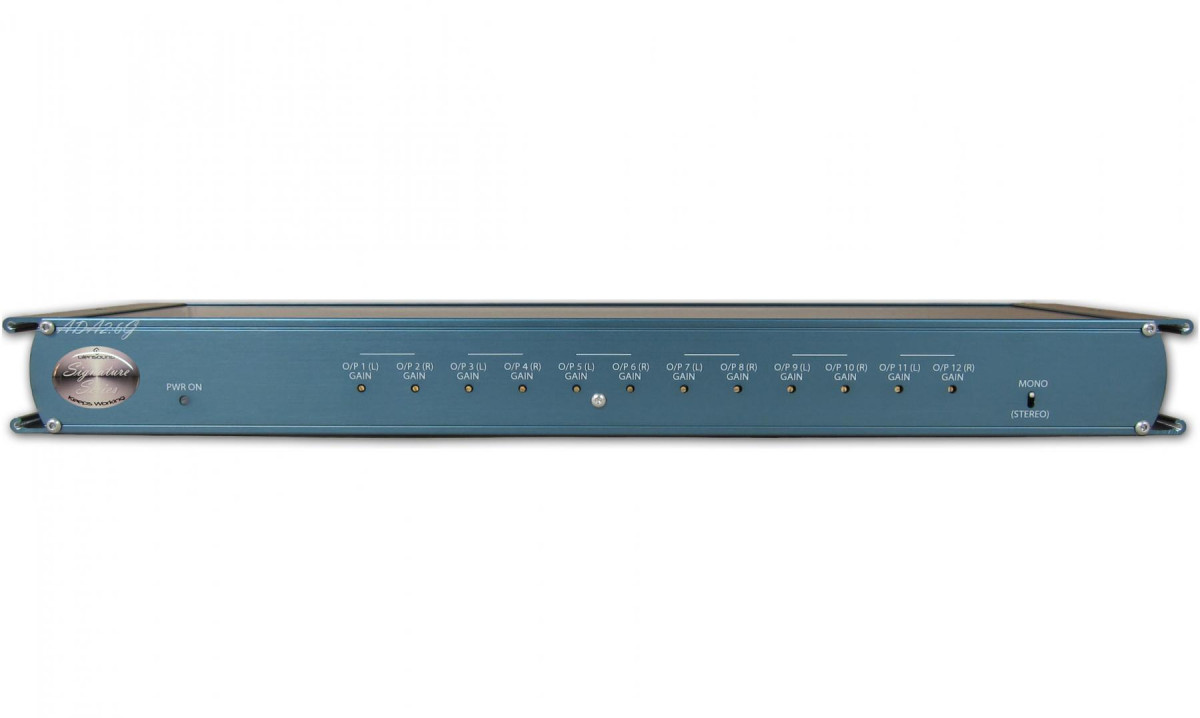

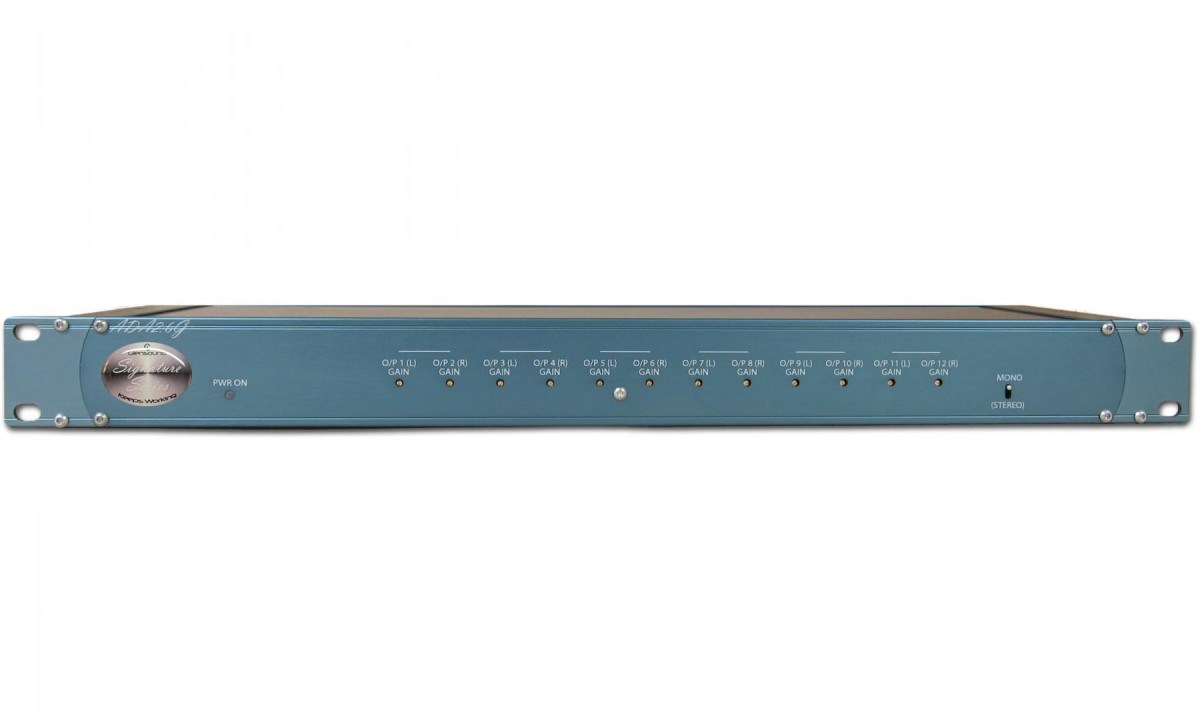

The ADA 2:6G has 1 x stereo input that is distributed to 6 x stereo outputs, each with its own gain control. A front panel toggle switch changes the operation of the unit to a mono distribution amplifier with 1 input and 12 outputs. The mono/ stereo front panel toggle switch is recessed to prevent accidental operation and also provides the user with clear visual indication of the current mode.

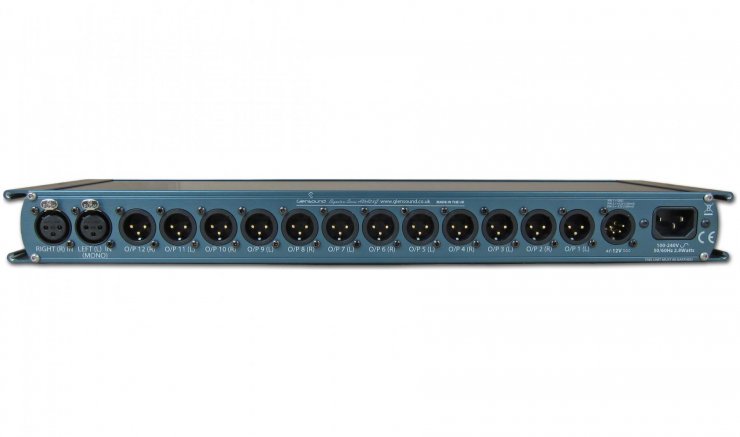

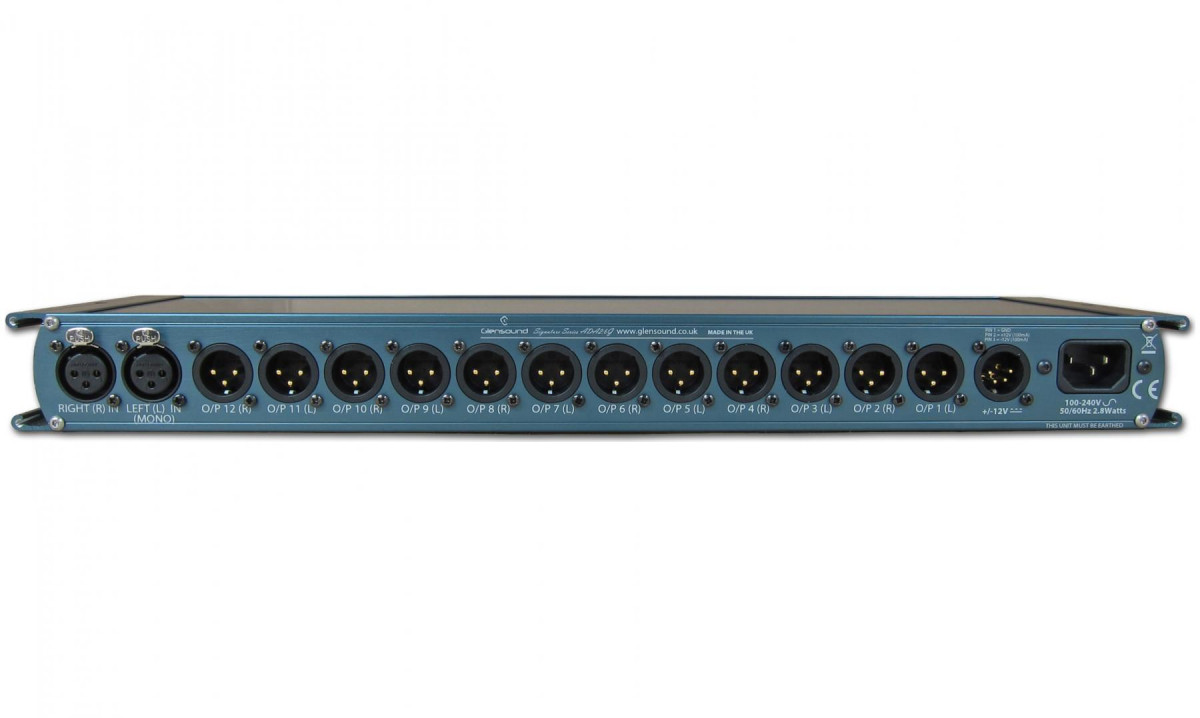

Audio inputs and outputs are electronically balanced on XLRs and can accommodate unbalanced connections if required. The output gains are on front panel multi turn potentiometers (recessed to prevent accidental operation). They provide a wide gain range to cope with the different gain level requirements of broadcast or domestic level equipment.

All outputs are protected, so a short circuit on one will not affect any of the others.

Power is provided by an internal switch mode power supply, with a wide input range. There is also an input for external 12V DC power. The 12V DC input can be connected to the optional Signature PS1 external DC Master Power Station, for situations where a redundant power supply is desirable.

A bright front panel LED indicates that the unit is operational.

Signature Series Standard Features

19" Rack Mount Ears
A Signature unit can rack mount in a 1U 19” rack, regardless of the size of the unit.  Rack ears are included as standard with every unit.

Front Or Rear Mounting
A Signature unit can be rack mounted via the front panel or if it is more convenient, via the rear panel by simply swapping the rack ears over.

Side Wings For Flat Surface Mounting
A Signature unit has side wings with mounting holes at the top and bottom, allowing flush fixing from above OR underneath.

Internal Switch Mode AC Power Supply
A Signature unit has an internal switch mode AC power supply, allowing worldwide power connections from 100-240V via an IEC socket.

12V DC Power Connection
All Signature units (except PS1) have a 4 pin XLR ±12V DC  socket for connection to the PS1 Power Station.  This can act as the primary or backup power source.

Quick Find Manual
A Signature unit has a QR code attached.  This can be scanned to simply and quickly locate the manual and technical information.

Other

  • Neutral colour scheme to complement Equipment Scheme
  • Rack screws included
  • Modern design

May be delivered with a black finish

RADIO STATION CTA
Six Output Stereo Distribution

The main stereo programme audio from a radio station needs to be distributed across multiple platforms. The output from the desk or automation system no longer just heads off to the transmitter. The audio must be distributed across all of the relevant services that require a connection of the original programme audio.

In this example, the Signature ADA 2:6G provides 6 stereo outputs of the main programme audio. One output connects to the transmitter as the main FM broadcast feed. As multiple guest headphones are required in the studio, another output connects to a separate headphone distribution amplifier. This station also broadcasts online, so another output connects to a PC to become the internet broadcast stream. Local monitoring is required, so one feed goes to the local monitoring system. The transmitter B chain is on ISDN, so one output goes to an ISDN codec. And the final output connects to another PC that manages all of the stations logging requirements.

All of these distributed sources may require different levels. With the Signature ADA 2:6G, each distributed output can have a different gain level set so that it matches the incoming level requirements of each source. For example, the feed that goes to the FM transmitter link will be connected to professional equipment expecting normal line up levels. However, the station logging may be on a domestic grade PC and require a much higher input level to be sent to it. Using the ADA 2:6G, a separate gain level can be set for each output.

It’s very easy to see why multiple outputs of the main programme audio are required, with different gain levels, in a typical radio station environment.


COMMENTARY FEED IN IBC
Twelve Output Mono Distribution

A single channel mono feed is connected to the Signature ADA 2:6G. This could be the master programme mix output from a host commentary system at a sports stadium. This needs to be distributed to all the relevant broadcasters who want to take the host commentary audio. Twelve outputs from the ADA 2:6G are available, which all contain the original audio, and are available to distribute to all of the relevant 12 broadcasters. As the required levels may be different for each broadcaster the gain can be adjusted independently for each output.





AUDIO
Frequency Response: Input Impedance:  >30k Ohm
Common Mode Rejection: Circa -63dB @ lineup
Maximum Input Level: >+28dB
Distortion: 0.013% THD @ 100Hz, 1kHz & 10kHz Reference to +8dBu output
Input Type:  Electronically balanced (can be wired Unbalanced) on Neutrik 3 pin XLR socket
Gain Range:  -10dB to +15dB on each output
Output Impedance:  =Output Type:  Electronically balanced (can be wired unbalanced) on Neutrik 3 pin XLR plug
Maximum Output Level:  +24dBu
Noise:  -89dB @ line up unweighted RMS (22Hz to 22kHz)

POWER
Mains Input:  Filtered IEC, 100 to 240VAC 47 - 63Hz
Internal Mains Fuse:  20mm 1A Anti Surge
DC Input:  4 Pin Neutrik XLR plug +/- 12V
DC Consumption:  +12V 100mA, -12V 100mA
AC Consumption: 2.8 Watts @ 230VAC

PHYSICAL
Size:  445 x 123 x 44mm (LxDxH) no rack ears, 482mm 19” (1RU) with rack ears
Weight:  1.16kg
Shipping Weight: 2.6kg
Shipping Carton:  Rugged export quality cardboard carton 610 x 420 x 130mm LxDxH
Mechanics:  All aluminium construction, anodised and laser etched
