Ppm002 Front BAN
  • Transformer balanced inputs (on rear panel XLRs)
  • Zero Level input for PPM 4
  • Peak indication LEDs
  • 28 LEDs per channel
  • Powered from external +/- 12V psu (connection on rear panel XLR)
  • Stable 'desktop' design

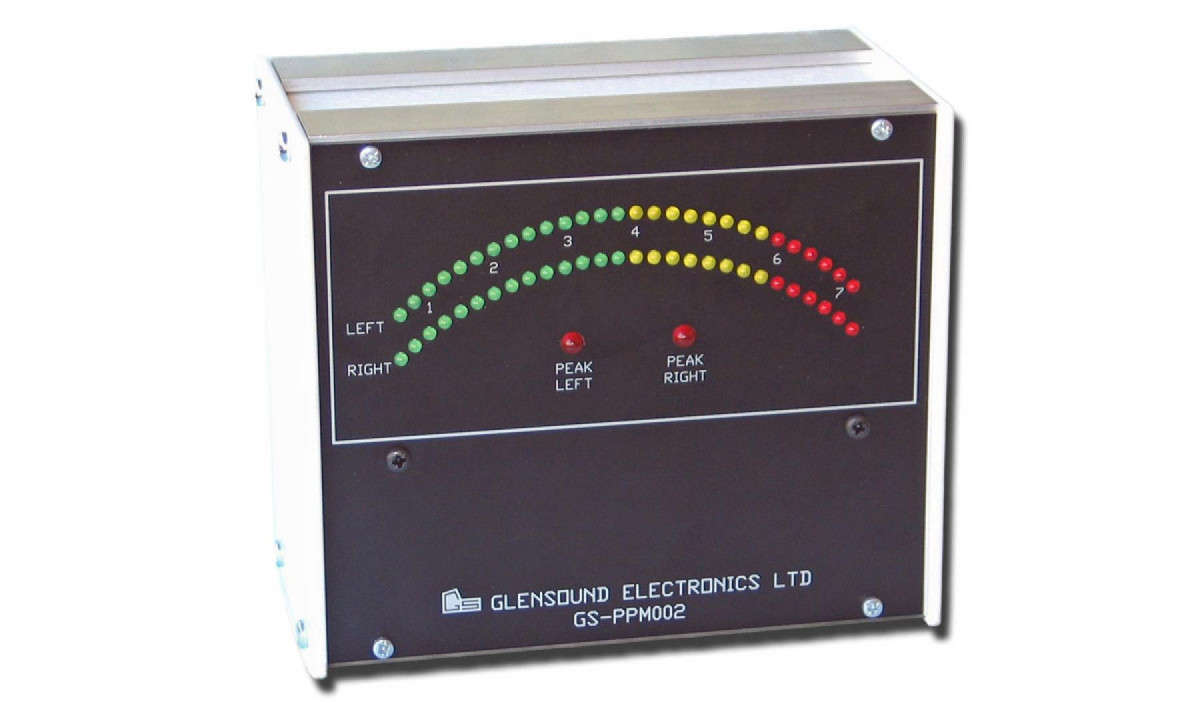

This small and robust PPM offers an interesting take on a standard 'straight' LED PPMs.  The LEDs follow the arc of a moving coil meter giving a very familiar feel to the user of a more traditional meter - but without the expense.

  • 2 x 28 LED PPMs
  • PPM balistics
  • 3mm high brightness PPM LEDs
  • 5mm high brightness 'PEAK' LEDs
  • Each LED indicates a 2dB step
  • PPM Range -28 to + 26dB
  • Scale BBC PPM 1 - 7 (Other scales available on request)
  • PPM4 = 0dB
  • Transformer Balanced inputs
  • Audio inputs on 3 pin Neutrik XLR sockets
  • Size: 146 x 82 x 124 mm (WxDxH)
  • Weight: 820g
  • External PSU (Block type 230v with IEC mains input) (Supplied)
  • External DC input on 4 pin neutrik XLR plug
  • External DC input +/-12 volts 1.7 watts
